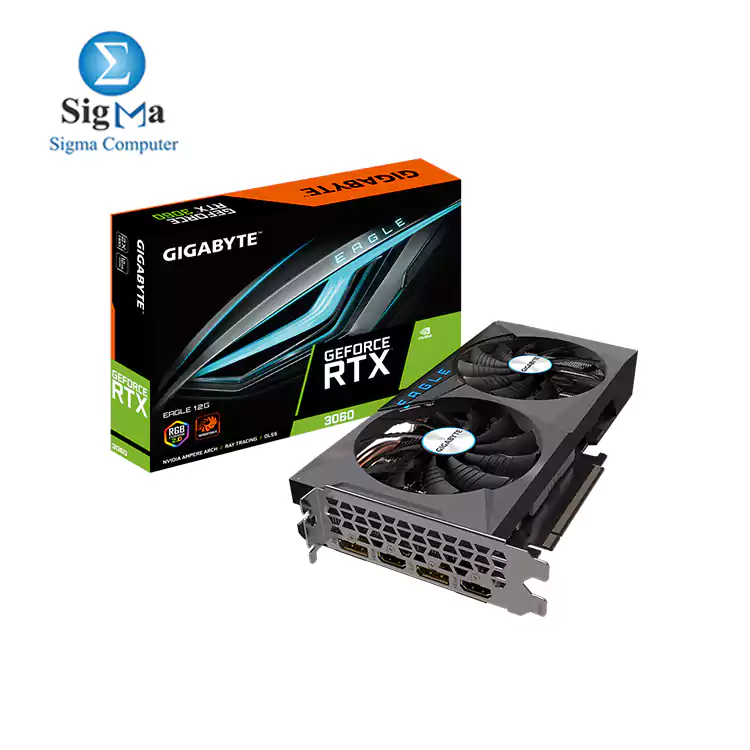

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
Limited Hash Rate version

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0
Protection back plate
Limited Hash Rate version

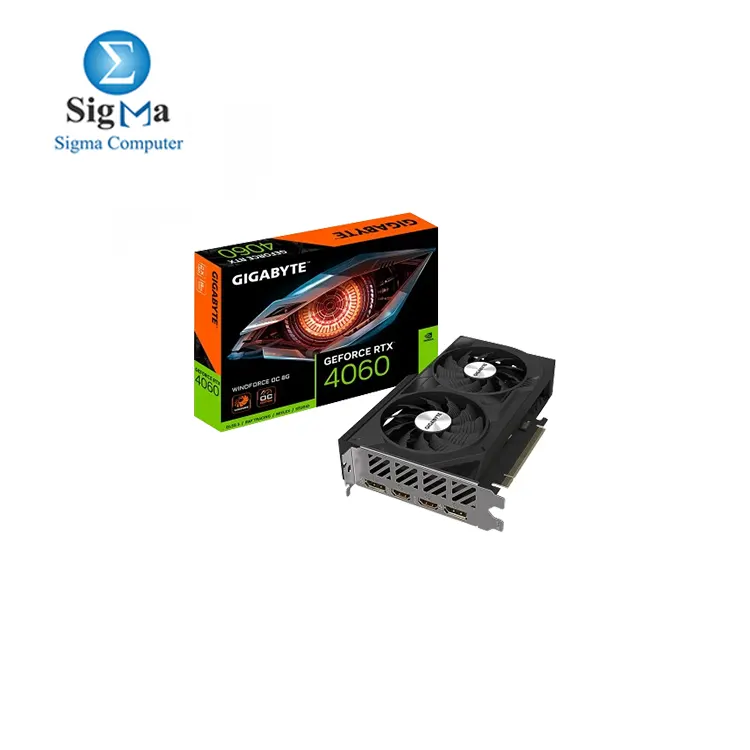

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance

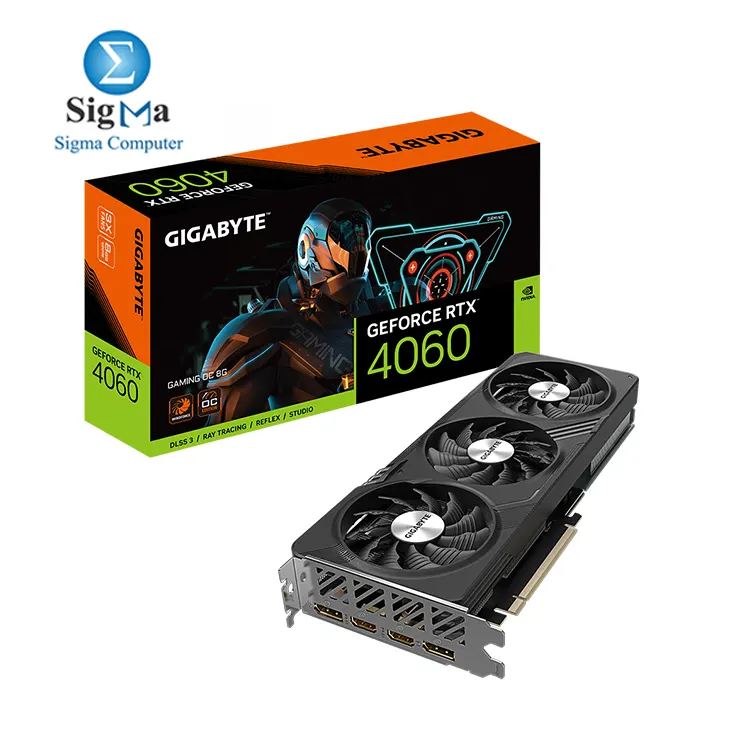

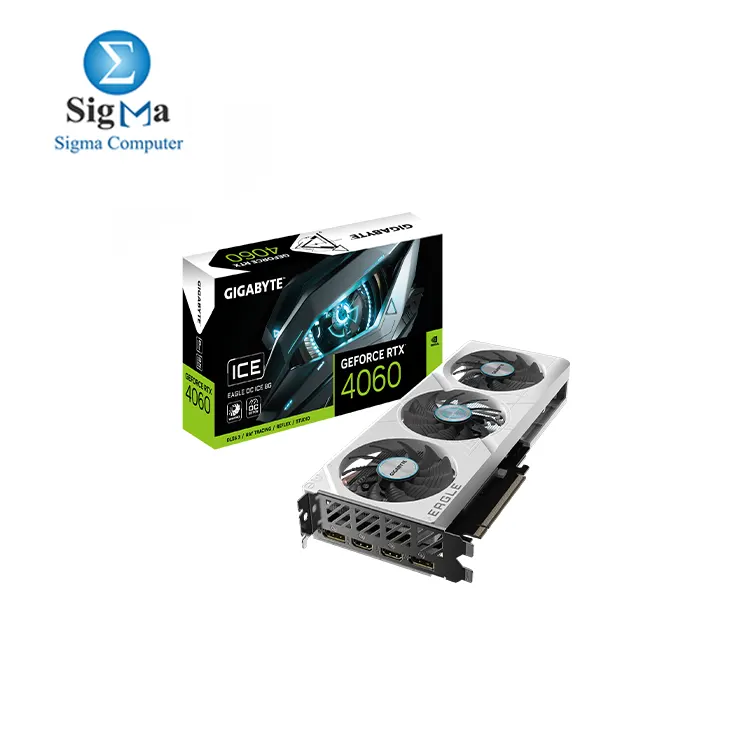

Powered by GeForce RTX™ 4060
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance

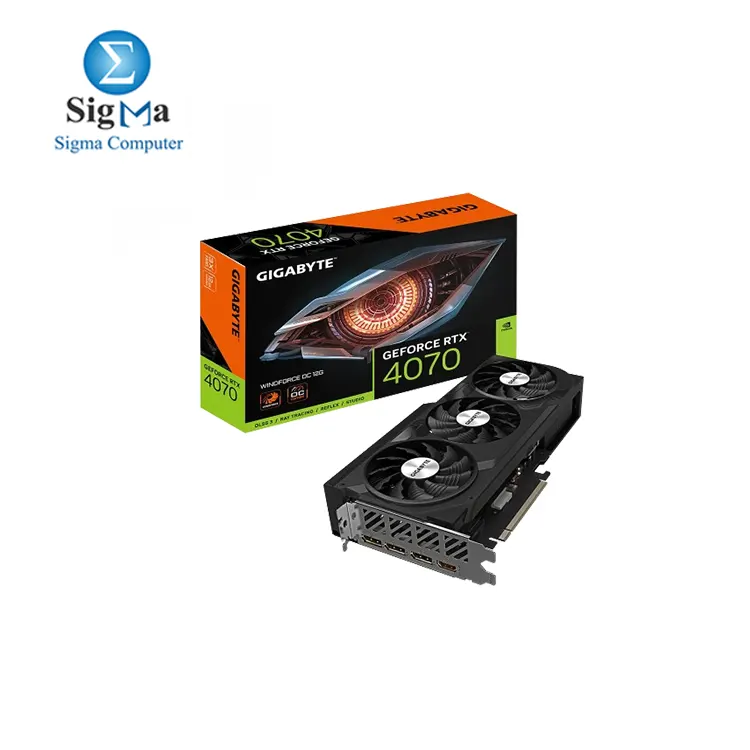

Powered by GeForce RTX™ 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

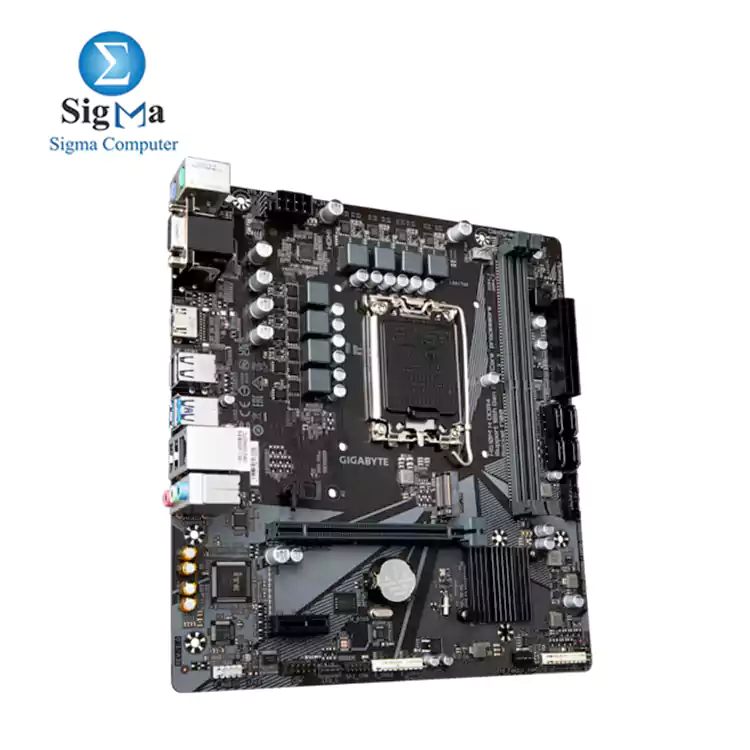

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR4：2*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：HDMI, D-Sub

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
M.2 Thermal Guard：To Ensure M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN

upports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Twin 16*+1+１ Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 5.0 x16 Slot with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s

Supports 13th/12th Gen Intel® Core™ Series Processors​
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​
GbE LAN with Bandwidth Management​
NVMe PCIe 3.0 x4 M.2​
High Quality Audio Capacitors and Audio Noise Guard​
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
GIGABYTE APP Center, Simple and Easy Use​
Anti-Sulfur Resistors Design​

PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

Supports 13th/12th Gen Intel® Core™ Series Processors​
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs​
GbE LAN with Bandwidth Management​
NVMe PCIe 3.0 x4 M.2​
High Quality Audio Capacitors and Audio Noise Guard​
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
GIGABYTE APP Center, Simple and Easy Use​
Anti-Sulfur Resistors Design​

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Dual BIOS
Protection back plate

The WINDFORCE cooling system features two 100mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4090
Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE cooling system
LCD Edge View
RGB Fusion
Dual BIOS
Protection metal back plate

GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

GIGABYTE MOTHERBOARDS' UN-THROTTLED PERFORMANCE IS GUARANTEED BY INNOVATIVE AND OPTIMIZED THERMAL DESIGN TO ENSURE THE BEST CPU, CHIPSET, SSD STABILITY AND LOW TEMPERATURES UNDER FULL LOAD APPLICATION AND GAMING PERFORMANCE.

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Ultra Durable
 Main Japanese capacitors
 Enhanced thermal solution
 120mm smart hydraulic bearing (HYB) fan
 OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact design

Main Japanese capacitors
Enhanced thermal solution
140mm double ball bearing fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size

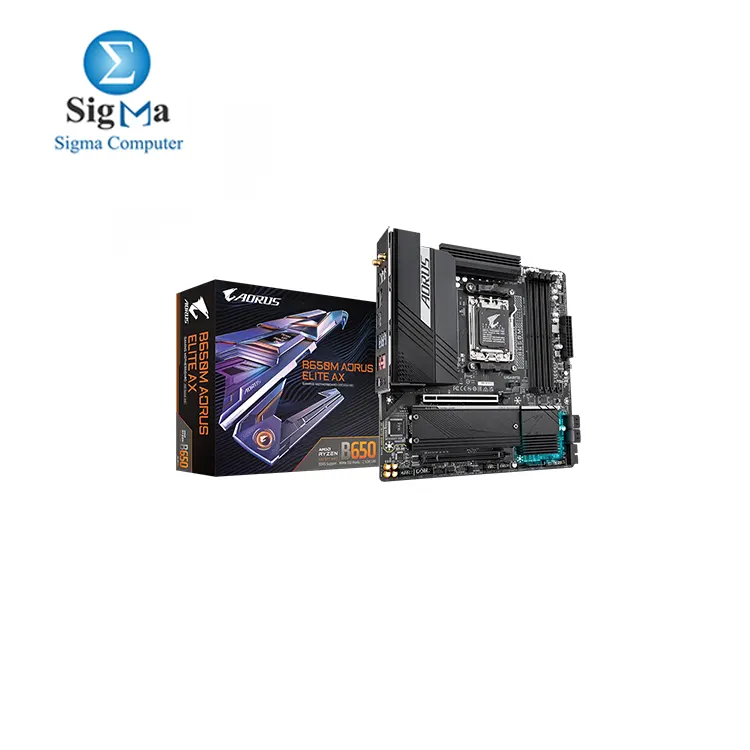

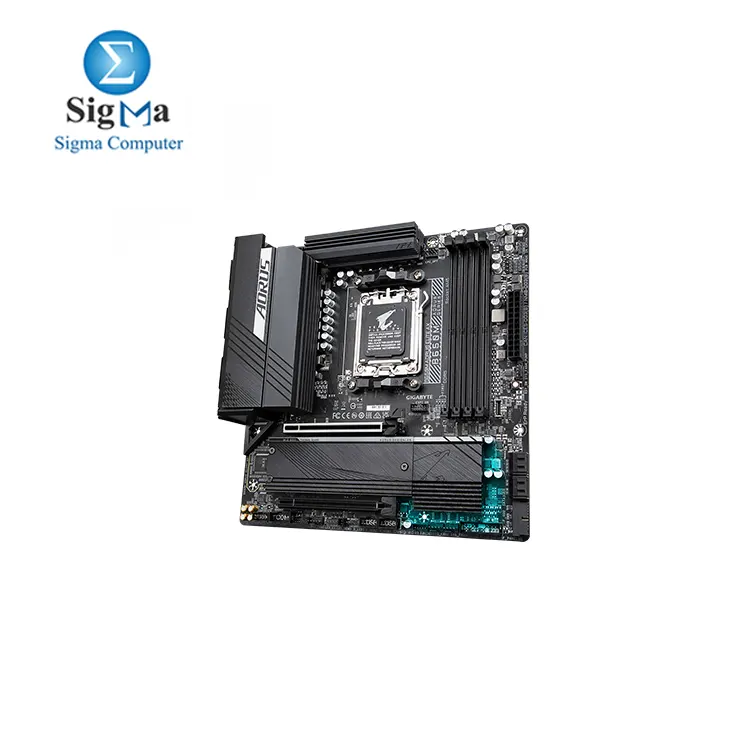

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Unparalleled Performance：Twin 14*+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Fully Covered Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 14*+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Fully Covered Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

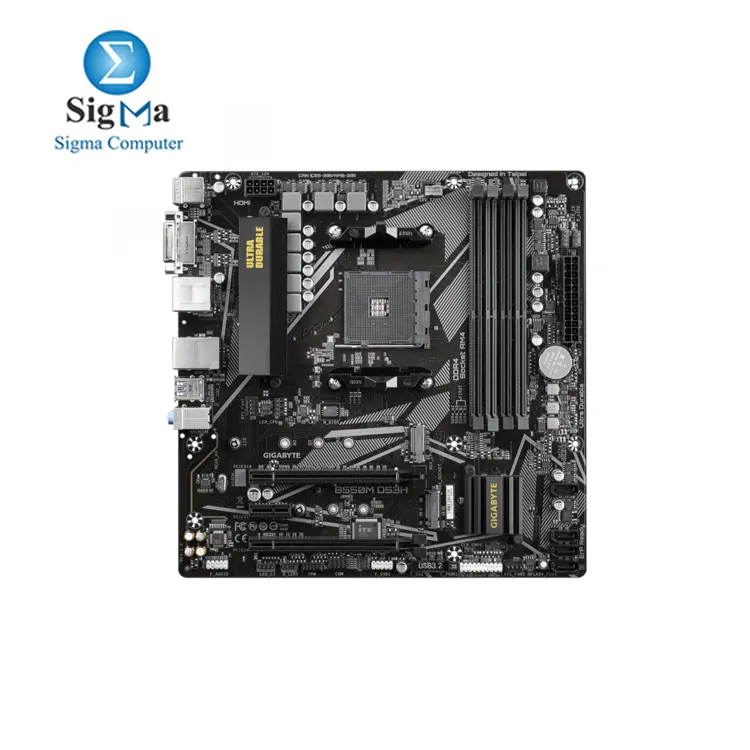

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
Realtek GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
RGB FUSION 2.0 support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

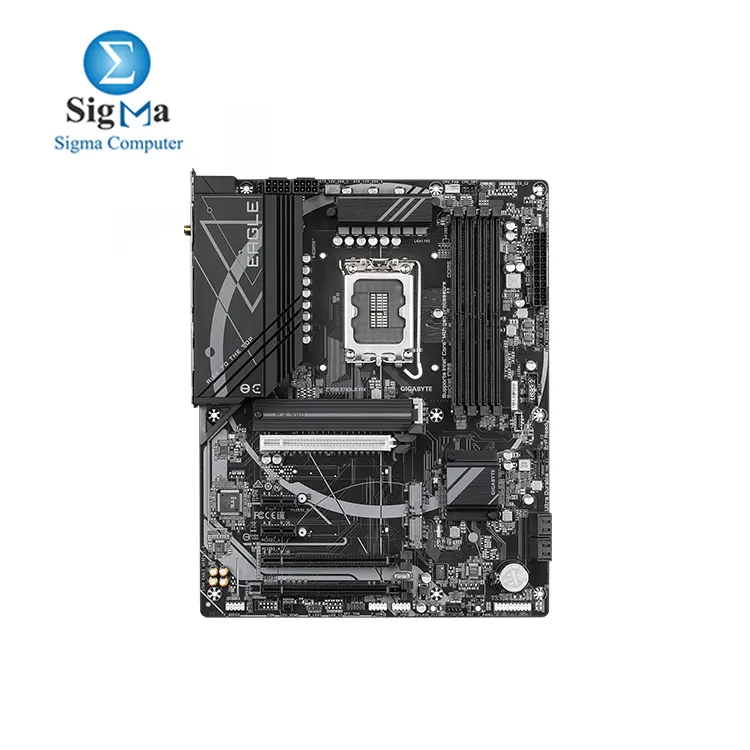

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Twin 16*+1+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

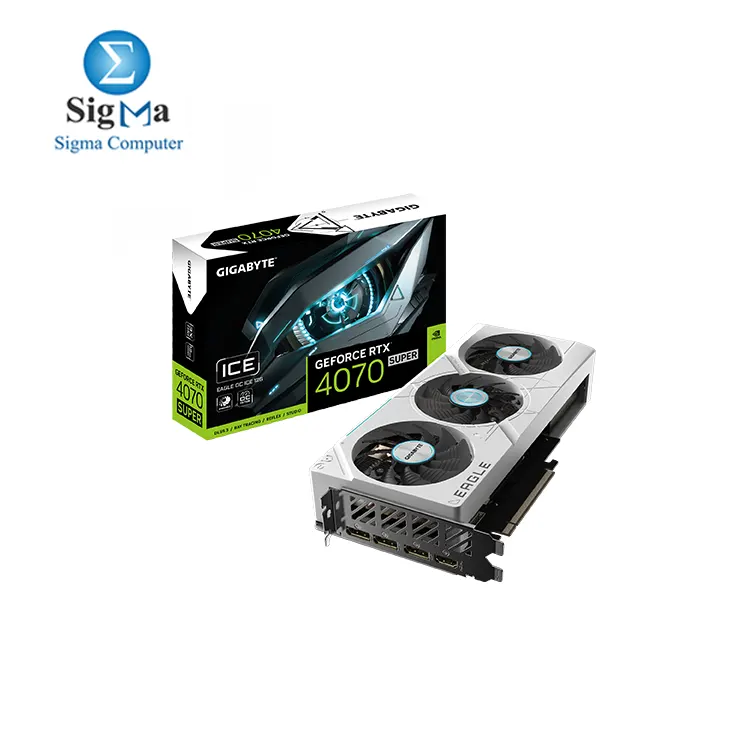

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
LCD Edge View
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX® 4090
Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：8+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance

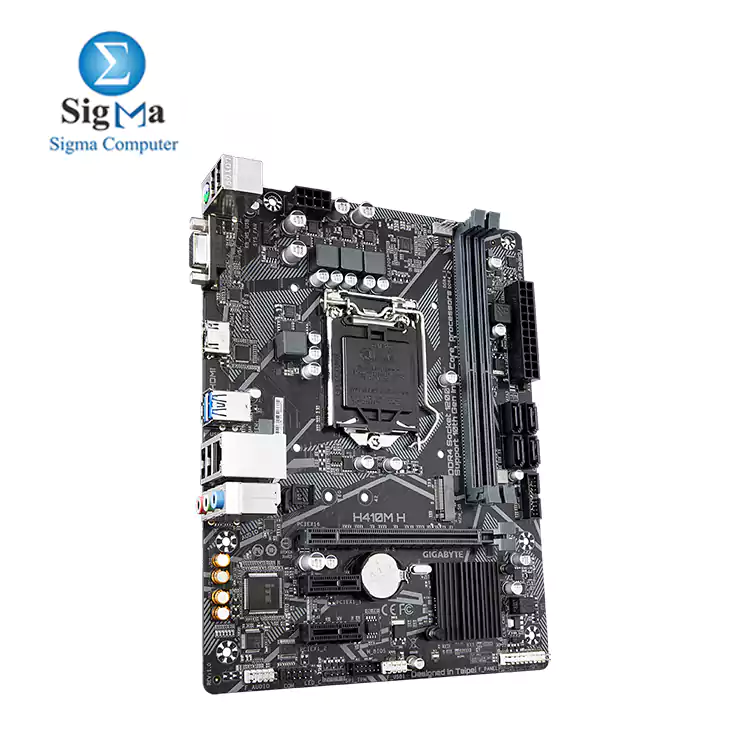

Supports 10th Gen Intel®Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Gaming GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4080 16GB
Integrated with 16GB GDDR6X 256-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070 Ti
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4090
Integrated with 24GB GDDR6X 384-bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：Front USB-C® 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：Rear USB-C® 20Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
M.2 Thermal Guard：To Ensure M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR4：2*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Twin 16*+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs with XMP Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
Fast Networks：Intel® 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI

Features
Powered by GeForce RTX™ 2060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
Protection back plate

Core Clock
1680 MHz (Reference card: 1650 MHz)

Radeon™ RX 6500 XT
Core Clock
Boost Clock* : up to 2825 MHz (Reference card: 2815 MHz)
Game Clock* : up to 2685 MHz (Reference card: 2610 MHz)
Stream Processors
1024
Process Technology
6 nm
Memory Clock
18000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit

GeForce RTX™ 3080 Ti
Core Clock
1665 MHz
CUDA® Cores
10240
Memory Clock
19000 MHz
Memory Size
12 GB
Memory Type
GDDR6X

Graphics Processing
Radeon™ RX 6900 XT
Core Clock
Boost Clock* : up to 2365 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2135 MHz (Reference card: 2015 MHz)
Stream Processors
5120
Process Technology
7 nm
Memory Clock
16000 MHz
Memory Size
16 GB
Memory Type
GDDR6

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Memory Type
DDR5 UDIMM
Capacity
32GB kit (2x16GB)
Multi-Channel Kit
Dual Channel Kit
SPD Latency
40-40-40-77
SPD Speed
4800MT/s
SPD Voltage
1.1V
Tested Latency
40-40-40-80
Tested Speed
5200MT/s
Tested Voltage
1.25V
Heatspreader Color
AORUS Gray
Package Memory Pin
288
Performance Profile
XMP 3.0
Warranty
Limited Lifetime

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.

Supports 11th and 10th Gen Intel®  Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
Realtek GbE LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
Fast 2.5 GbE LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections ​​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
PCIe x16 EZ-Latch with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Intel® Z690 Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5 GbE LAN, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage* and Tantalum Polymer Capacitor​
Ultra Performance VRM Heatsinks
Fast 2.5 GbE LAN with Bandwidth Management
3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* 8+8 phases parallel power design
* Power Stage maximum current capacity is based on VCORE Phase.

CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z790 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Twin 16*+1+１ Phases Digital VRM Solution
Dual Channel DDR4：4*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 5.0 x16 Slot with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN
Extended Connectivity：HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 8+8 phases parallel power design

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
8+1+1 Hybrid Digital VRM Design with DrMOS*​​
Fully Covered Thermal Design with High Coverage VRM Heatsinks​
Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard​​
SuperSpeed USB 3.2 Gen 2 Type-C® delivers up to 10Gb/s transfer speeds​
Pre-installed IO Shield for easy and quick installation​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

NVIDIA GeForce RTX 4080 Gaming Overclocked Triple Fan 16GB GDDR6X PCIe 4.0 Graphics Card
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 11 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 2X AI performance
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4080 16GB
Integrated with 16GB GDDR6X 256-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

NVIDIA Ada Lovelace Streaming Multiprocessors:
Up to 2x performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4080 16GB
Integrated with 16GB GDDR6X 256-bit memory interface
WINDFORCE Cooling System
LCD Edge View
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

Supports 10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Gaming GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All New GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GIGABYTE Gaming LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
WIFI 802.11ac & BT with AERO Antenna​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections​​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
8+1+1 Hybrid Digital VRM Design with DrMOS*​
Fully Covered Thermal Design with High Coverage VRM Heatsinks​
Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
USB 3.2 Gen 2 Type-C® for Fast and Versatile Connections​
Pre-installed IO Shield for easy and quick installation​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​
​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GIGABYTE Gaming LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
HDMI / DVI-D / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

The Gigabyte H610M H DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The Gigabyte H610M H DDR4 motherboard comes

GET READY FOR AMD RYZEN™ 3000-SERIES GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems

Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
GIGABYTE™ UEFI BIOS
All New GIGABYTE™™ APP Center, Simple and Easy Use

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna​
Fast 2.5 GbE LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard​​
Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections ​​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Graphics Processing
Radeon™ RX 6900 XT
Core Clock
Boost Clock* : up to 2285 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2050 MHz (Reference card: 2015 MHz)
Stream Processors
5120
Process Technology
7 nm
Memory Clock
16000 MHz
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
512 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320

Graphics Processing
GeForce RTX™ 3050
Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA® Cores
2560
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
224 GB/s

New high performance pump efficiently dissipates heat from high end CPUs.
Unique 60x60mm circular full color LCD, video play/ custom text support.
Adjustable screen orientation can be rotated 330 degrees.
High performance, low-noise level, Graphene Nano Lubricant ARGB fans.
Supports RGB FUSION 2.0 synchronization with other AORUS devices.
Universal design for fan & pump RPM control, supports all MB brands.

New high performance pump efficiently dissipates heat from high end CPUs.
Unique 60x60mm circular full color LCD, video play/ custom text support.
Adjustable screen orientation can be rotated 330 degrees.
High performance, low-noise level, Graphene Nano Lubricant ARGB fans.
Supports RGB FUSION 2.0 synchronization with other AORUS devices.
Universal design for fan & pump RPM control, supports all MB brands.

New high performance pump efficiently dissipates heat from high end CPUs.
Unique 60x60mm circular full color LCD, video play/ custom text support.
Adjustable screen orientation can be rotated 330 degrees.
High performance, low-noise level, Graphene Nano Lubricant ARGB fans.
Supports RGB FUSION 2.0 synchronization with other AORUS devices.
Universal design for fan & pump RPM control, supports all MB brands.

 Supports 12th Gen Intel® Core™ Series Processors​
• Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
• PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
• Go further without more cables by VisionLINK I/O design
• Brings a speed network experience with Intel® 2.5GbE LAN
• WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
• No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
• 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
• Advanced thermal architecture design for the better thermal dissipation
• Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
Fast 2.5 GbE GAMING LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
AMP-UP Audio with ALC1200 and WIMA Capacitors
Blazing Fast 2.5GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

Supports AMD Ryzen™ 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
Anti-Sulfur Resistors Design
Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
CEC 2019 Ready, Save Power with a Simple Click

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
DDR5 MEMORY Design with Shielded Memory Routing
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
SuperSpeed USB 3.2 Gen 2x2 Type-C® delivers up to 20Gb/s transfer speeds
Pre-installed IO Shield for easy and quick installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.
* 6+6 phases parallel power design

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
SuperSpeed USB 3.2 Gen 2x2 Type-C® delivers up to 20Gb/s transfer speeds
Pre-installed IO Shield for easy and quick installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.
* 6+6 phases parallel power design

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing ​
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* 8+8 phases parallel power design

• Supports 12th Gen Intel® Core™ Series Processors​
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
• Go further without more cables by VisionLINK I/O design
• Brings a speed network experience with Intel® 2.5GbE LAN
• WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
• No Hassle Connection with front USB 3.2 Gen 2x2 Type-C®
• 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
• Advanced thermal architecture design for the better thermal dissipation
• Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna​
Fast 2.5 GbE LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard​​
Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections ​​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Memory Clock
18000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit
Memory Bandwidth (GB/sec)
144 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320

Graphics Processing
GeForce RTX™ 3050
Core Clock
1777 MHz
CUDA® Cores
2560
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
224 GB/s

Supports 10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Gaming GbE LAN with Bandwidth Management
HDMI /DVI-D/D-Sub Ports for Multiple Display
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Supports 11th and 10th Gen Intel®  Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
3 Display Interfaces Support
High Quality Audio Capacitors and Audio Noise
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage* and Tantalum Polymer Capacitor​
Ultra Performance VRM Heatsinks
Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
Fast 2.5 GbE LAN with Bandwidth Management
3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Supports 12th Gen Intel® Core™ Series Processors​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​
Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
Shielded Memory Routing to Avoid Interference
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks​
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management​
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Supports 12th Gen Intel® Core™ Series Processors​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​
6+2+1 Hybrid Digital VRM Design​
Fast 2.5 GbE LAN with Bandwidth Management​
2 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard​
Rear USB 3.2 Gen2 Type-C® for Fast and Versatile Connections​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
DDR5 XTREME MEMORY Design with Shielded Memory Routing
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen 2x2 Type-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

- AORUS Z490 ULTRA MOTHERBOARD with Direct 12 1 Phases Digital VRM Design 10th Gen Intel
- Intel Core i9-10900F Desktop Processor 10 Cores up to 5.2 GHz Without Processor Graphics LGA 1200
- Palit NVIDIA GeForce RTX 3050 8GB GDDR6 LHR Graphics Card

Panel Size (diagonal)
31.5" SS IPS
Display Viewing Area (HxV)
698.112 x 392.688 (mm)
Panel Backlight/ Type
Edge
Display Surface(non-glare/ glare)
Non-glare
Color Saturation
94% DCI-P3/120% sRGB
True Resolution
2‎560 x 1440 (QHD)
Pixel Pitch
0.273 (H) x 0.273 (V) (mm)
Brightness
350 cd/m2 (TYP)
Contrast Ratio
1000 : 1 (TYP)
Viewing Angle
178°(H)/178°(V)
Display Colors
8 bits
Response Time
1ms (MPRT) / 1ms (GTG)
Refresh Rate
165Hz (OC 170Hz)
HDR
VESA Display HDR400/HLG
Flicker-free
Yes
Connectivity
HDMI 2.0 x2, Display port 1.4 x1
Earphone Jack
Yes (Audio ESS SABRE HiFi)
Unique Features
OSD Sidekick
Active Noise Cancelling (ANC) 2.0
Aim Stabilizer Sync
Black Equalizer 1.0
Dashboard
Crosshair
Timer
Counter
Eagle Eye
PiP/PbP
Auto-Update
KVM
RGB Fusion 2.0
6 axis Color Control
Smart OD
Power Type
Build-in
AC Input Max
110W
Power Off Mode
0.3W
Voltage
AC 100V~240V
Tilt(angle)
-5∘~+21∘
Swivel(angle)
-20∘~+20∘
Pivot(angle/direction)
+90∘
Height Adjustment (mm)
130mm
VESA Wall Mounting(mm)
100*100mm
Kensington lock
Yes
Phys. Dimension with Stand(WxHxD)
717.6*598.3*283mm
Phys. Dimension w/o stand  (WxHxD)
717.6*424.3*71.3mm
Box Dimension (WxHxD)
1000*585*198mm
Net Weight with stand (Esti.)
10.8kg
Net Weight without stand (Esti.)
7.6kg
Gross Weight (Esti.)
15.2kg
Accessories
Power cable/HDMI cable/DP cable/USB cable/Type C cable/QSG

Graphics Processing
GeForce® GTX 1650
Core Clock
1695 MHz (Reference Card: 1665 MHz)
CUDA® Cores
896
Memory Clock
8002 MHz
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
128 GB/s
Card Bus
PCI-E 3.0 x 16
Digital max resolution
7680x4320@60Hz
Multi-view
3
Card size
L=166.9 W=69 H=39 mm
PCB Form
Low Profile
DirectX
12
OpenGL
4.6
Recommended PSU
300W
Power Connectors
N/A
Output
DisplayPort 1.4 *1
HDMI 2.0b *1
Dual-link DVI-D *1
SLI Support
No
Accessories
1. Quick guide

Graphics Processing
GeForce RTX™ 3050
Core Clock
1822 MHz (Reference Card: 1777 MHz)
CUDA® Cores
2560
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
224 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=282 W=117 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a *2
HDMI 2.1 *2
Accessories
Quick guide

Graphics Processing
Radeon™ RX 6900 XT
Core Clock
Boost Clock* : up to 2365 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2135 MHz (Reference card: 2015 MHz)
Stream Processors
5120
Process Technology
7 nm
Memory Clock
16000 MHz
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
512 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
Card size
L=322 W=140 H=60 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
850W
Power Connectors
8 pin*3
Output
DisplayPort 1.4a *2
HDMI 2.1 *2
Accessories
1. Quick guide

Graphics Processing
Radeon™ RX 6500 XT
Core Clock
Boost Clock* : up to 2825 MHz (Reference card: 2815 MHz)
Game Clock* : up to 2685 MHz (Reference card: 2610 MHz)
Stream Processors
1024
Process Technology
6 nm
Memory Clock
18000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit
Memory Bandwidth (GB/sec)
144 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
2
Card size
L=282 W=114 H=40 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
400W
Power Connectors
6 pin*1
Output
DisplayPort 1.4a *1
HDMI 2.1 *1
Accessories
Quick guide

Graphics Processing
GeForce RTX™ 3070 Ti
Core Clock
1875 MHz (Reference Card: 1770 MHz)
CUDA® Cores
6144
Memory Clock
19000 MHz
Memory Size
8 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
608 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
Card size
L=324 W=142 H=70 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
850W
Power Connectors
8 pin*2 + 6 pin*1
Output
DisplayPort 1.4a *3
HDMI 2.1 *2
HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)
SLI Support
N/A
Accessories
1. Quick guide

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

True 12+2 Phases Digital VRM Solution with 50A DrMOS

Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

Ultra Durable™ PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards

AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR

Blazing Fast 2.5GbE LAN with Bandwidth Management

USB 3.2 Gen2 Type-C™ & HDMI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Pre-installed IO Shield for Easy and Quick Installatio

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector

Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

HDMI, DVI-D, Display Ports for Multiple Display

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Interface
USB 2.0
Activation
Flaretech Optical-Mechanical
Switch Type
Red/Blue
Switch Life
100 Million Strokes
Key Profile
Standard
Travel Distance
4mm
Activation Distance
2mm
Peak Force
Red : 55g +/- 10g
Blue: 55g +/- 10g
Dimension
439(L) x 140(W) x 37(H) mm
17.3(L) x 5.5(W) x 1.5(H) inch

Form Factor: M.2 2280
Interface: PCI-Express 4.0 x4, NVMe 1.4
Total Capacity: 1000GB*
Sequential Read Speed : up to 7000 MB/s**
Sequential Write speed : up to 5500 MB/s**
Wear Leveling, Over-Provision technologies
TRIM & S.M.A.R.T supported
AES-256 Supported
M.2 Thermal Guard XTREME with Nanocarbon coating

Powered by AMD RDNA™ 2 Radeon™ RX 6600 XT
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
Screen cooling
Graphene nano lubricant
RGB Fusion 2.0
Protection metal back plate

CORE CLOCK
Boost Clock* : up to 2607 MHz (Reference card: 2589 MHz)
Game Clock* : up to 2428 MHz (Reference card: 2359 MHz)

Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor
Shielded Memory Routing to Avoid Interference
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
*Power Stage maximum current capacity is based on VCORE Phase.

AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1200 and WIMA Capacitors
Blazing Fast 2.5GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

CPU
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z690 Express Chipset
Memory
Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® ALC1220-VB CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Intel® Z690 GAMING Motherboard with Direct 16+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Fully Covered Thermal Design, 4 x PCIe 4.0 M.2 with Enlarged Thermal Guard, 2.5GbE LAN, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus​

Supports 12th Gen Intel® Core™ Series Processors​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​
Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
Shielded Memory Routing to Avoid Interference
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks​
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management​
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds​
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Panel Size (diagonal)
27” SS IPS
Display Viewing Area (HxV)
596.736 x 335.664 (mm)
Panel Backlight/ Type
Edge type
Display Surface(non-glare/ glare)
Non-glare
Color Saturation
100% AdobeRGB
93% DCI-P3/142% sRGB
True Resolution
2560 x 1440 (QHD)
Pixel Pitch
0.2331 (H) x 0.2331 (V) (mm)
Brightness
400 cd/m2 (TYP)
Contrast Ratio
1000:1
Viewing Angle
178°(H)/178°(V)
Display Colors
10 bits (8 bits+FRC)
Response Time
0.3ms (MPRT) / 1ms (GTG)
Refresh Rate
240Hz

an
Dimensions : 120 x 25 mm
Speed : 800 ~ 1700 RPM +/-10%
Bearing type : Sleeve (Graphene Nano Lubricant)
Air Flow : 18.52 ~ 40.85 CFM
Pressure : 0.37 ~ 1.48 mmH2O
Noise Level : 7.3 ~ 28.6 dBA
MTTF : 73,500 Hours
Connector : 4-Pin PWM / ARGB header
Voltage : 12V
Input Power : 6W
Input Current : 0.5A
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

an
Dimensions : 140 x 25 mm
Speed : 800 ~ 1700 RPM +/-10%
Bearing type : Sleeve (Graphene Nano Lubricant)
Air Flow : 30.3 ~ 60.64 CFM
Pressure : 0.59 ~ 2.18 mmH2O
Noise Level : 8.9 ~ 35.8 dBA
MTTF : 73,500 Hours
Connector : 4-Pin PWM / ARGB header
Voltage : 12V
Input Power : 6W
Input Current : 0.5A
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

AMD® X570S UD Motherboard with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN, Rear & Front USB 3.2 Type-C®, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Fast 2.5GbE LAN with Bandwidth Management
Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II and M.2 Thermal Guard III
Intel® WiFi 6 802.11ax & BT 5.2
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMD WiFi 6E 802.11ax & BT 5.2
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Fast 2.5GbE LAN with Bandwidth Management
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD X570
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Actual support may vary by CPU.

Learn More about GeForce RTX 30
series: https://fb.watch/9NLKL7MBfn/
Graphics Processing
GeForce RTX™ 3070 Ti
Core Clock
1830 MHz (Reference Card: 1770 MHz)
CUDA® Cores
6144
Memory Clock
19000 MHz
Memory Size
8 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
608 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4

Interface
PCI-Express 4.0 x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
1000GB
NAND
3D TLC NAND Flash
External DDR Cache
DDR4 1GB
Sequential Read speed
Up to 7000 MB/s
Sequential Write speed
Up to 5500 MB/s
Random Read IOPS
up to 350k
Random Write IOPS
up to 700k
Dimension
80.5 x 11.25 x 23.5 mm

Interface
PCI-Express 4.0 x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
2000GB
NAND
3D TLC NAND Flash
External DDR Cache
DDR4 2GB
Sequential Read speed
Up to 7000 MB/s
Sequential Write speed
Up to 6850 MB/s
Random Read IOPS
up to 650k
Random Write IOPS
up to 700k
Dimension
80.5 x 11.25 x 23.5 mm

Learn More about GeForce RTX 30
series: https://fb.watch/9NLKL7MBfn/
Graphics Processing
GeForce RTX™ 3060 Ti
Core Clock
1785 MHz (Reference Card: 1665 MHz)
CUDA® Cores
4864
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
4‎48 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
Card size
L=296 W=117 H=56 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
650W
Power Connectors
8 pin*1 + 6 pin*1
Output
DisplayPort 1.4a *2
HDMI 2.1*2
SLI Support
N/A
Accessories
1. Quick Guide
2. Metal sticker

AORUS RGB Memory 3333MHz 16GB Memory Kit, Supports AORUS Memory Boost and RGB Fusion 2.0, Selected High Quality Memory ICs, 100% Sorted and Tested.
Memory Size : 16GB Kit (2 x 8GB)
Frequency : DDR4-3333 MHz
Timing : 18-20-20-40 (XMP 3333MHz)
Support AORUS MEMORY BOOST*
Performance Profile : XMP 2.0
RGB Fusion 2.0 Supported
High Efficient Heat Spreaders to Keep Performance
User Friendly Design for Easier Installation
100% Sorted & Tested
Lifetime Warranty
Comply with industrial standard JEDEC DDR4

Faster Memory Speed(3200MHz) for Quick Response. 2X Memory Capacity than Previous Generation. More Bandwidth for Smooth Multi-Tasking. Low Latency with CAS16.

Memory Size: 64GB Kit (2 x 32GB)
Frequency:DDR4-3200 MHz
Timing:16-18-18-38
Quality Guaranteed by 100% Qualified & Optimized
Efficient Heat Spreaders with Anodized Aluminum
Industrial Standard JEDEC DDR4 Compliance

AORUS RGB Memory 3733MHz 16GB Memory Kit, Supports AORUS Memory Boost and RGB Fusion 2.0, Selected High Quality Memory ICs, 100% Sorted and Tested.
Memory Size : 16GB Kit (2 x 8GB)
Frequency : DDR4-3733 MHz
Timing : 18-22-22-42 (XMP 3733MHz)
Support AORUS MEMORY BOOST*
Performance Profile : XMP 2.0
RGB Fusion 2.0 Supported
High Efficient Heat Spreaders to Keep Performance
User Friendly Design for Easier Installation
100% Sorted & Tested
Lifetime Warranty
Comply with industrial standard JEDEC DDR4

Interface
USB3.2 Gen2x2
Form Factor
External SSD
Total Capacity
1TB
External DDR Cache
1GB
Sequential Read speed
Up to 2,000 MB/s
Sequential Write speed
Up to 2,000 MB/s
Mean time between failure (MTBF)
1.77 million hours
Power Consumption (Active)
5W
Power Consumption (Idle)
2.65W
Temperature (Operating)
0‎°C to 70°C
Temperature (Storage)
-40°C to 85°C

Form Factor: M.2 2280
Interface: PCI-Express 4.0x4, NVMe 1.3
Total Capacity: 2000GB*
Sequential Read Speed : up to 5000 MB/s**
Sequential Write speed : up to 4400 MB/s**
Wear Leveling, Over-Provision technologies
TRIM & S.M.A.R.T supported
Fully Body Copper Heat Spreader
Warranty: Limited 5-years
Up to 5,600 MB/s read speed on PS5 M.2 extension slot

Learn More about GeForce RTX 30
series: https://fb.watch/9NLKL7MBfn/
Graphics Processing
Radeon™ RX 6600 XT
Core Clock
Boost Clock* : up to 2593 MHz (Reference card: 2589 MHz)
Game Clock* : up to 2382 MHz (Reference card: 2359 MHz)
Stream Processors
2048
Memory Clock
16000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
256 GB/s
Card Bus
PCI-E 4.0 x 8
Digital max resolution
7680x4320

Graphics Processing
Radeon™ RX 6600 XT
Core Clock
Boost Clock* : up to 2589 MHz
Game Clock* : up to 2359 MHz
Stream Processors
2048
Memory Clock
16000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
256 GB/s
Card Bus
PCI-E 4.0 x 8
Digital max resolution
7680x4320

Learn More about GeForce RTX 30
series: https://fb.watch/9NLKL7MBfn/
Graphics Processing
GeForce RTX™ 3060 Ti
Core Clock
1740 MHz (Reference Card: 1665 MHz)
CUDA® Cores
4864
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
448 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320

Learn More about GeForce RTX 30
series: https://fb.watch/9NLKL7MBfn/
Graphics Processing
GeForce RTX™ 3070 Ti
Core Clock
1800 MHz (Reference Card: 1770 MHz)
CUDA® Cores
6144
Memory Clock
19000 MHz
Memory Size
8 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
608 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320

Learn More about GeForce RTX 30
series: https://fb.watch/9NLKL7MBfn/
Graphics Processing
GeForce RTX™ 3080 Ti
Core Clock
1710 MHz (Reference Card: 1665 MHz)
CUDA® Cores
10240
Memory Clock
19000 MHz
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
384 bit
Memory Bandwidth (GB/sec)
912 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320

Features
Powered by GeForce® GTX 1650
NVIDIA Turing™ architecture and GeForce Experience™
Integrated with 4GB GDDR6 128bit memory interface
80mm unique blade fan
170 mm compact card size
Core Clock
1590 MHz

Panel Size (diagonal)
27” IPS
Display Viewing Area (HxV)
597.6 x 336.15 (mm)
Panel Backlight/ Type
Edge type
Color Saturation
95% DCI-P3 / 125% sRGB
True Resolution
1920 x 1080 (FHD)
Pixel Pitch
0.31125*0.31125
Brightness
300 cd/m2 (TYP)
Contrast Ratio
1000:1
Dynamic Contrast Ratio
12M:1
Viewing Angle
178°(H)/178°(V)
Display Colors
8 bits
Response Time
1ms (MPRT)
Refresh Rate
144Hz

Panel Size (diagonal)
28" SS IPS
Display Viewing Area (HxV)
631.928 x 359.78 (mm)
Panel Backlight/ Type
Edge type
Display Surface(non-glare/ glare)
Non-glare
Color Saturation
94% DCI-P3/ 120% sRGB
True Resolution
3840 x 2160 (UHD)
Pixel Pitch
0.16 (H) x 0.16 (V)
Brightness
300 cd/m2 (TYP)
Contrast Ratio
1000:1
Viewing Angle
178°(H)/178°(V)
Display Colors
8 bits
Response Time
1ms GTG / 2ms MPRT
Refresh Rate
144Hz
120Hz for Console Game*

Type
Flat
Panel Size (diagonal)
23.8" SS IPS
Display Viewing Area (HxV)
527.04*296.46 (mm)
Panel Backlight/ Type
Edge type
Display Surface(non-glare/ glare)
Non-glare type
Color Saturation
90% DCI-P3/120% sRGB
True Resolution
1920 x 1080 (FHD)
Pixel Pitch
0.2745 (H) x 0.2745 (V) (mm)
Brightness
300 cd/m2 (TYP)
Contrast Ratio
1000 : 1
Viewing Angle
178°(H)/178°(V)
Display Colors
8 bits
Response Time
1ms (MPRT) / 2ms (GTG)
Refresh Rate
165Hz/OC 170Hz

31.5" SS IPS 3840 x 2160 4K Display Gaming Monitor
144Hz Refresh Rate, 1ms (GTG) Response Time, Supports FreeSync Premium Pro
10-bit color / 95% DCI-P3 / 123% sRGB / VESA DisplayHDR 400
OSD Sidekick, PiP /PbP, Dashboard, Black Equalizer, Game Assist, Auto Noise Cancellation
Audiophile soundquality by Audio ESS SABRE HiFi
KVM feature with USB Type-C to control multiple devices (10Gbps Type-C cable required)
VESA Wall Mount Compatible 100 x 100mm
Ergonomic Design (height, tilt, pivot, swivel)
TUV Rheinland and Eyesafe, Flicker Free
1x DisplayPort 1.4, 2x HDMI 2.1
1x USB Type-C (KVM), 2x USB 3.0, 1x USB Type-B
Earphone/Microphone jacks, Audio line-out
Included: Power cable / HDMI 2.1 cable / DP 1.4 cable / USB Cable / Type-C Cable / QSG / Warranty card

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.

CPU
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z590 Express Chipset
Memory
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
