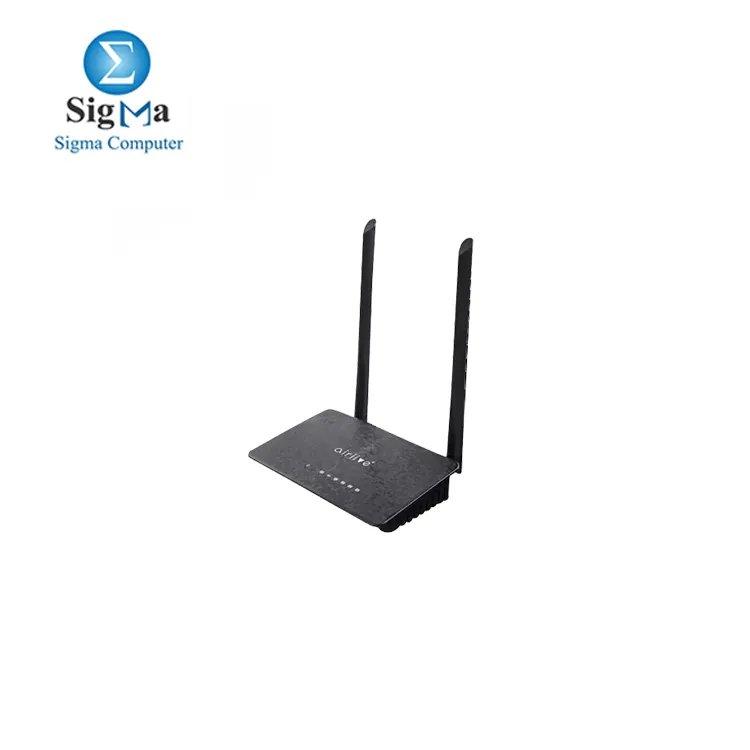

AirLive N305R Access Point 4 Port 2 Antenna 300Mbps

Brand:

AirLive

Model:

N305R

WiFi Generation:

Wi-Fi 4 (802.11n)

Wireless Standard:

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Network Protocols:

802.11n/g/b

WAN Ports:

1 × 10/100M WAN Port

LAN Ports:

4 × 10/100M LAN Ports

LEDs:

Power, WAN, LAN, WLAN

Buttons:

Reset

Wireless Data Rates:

11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)

Frequency Band:

2.4 – 2.4835GHz

Antenna:

5dBi fixed antenna

Interface:

AP / Router / Client / Bridge / Repeater

Power Supply:

Input AC 100–240V, Output DC 12V/0.5A

Weight:

TBD

Security:

64/128 bit WEP, WPA, WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

WPA:

WPA/WPA2-PSK (TKIP/AES)

Throughput:

Up to 300Mbps

Link Aggregation:

Not supported

Features:

Wireless N300 Router, AP/Repeater/Bridge/Client modes, Extended coverage with 5dBi antenna

Special Features:

Automatic fallback for signal rates, Multiple operation modes

Standards:

IEEE 802.11n/g/b

Operating Range:

Indoors: ~30m

Dimensions:

140 × 90 × 170mm (including antenna)

Operation Mode:

AP, Router, Client, Bridge, Repeater

Temperature:

Operating: 0°C ~ 40°C Storage: -40°C ~ 70°C

Device Management:

Web-based configuration

Mobile Network Support:

Not supported
