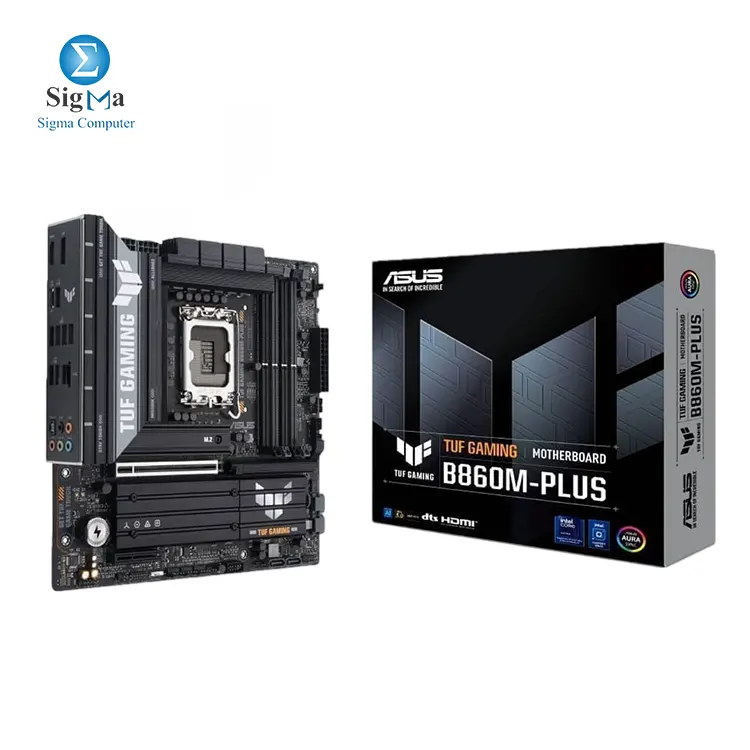

ASUS INTEL TUF Gaming B860M Plus Motherboard

Model:

TUF GAMING B860M-PLUS

CPU Support:

Intel Core Ultra Series 2 (LGA1851)

Chipset:

Intel B860

DIMM Slots:

4 x DIMM DDR5

Max Memory support:

256GB

PCI-E Slots:

1 x PCIe 5.0 x16 / 1 x PCIe 4.0 x4

M.2 Slots:

3 x M.2

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

3 x Addressable Gen 2

Fan Headers:

5 (1 CPU + 1 CPU OPT + 1 AIO + 3 Chassis)

Front Type C Headers:

1 x USB 10Gbps Type-C

Front USB 3 Headers:

1 x USB 5Gbps Header (2 Ports)

USB 2.0 Headers:

1 x USB 2.0 header (2 ports)

Onboard Graphics Outputs:

1 x HDMI / 1 x DisplayPort

PS/2 Combo Ports:

Yes (SafeSlot)

USB Ports:

8 Rear USB Ports

USB Type C Ports:

1 x USB Type-C (20Gbps)

Ethernet LAN Port:

1 x 2.5Gb Realtek

Audio Jacks:

5 x Audio jacks

Optical:

Yes

Operating System:

Windows 10 / Windows 11

Form Factor:

mATX
