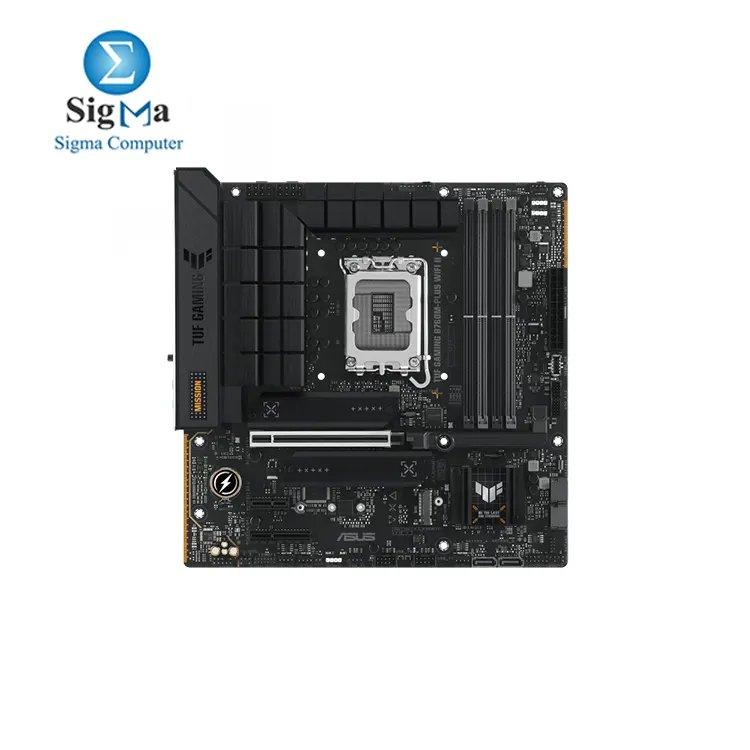

Asus TUF GAMING B760M-PLUS WIFI II

Model:

TUF GAMING B760M-PLUS WIFI II

CPU Support:

Intel® Core™ 12th / 13th / 14th Gen, Pentium® Gold, Celeron® (LGA1700 socket)

Chipset:

Intel® B760

DIMM Slots:

4 x DDR5 DIMM

Max Memory support:

192GB, up to DDR5-7800+ (OC)

PCI-E Slots:

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots:

3 x M.2 (PCIe 4.0)

SATA III:

4 x SATA 6Gb/s (RAID 0/1/5/10)

ARGB Headers:

3

RGB Headers:

1

Fan Headers:

Multiple (CPU, Chassis, AIO, M.2)

Front Type C Headers:

1 x USB 3.2 Gen 2x2 Type-C (20Gbps)

Front USB 3 Headers:

1 x USB 3.2 Gen 1 (up to 2 ports)

USB 2.0 Headers:

2 (up to 4 ports)

Flash BIOS Buttons:

Yes

Clear COMS Buttons:

Yes

Onboard Graphics Outputs:

1 x HDMI 2.1 (4K@60Hz) 1 x DisplayPort 1.4 (4K@60Hz)

PS/2 Combo Ports:

1

USB Ports:

Total 16 (8 rear, 8 front)

USB Type C Ports:

Rear: 1 x USB 3.2 Gen 2x2 Type-C (20Gbps)

Ethernet LAN Port:

1 x Realtek 2.5Gb Ethernet

Bluetoooht & Wireless:

WiFi 6E, Bluetooth 5.3

Audio Jacks:

5 x Audio Jacks

Optical:

1 x Optical S/PDIF out

Operating System:

Windows 11 / Windows 10 (64-bit)

Form Factor:

Micro-ATX
