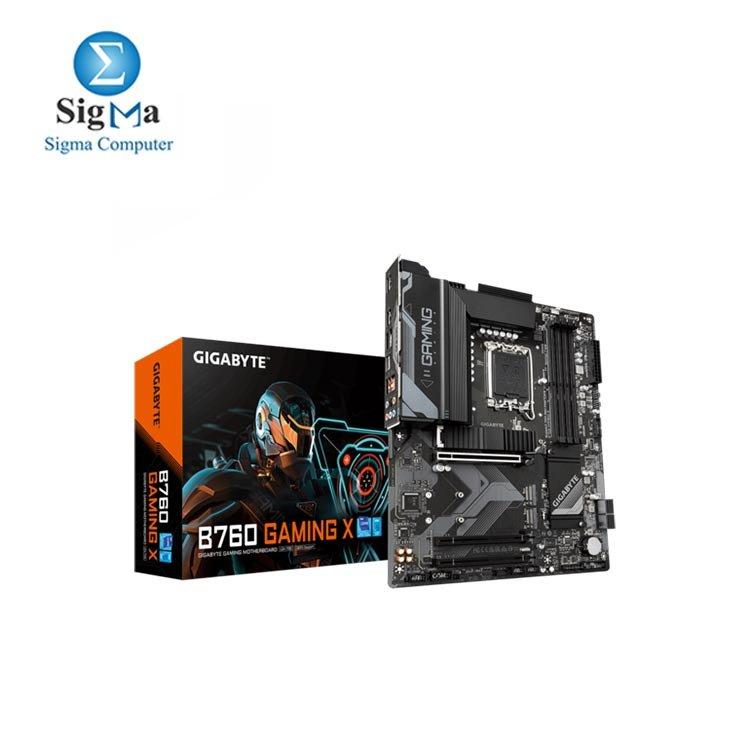

GIGABYTE INTEL B760 GAMING X DDR4 GEN5 Socket LGA 1700 Motherboard

CPU Support:

Intel® Core™ 14th Gen / 13th Gen / 12th Gen, Pentium® Gold, Celeron® (LGA1700)

Chipset:

Intel® B760 Express Chipset

DIMM Slots:

4 x DDR4 DIMM

Max Memory support:

Up to 128GB

PCI-E Slots:

1 x PCIe 5.0 x16, 2 x PCIe 3.0 x1

M.2 Slots:

3 x M.2 PCIe 4.0

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

3 x Addressable RGB Gen2 headers

RGB Headers:

1 x RGB Header

Fan Headers:

6 (1 x CPU Fan, 1 x CPU Fan/Water Pump, 3 x System Fan, 1 x System Fan/Water Pump)

Front Type C Headers:

1 x USB Type-C® Header (USB 3.2 Gen 2)

Front USB 3 Headers:

1 x USB 3.2 Gen 1 Header

USB 2.0 Headers:

2 x USB 2.0/1.1 Headers

Flash BIOS Buttons:

1 x Q-Flash Plus Button

Onboard Graphics Outputs:

1 x DisplayPort, 1 x HDMI

USB Ports:

10 x USB Type-A (1 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 7 x USB 2.0/1.1)

USB Type C Ports:

1 x Rear USB Type-C (USB 3.2 Gen 1)

Ethernet LAN Port:

1 x RJ-45 (Realtek® 2.5GbE LAN)

Audio Jacks:

6 x Audio Jacks

Optical:

S/PDIF Out Header

Operating System:

Windows 11

Form Factor:

ATX (30.5 × 24.4 cm)
