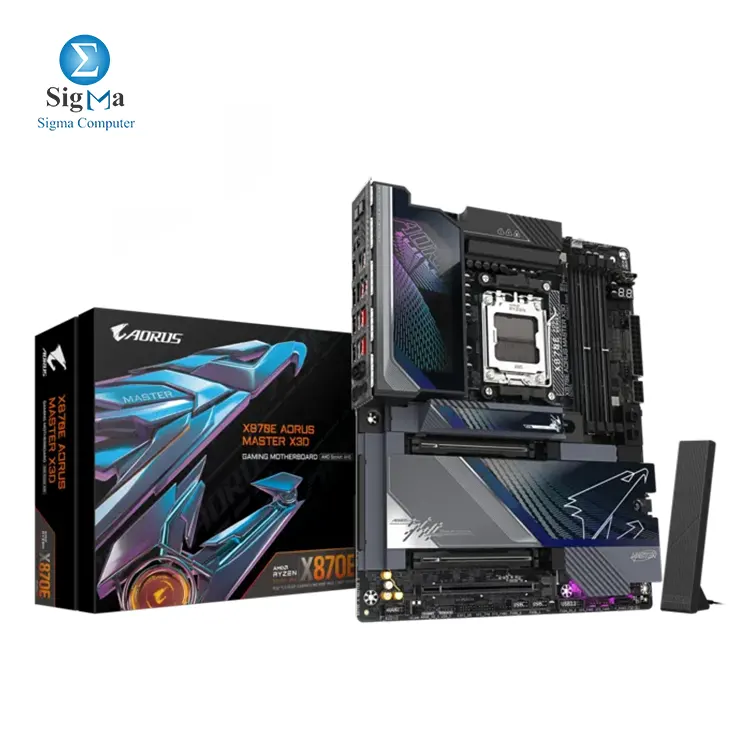

GIGABYTE AORUS AMD X870E MASTER X3D 1.0

CPU Support:

AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series

Chipset:

AMD X870E

DIMM Slots:

4 × DDR5 DIMM

Max Memory support:

Up to 256GB DDR5

PCI-E Slots:

1 × PCIe 5.0 x16 1 × PCIe 5.0 x8 1 × PCIe 4.0 x4

M.2 Slots:

5× M.2 Slots

SATA III:

2× SATA 6Gb/s

ARGB Headers:

4 × Addressable RGB Gen2 Headers

RGB Headers:

1 × RGB header

Fan Headers:

1 × CPU Fan 1 × CPU Pump 4 × System Fan 1 × System Fan/Pump 1 × Fan Extension Header

Front Type C Headers:

1 × USB Type-C (USB 3.2 Gen 2x2, up to 65W)

Front USB 3 Headers:

2 × USB 3.2 Gen 1 Headers

USB 2.0 Headers:

2 × USB 2.0 Headers

Flash BIOS Buttons:

1 × Q-Flash Plus Button

Clear COMS Buttons:

1 × Clear CMOS Button (Back Panel)

Onboard Graphics Outputs:

2 × USB4 Type-C (DisplayPort) 1 × HDMI 2.1 1 × Front HDMI

USB Ports:

7 × USB 3.2 Gen 2 Type-A 1 × USB 3.2 Gen 2 Type-A (CPU)

USB Type C Ports:

2 × USB4 Type-C 1 × USB 3.2 Gen 2 Type-C 1 × USB 3.2 Gen 2x2 Type-C

Ethernet LAN Port:

1 × 10GbE - 1 × 5GbE

Bluetoooht & Wireless:

Wi-Fi 7 + Bluetooth 5.4

Audio Jacks:

2× Audio Jacks

Optical:

Yes

Operating System:

Windows 11 64-bit

Form Factor:

ATX (30.5 × 24.4 cm)
