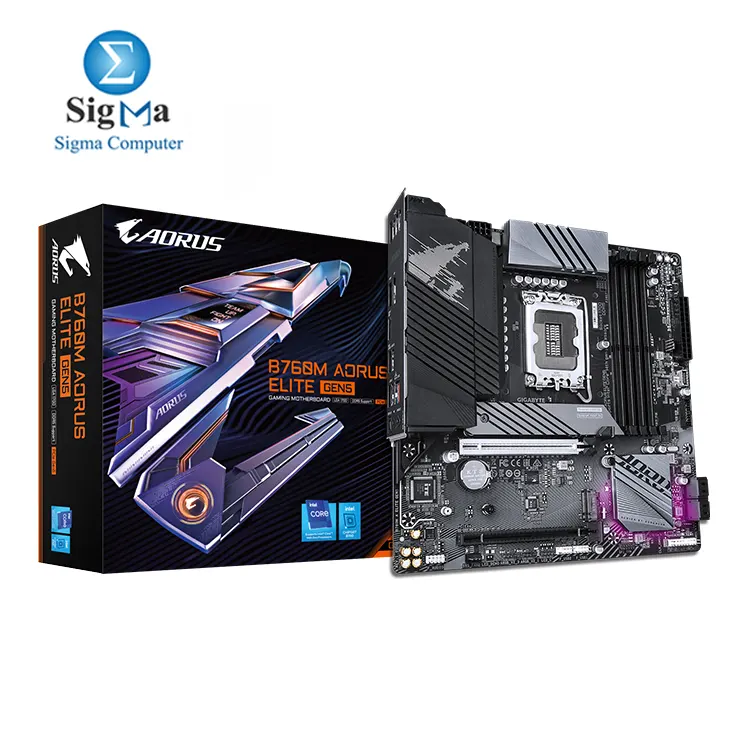

GIGABYTE B760M AORUS ELITE GEN5

Model:

GIGABYTE B760M AORUS ELITE GEN5

CPU Support:

Intel® 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® Processors (LGA1700 Socket)

Chipset:

Intel B760 Express

DIMM Slots:

4 x DDR5 DIMM sockets

Max Memory support:

Up to 256GB (DDR5 7800(O.C.))

PCI-E Slots:

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4

M.2 Slots:

2 x M.2 PCIe 4.0 x4/x2

SATA III:

4 x SATA 6Gb/s ports

ARGB Headers:

3 x ARGB Gen2

RGB Headers:

1 x RGB

Fan Headers:

1 x CPU, 3 x System

Front Type C Headers:

1 x USB 3.2 Gen 2 Type-C

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header

USB 2.0 Headers:

2 x USB 2.0/1.1 headers

Flash BIOS Buttons:

1 x Q-Flash Plus button

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

1 x HDMI 2.1, 1 x DisplayPort 1.2

USB Ports:

3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x USB 3.2 Gen 2 Type-A

USB Type C Ports:

1 x USB 3.2 Gen 2x2 Type-C (rear), 1 x USB 3.2 Gen 2 Type-C (front)

Ethernet LAN Port:

Realtek 2.5GbE LAN

Audio Jacks:

2 x audio jacks

Optical:

1 x S/PDIF Out

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
