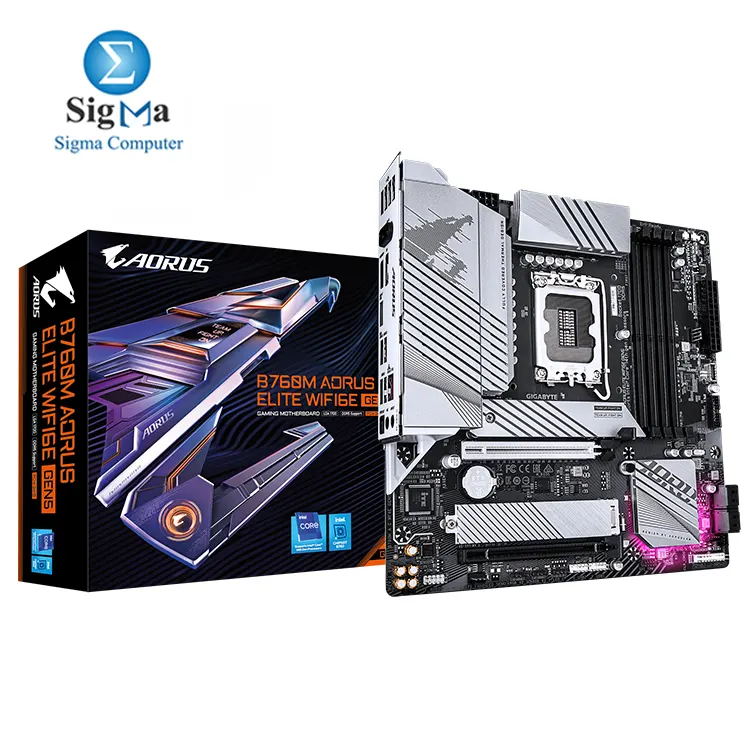

GIGABYTE B760M AORUS ELITE WIFI6E GEN5

Model:

B760M AORUS ELITE WIFI6E GEN5

CPU Support:

Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold & Celeron® (LGA1700 Socket)

Chipset:

Intel® B760 Express Chipset

DIMM Slots:

4 x DDR5 DIMM Slots

Max Memory support:

Up to 256GB DDR5 7800(O.C.) MHz

PCI-E Slots:

1 x PCIe 5.0 x16 (CPU) 1 x PCIe 4.0 x4 (Chipset)

M.2 Slots:

2 x M.2 PCIe 4.0 x4/x2 (1x 2280, 1x 22110/2280)

SATA III:

4 x SATA 6Gb/s Ports

ARGB Headers:

3 x Addressable RGB Gen2 Headers

RGB Headers:

1 x RGB LED Header

Fan Headers:

1 x CPU Fan, 3 x System Fan Headers

Front Type C Headers:

1 x USB Type-C® (USB 3.2 Gen 2) Header

Front USB 3 Headers:

1 x USB 3.2 Gen 1 Header

USB 2.0 Headers:

2 x USB 2.0/1.1 Headers

Flash BIOS Buttons:

1 x Q-Flash Plus Button

Clear COMS Buttons:

1 x Clear CMOS Jumper

Onboard Graphics Outputs:

1 x HDMI 2.1, 1 x DisplayPort 1.2

USB Ports:

Rear: 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Internal: 6 x via headers

USB Type C Ports:

Rear: 1 x USB-C (USB 3.2 Gen 2x2 20Gb/s) Front: 1 x USB-C (USB 3.2 Gen 2 10Gb/s)

Ethernet LAN Port:

Realtek® 2.5GbE LAN (RJ-45)

Bluetoooht & Wireless:

Intel® Wi-Fi 6E AX210 + Bluetooth 5.3

Audio Jacks:

2 x 3.5mm Audio Jacks

Optical:

1 x Optical S/PDIF Out Port

Operating System:

Windows 11 64-bit / Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
