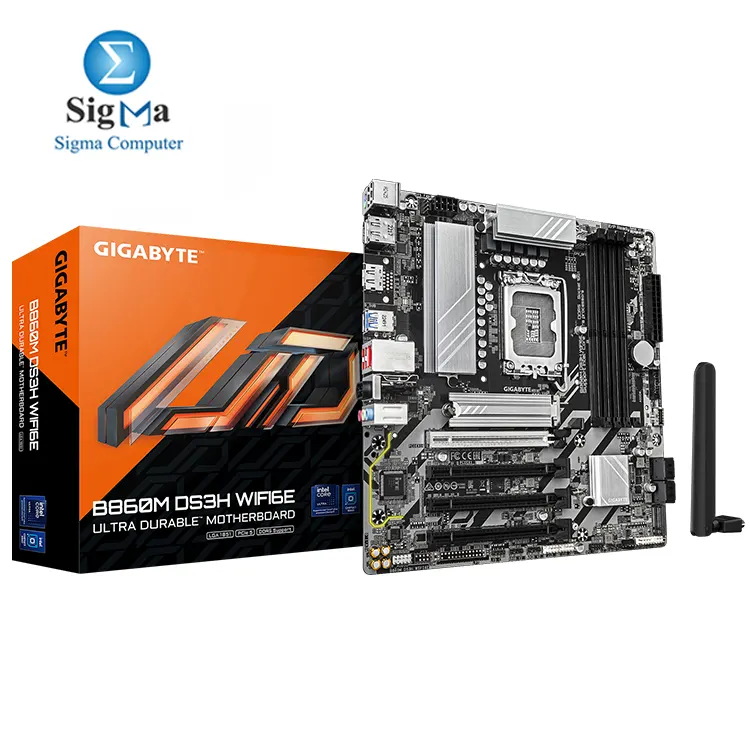

GIGABYTE B860M DS3H WIFI6E (rev. 1.x)

Model:

GIGABYTE B860M DS3H WIFI6E (rev. 1.x)

CPU Support:

Intel® Core™ Ultra Processors (Series 2, LGA1851 socket)

Chipset:

Intel® B860 Express Chipset

DIMM Slots:

4 x DDR5 DIMM sockets

Max Memory support:

Up to 256GB (64GB per DIMM) DDR5

PCI-E Slots:

1 x PCIe 5.0 x16, 3 x PCIe 4.0 x1

M.2 Slots:

2 x M.2 (1 x PCIe 5.0 x4 / 1 x PCIe 4.0 x4)

SATA III:

4 x SATA 6Gb/s ports

ARGB Headers:

3 x Addressable RGB Gen2 headers

RGB Headers:

1 x RGB LED strip header

Fan Headers:

4 (CPU, CPU/WP, SYS, SYS/WP)

Front Type C Headers:

1 x USB Type-C (USB 3.2 Gen 1)

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header (2 ports)

USB 2.0 Headers:

2 x USB 2.0/1.1 headers (4 ports)

Flash BIOS Buttons:

1 x Q-Flash Plus button

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

2 x DisplayPort, 1 x HDMI

PS/2 Combo Ports:

1 x PS/2 keyboard/mouse port

USB Ports:

1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 3 x USB 2.0 (rear)

USB Type C Ports:

1 x USB 3.2 Gen 1 Type-C (front)

Ethernet LAN Port:

Realtek® 2.5GbE LAN

Bluetoooht & Wireless:

Intel® Wi-Fi 6E AX211 / Bluetooth® 5.3

Audio Jacks:

3 x audio jacks (supports 2/4/5.1/7.1 channel audio)

Optical:

No

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
