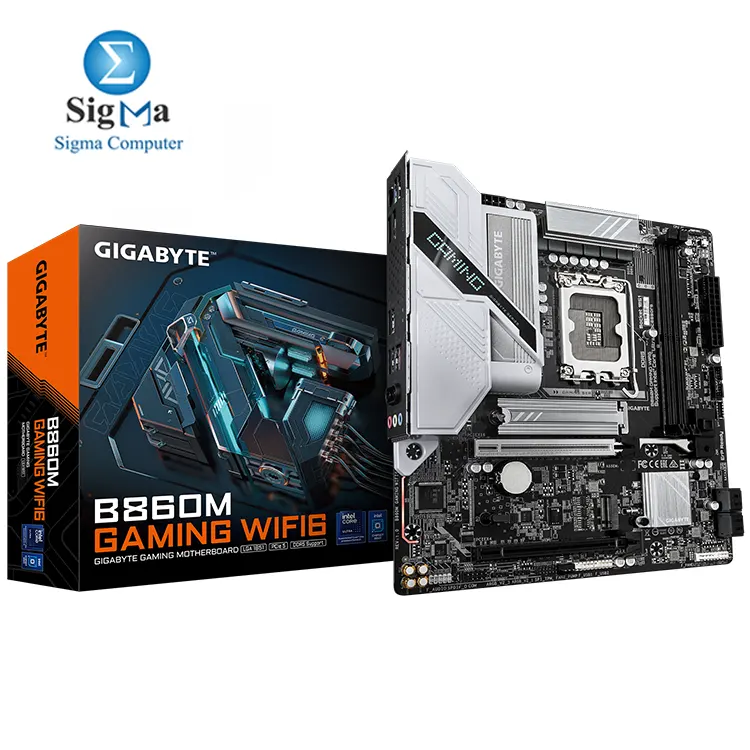

GIGABYTE B860M GAMING WIFI6

Model:

GIGABYTE B860M GAMING WIFI6

CPU Support:

Intel® Core™ Ultra Processors (LGA1851 Socket)

Chipset:

Intel® B860 Express Chipset

DIMM Slots:

2 × DDR5 DIMM Slots

Max Memory support:

Up to 128GB DDR5 (9066+ MHz OC)

PCI-E Slots:

1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4

M.2 Slots:

2 × M.2 (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4)

SATA III:

4 × SATA 6Gb/s Ports

ARGB Headers:

3 × Addressable RGB Gen2 Headers

Fan Headers:

4 × (CPU Fan, CPU Pump, System Fan, System Pump)

Front Type C Headers:

1 × USB Type-C® (USB 3.2 Gen 1)

Front USB 3 Headers:

1 × USB 3.2 Gen 1 Header

USB 2.0 Headers:

2 × USB 2.0/1.1 Headers

Flash BIOS Buttons:

1 × Q-Flash Plus Button

Clear COMS Buttons:

1 × Clear CMOS Jumper

Onboard Graphics Outputs:

1 × HDMI 2.1, 1 × DisplayPort 2.1

PS/2 Combo Ports:

1 × PS/2 Keyboard/Mouse Port

USB Ports:

3 × USB 3.2 Gen 1, 3 × USB 2.0 (Rear)

USB Type C Ports:

1 × USB Type-C® (via internal header)

Ethernet LAN Port:

1 × Realtek® 2.5GbE LAN

Bluetoooht & Wireless:

Realtek® Wi-Fi 6 RTL8851BE, Bluetooth® 5.3

Audio Jacks:

3 × Audio Jacks (2/4/5.1/7.1-channel support)

Optical:

1 × S/PDIF Out

Operating System:

Windows 11 64-bit / Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm × 22.5cm)
