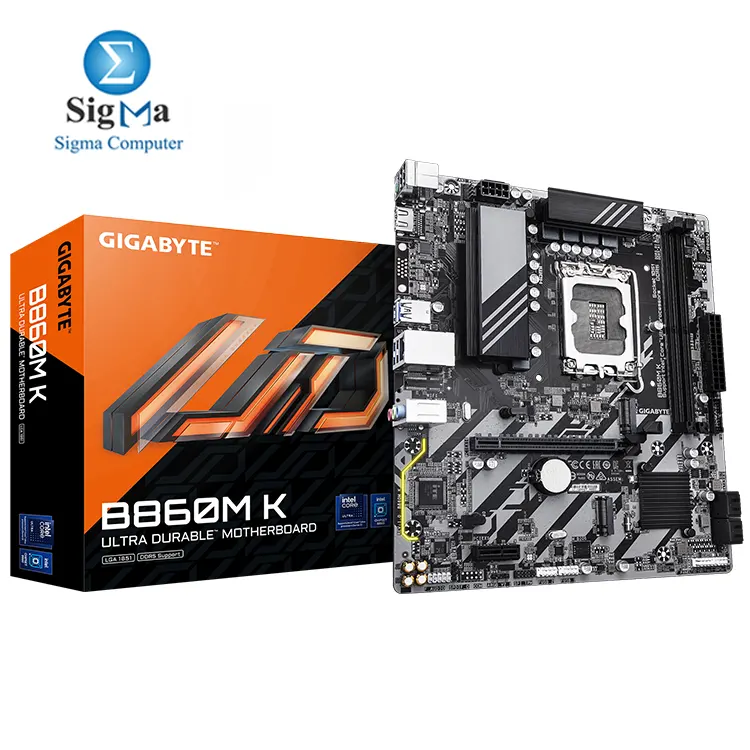

Gigabyte B860M K

Model:

Gigabyte B860M K

CPU Support:

Intel® Core™ Ultra Processors (LGA1851 socket)

Chipset:

Intel® B860 Express Chipset

DIMM Slots:

2 x DDR5 DIMM sockets

Max Memory support:

Up to 128GB DDR5 (64GB per DIMM), Dual Channel, XMP Supported

PCI-E Slots:

1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

M.2 Slots:

2 x M.2 PCIe 4.0 x4/x2 (Type 2280)

SATA III:

4 x SATA 6Gb/s ports, RAID 0/1/5/10 supported

ARGB Headers:

2 x Addressable RGB Gen2 Headers

Fan Headers:

3 (1 x CPU, 1 x CPU/Water Pump, 1 x System/Water Pump)

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header (supports 2 ports)

USB 2.0 Headers:

2 x USB 2.0/1.1 headers (supports 4 ports)

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

1 x HDMI 2.1 (up to 4096x2160@60Hz, HDCP 2.3)

PS/2 Combo Ports:

1 x PS/2 keyboard/mouse port

USB Ports:

4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1

Ethernet LAN Port:

1 x Realtek® GbE LAN (1Gbps/100Mbps/10Mbps)

Audio Jacks:

3 x Audio jacks (support 2/4/5.1/7.1-channel)

Optical:

1 x S/PDIF Out header

Operating System:

Windows 11 64-bit, Windows 10 64-bit (Intel® NPU driver supported only on Windows 11)

Form Factor:

Micro ATX (24.4cm x 21.5cm)
