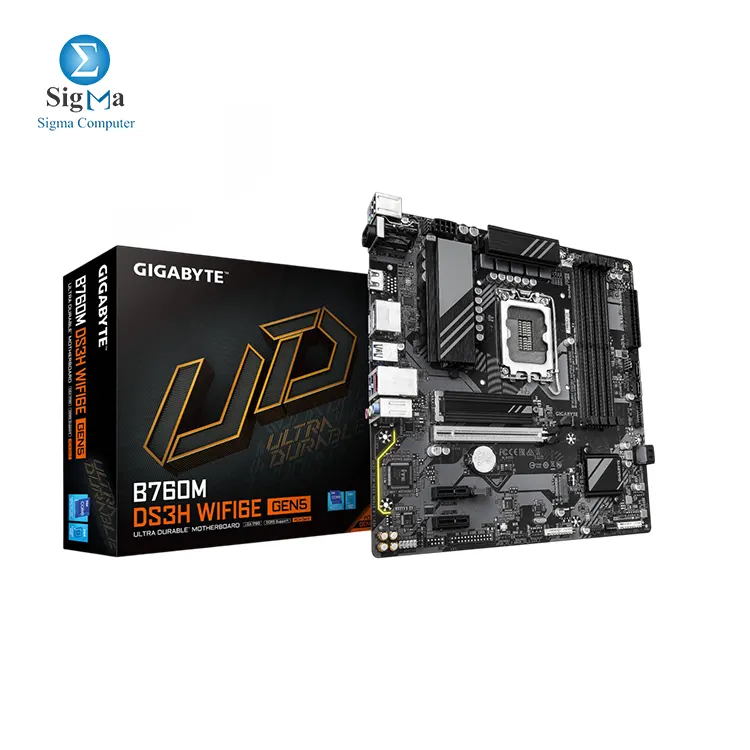

GIGABYTE INTEL B760M DS3H WF6E D4 G5 1.0

Model:

B760M DS3H WF6E

CPU Support:

LGA1700 – 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron®

Chipset:

Intel® B760 Express

DIMM Slots:

4 x DDR4 DIMM

Max Memory support:

Up to 256GB (64GB per DIMM)

PCI-E Slots:

1 x PCIe 5.0 x16 / 2 x PCIe 3.0 x1

M.2 Slots:

2 x M.2 (PCIe 4.0 x4/x2)

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

2 x Addressable RGB Gen2

RGB Headers:

1 x RGB Header

Fan Headers:

1 x CPU Fan / 3 x System Fan

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header

USB 2.0 Headers:

2 x USB 2.0 Headers

Flash BIOS Buttons:

1 x Q-Flash Plus Button

Clear COMS Buttons:

1 x Clear CMOS Jumper

Onboard Graphics Outputs:

1 x HDMI 2.1 / 2 x DisplayPort 1.2

PS/2 Combo Ports:

1 x PS/2

USB Ports:

2 x USB 2.0 / 3 x USB 3.2 Gen1 / 1 x USB 3.2 Gen2 Type-C

USB Type C Ports:

1 x USB 3.2 Gen2 Type-C

Ethernet LAN Port:

Realtek® 2.5GbE LAN

Bluetoooht & Wireless:

Intel® Wi-Fi 6E AX210 + Bluetooth 5.3

Audio Jacks:

3 x Audio Jacks

Optical:

Support for S/PDIF Out (Header)

Operating System:

Windows 11 64-bit / Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
