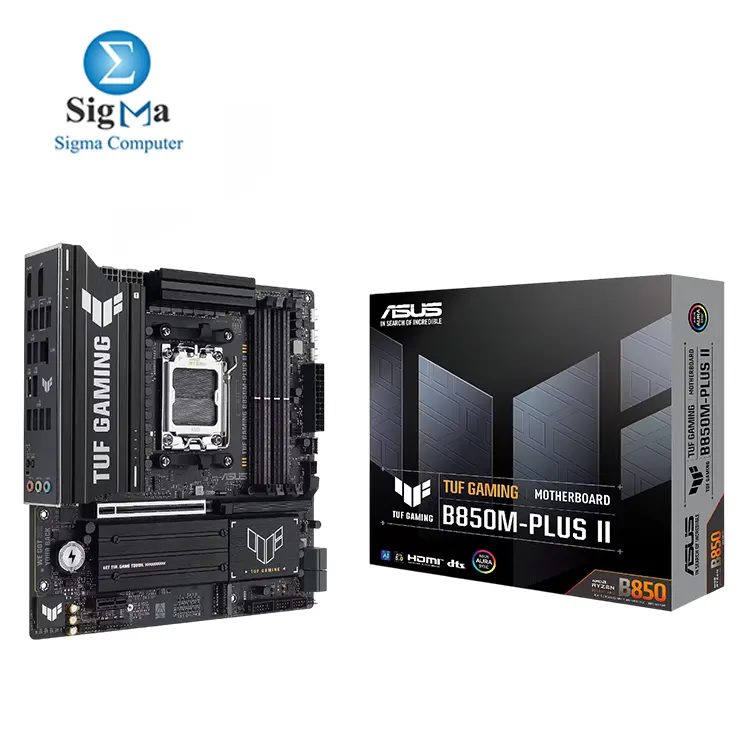

ASUS AMD TUF GAMING B850M-PLUS II

Model:

TUF GAMING B850M-PLUS II

CPU Support:

AMD Socket AM5 Ryzen™ 9000 / 8000 / 7000 Series

Chipset:

AMD B850 Chipset

DIMM Slots:

4 x DIMM

Max Memory support:

256GB DDR5

PCI-E Slots:

1 x PCIe 5.0 x16 (Ryzen 9000 / 7000) 1 x PCIe 4.0 x16 (Ryzen 8000 – x8/x4) 1 x PCIe 4.0 x1 (Chipset)

M.2 Slots:

3 x M.2 (Key M) PCIe 5.0 x4 (CPU – Ryzen 9000 / 7000) PCIe 4.0 x4 / x2 (CPU – varies by CPU) PCIe 4.0 x4 (Chipset)

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

3 x Addressable RGB Gen 2

Fan Headers:

6 Headers CPU Fan CPU OPT AIO Pump 3 x Chassis Fan

Front Type C Headers:

1 x USB 10Gbps Type-C Connector

Front USB 3 Headers:

1 x USB 5Gbps Header

USB 2.0 Headers:

2 Headers

Flash BIOS Buttons:

Yes (BIOS FlashBack™)

Clear COMS Buttons:

Yes

Onboard Graphics Outputs:

1 x DisplayPort 1 x HDMI

USB Ports:

12 x Rear USB Ports

USB Type C Ports:

1 x Rear USB Type-C 1 x Front USB Type-C (Internal Header)

Ethernet LAN Port:

Realtek 2.5Gb Ethernet

Audio Jacks:

3 x Audio Jacks Realtek ALC1220P 7.1 HD Audio

Operating System:

Windows 11 Windows 10 64-bit

Form Factor:

Micro-ATX 24.4 × 24.4 cm
