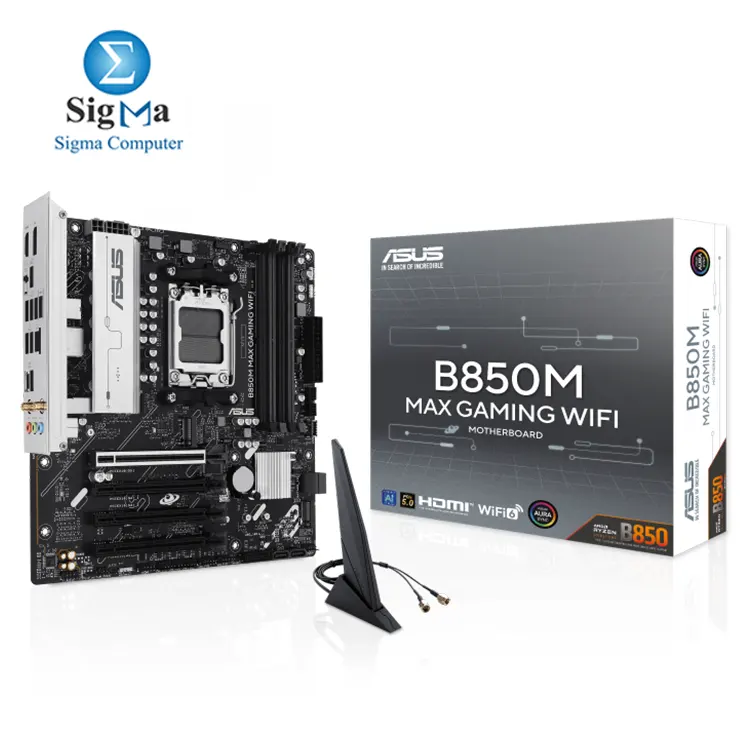

ASUS B850M MAX GAMING WIFI

Model:

ASUS B850M MAX GAMING WIFI

CPU Support:

AMD Socket AM5 Ryzen™ 9000 / 8000 / 7000 Series

Chipset:

AMD B850

DIMM Slots:

4 x DDR5 DIMM slots

Max Memory support:

256GB DDR5, up to 8000+ MT/s (OC)

PCI-E Slots:

1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x1 mode)

M.2 Slots:

3 x M.2 (1 x PCIe 5.0/4.0, 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x2)

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

3 x Addressable Gen 2 headers

Fan Headers:

1 x CPU Fan 1 x CPU OPT 1 x AIO Pump 4 x Chassis Fan

Front Type C Headers:

1 x USB 3.2 Gen1 Type-C

Front USB 3 Headers:

2 x USB 3.2 Gen1 headers (up to 4 ports)

USB 2.0 Headers:

2 x USB 2.0 headers (up to 4 ports)

Flash BIOS Buttons:

1 x BIOS FlashBack™ button

Clear COMS Buttons:

1 x Clear CMOS header

Onboard Graphics Outputs:

1 x HDMI 2.1 1 x DisplayPort 1.4

USB Ports:

Rear: 2 x USB 10Gbps (1 x Type-A, 1 x Type-C) 2 x USB 5Gbps (2 x Type-A) 5 x USB 2.0 (Type-A)

USB Type C Ports:

Rear: 1 x USB 10Gbps Type-C Front: 1 x USB 3.2 Gen1 Type-C

Ethernet LAN Port:

1 x Realtek 1Gb Ethernet

Bluetoooht & Wireless:

Wi-Fi 6 (802.11ax) Bluetooth v5.4

Audio Jacks:

3 x Audio jacks (7.1 HD Audio)

Optical:

1 x S/PDIF Out header (internal)

Operating System:

Windows® 11, Windows® 10 64-bit

Form Factor:

mATX (24.4 cm x 24.4 cm)
