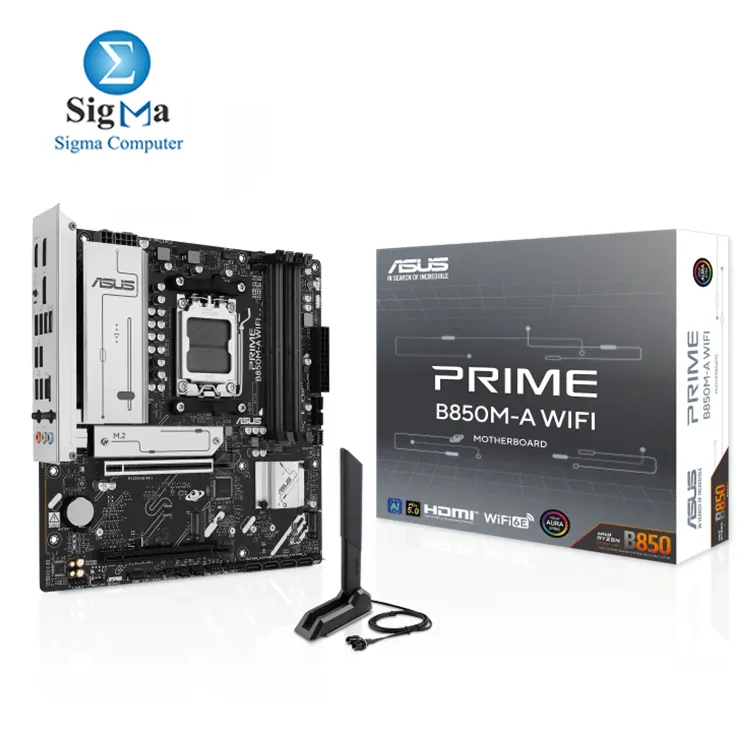

ASUS PRIME B850M-A WIFI Motherboard

Model:

PRIME B850M-A WIFI

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)

Chipset:

AMD B850 Chipset

DIMM Slots:

4 x DIMM Slots

Max Memory support:

Up to 256GB DDR5 (8000+ MT/s OC)

PCI-E Slots:

1 x PCIe 5.0 x16 (for Ryzen 9000/7000) 1 x PCIe 4.0 x16 (x1 mode via chipset)

M.2 Slots:

4 x SATA 6Gb/s Ports

SATA III:

3 x Addressable RGB Gen 2 Headers

ARGB Headers:

3 x Addressable RGB Gen 2 Headers

RGB Headers:

None

Fan Headers:

1 x CPU Fan 1 x CPU OPT Fan 1 x AIO Pump 3 x Chassis Fan

Front Type C Headers:

1 x USB 5Gbps Type-C Header

Front USB 3 Headers:

1 x USB 5Gbps Header (supports 2 x USB 3.0)

USB 2.0 Headers:

2 x USB 2.0 Headers (supports 4 x USB 2.0)

Flash BIOS Buttons:

Yes (1 x BIOS FlashBack™ Button)

Clear COMS Buttons:

1 x Clear CMOS Header (Internal)

Onboard Graphics Outputs:

2 x DisplayPort 1 x HDMI

PS/2 Combo Ports:

None

USB Ports:

Rear: 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 Front: Supports 1 x USB-C, 2 x USB 3.0, 4 x USB 2.0

USB Type C Ports:

1 x USB Type-C (via internal header)

Ethernet LAN Port:

1 x Realtek 2.5Gb Ethernet

Bluetoooht & Wireless:

Wi-Fi 6E (2x2), Bluetooth v5.3

Audio Jacks:

3 x Audio Jacks (7.1 Surround via front panel)

Optical:

1 x S/PDIF Out Header (internal)

Operating System:

Windows® 11, Windows® 10 64-bit

Form Factor:

mATX (24.4 cm x 24.4 cm)
