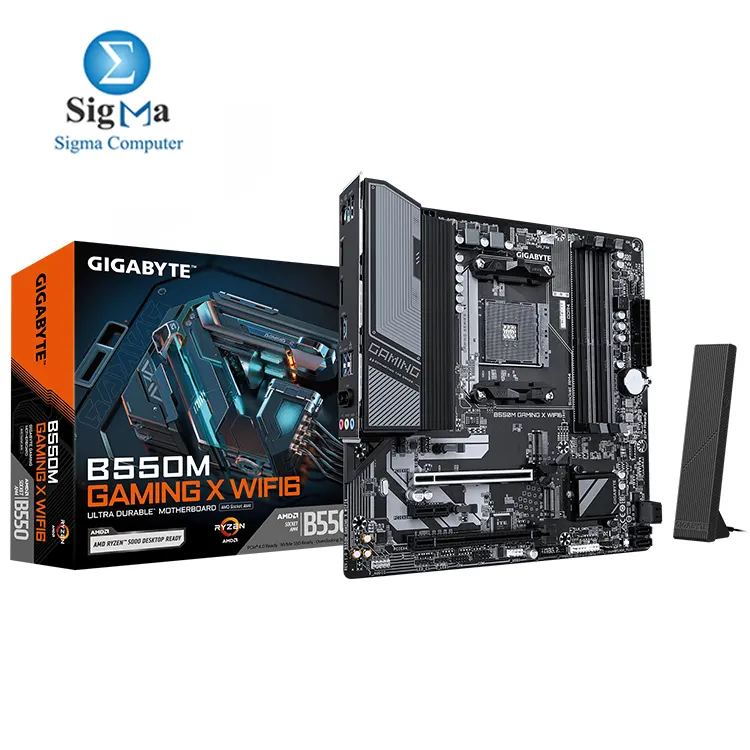

Gigabyte B550M GAMING X WIFI6

Model:

B550M GAMING X WIFI6

CPU Support:

AMD Ryzen 5000 / 4000G / 3000 / 3000G Series (Socket AM4)

Chipset:

AMD B550

DIMM Slots:

4 x DDR4

Max Memory support:

Up to 128GB DDR4 3200+(OC)

PCI-E Slots:

1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1

M.2 Slots:

2 x M.2 (PCIe 4.0/3.0 x4 & PCIe 3.0 x2/SATA)

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

2

RGB Headers:

2

Fan Headers:

3 (1 CPU + 2 System)

Front Type C Headers:

1 x USB 3.2 Gen1 Type-C

Front USB 3 Headers:

1 x USB 3.2 Gen1 Header (2 ports)

USB 2.0 Headers:

1 x Header (2 ports)

Flash BIOS Buttons:

1 x Q-Flash Plus Button

Clear COMS Buttons:

1 x Clear CMOS Jumper

Onboard Graphics Outputs:

1 x HDMI 2.1, 1 x DisplayPort 1.4

PS/2 Combo Ports:

1

USB Ports:

4 x USB 3.2 Gen1, 2 x USB 2.0 (rear)

USB Type C Ports:

1 (via internal header)

Ethernet LAN Port:

Realtek GbE LAN (1 Gbps)

Bluetoooht & Wireless:

Realtek Wi-Fi 6 (802.11ax) + Bluetooth 5.3

Audio Jacks:

3 x 3.5mm

Operating System:

Windows 11 / 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
