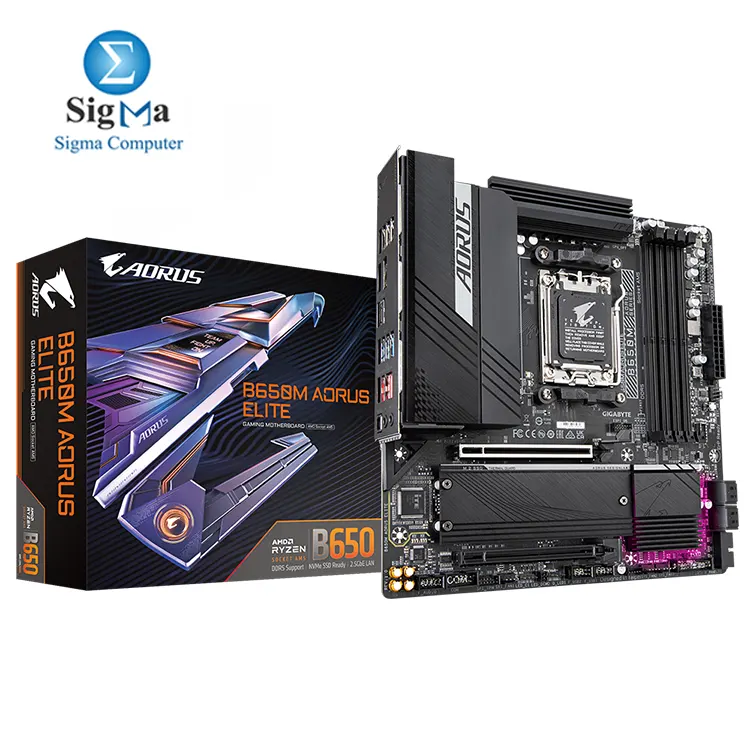

Gigabyte B650M AORUS ELITE (rev. 1.3)

Model:

B650M AORUS ELITE (rev. 1.3)

CPU Support:

AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Chipset:

AMD B650

DIMM Slots:

4 x DDR5 DIMM slots

Max Memory support:

Up to 256GB (DDR5 8000MHz OC)

PCI-E Slots:

1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4

M.2 Slots:

2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4)

SATA III:

4 x SATA 6Gb/s ports

ARGB Headers:

2 x Addressable LED strip headers

RGB Headers:

2 x RGB LED strip headers + 1 x CPU cooler LED strip header

Fan Headers:

1 x CPU fan, 1 x CPU pump, 3 x system fan, 1 x system pump

Front Type C Headers:

1 x USB 3.2 Gen 2x2 Type-C

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header (2 ports)

USB 2.0 Headers:

2 x USB 2.0 headers (4 ports)

Flash BIOS Buttons:

Yes (Q-Flash Plus Button)

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

1 x HDMI 2.1, 1 x DisplayPort 1.4

USB Ports:

Rear: 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: multiple via headers (as above)

USB Type C Ports:

Rear: 1 x USB Type-C (USB 3.2 Gen 2) Front: 1 x USB Type-C (USB 3.2 Gen 2x2) Ethernet LAN Port: Realtek® 2.5GbE LAN

Ethernet LAN Port:

Realtek® 2.5GbE LAN

Audio Jacks:

2 x audio jacks (support 7.1 via software configuration)

Optical:

1 x Optical S/PDIF Out

Operating System:

Windows 11 64-bit, Windows 10 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
