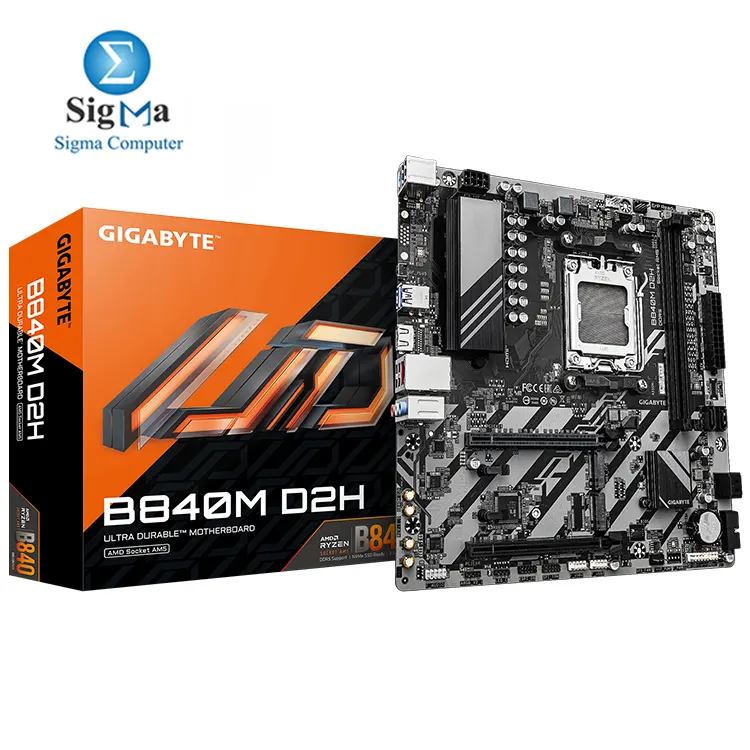

GIGABYTE B840M D2H Motherboard - AMD AM5, DDR5

Model:

B840M D2H

CPU Support:

AMD Ryzen 7000 / 8000 / 9000 Series (AM5)

Chipset:

AMD B840

DIMM Slots:

2 x DDR5

Max Memory support:

128 GB

PCI-E Slots:

1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x4

M.2 Slots:

2 x M.2 (1 CPU PCIe 4.0 x4/x2, 1 Chipset PCIe 3.0 x2)

SATA III:

4 x SATA 6Gb/s

ARGB Headers:

2 x Addressable RGB Gen2

RGB Headers:

1 x RGB LED strip header

Fan Headers:

1 x CPU fan, 1 x CPU fan/water pump, 1 x system fan

Front Type C Headers:

1 x USB 3.2 Gen 1 header

Front USB 3 Headers:

1 x USB 3.2 Gen 1 header

USB 2.0 Headers:

2 x USB 2.0/1.1 headers

Flash BIOS Buttons:

Q-Flash Plus

Clear COMS Buttons:

1 x Clear CMOS jumper

Onboard Graphics Outputs:

1 x HDMI 2.1 (4096x2160@60Hz)

PS/2 Combo Ports:

1

USB Ports:

6 (2 x USB 3.2 Gen 1 + 4 x USB 2.0/1.1)

Ethernet LAN Port:

Realtek 2.5GbE LAN

Audio Jacks:

3 x audio jacks

Operating System:

Windows 10 / 11 64-bit

Form Factor:

Micro ATX (24.4cm x 24.4cm)
