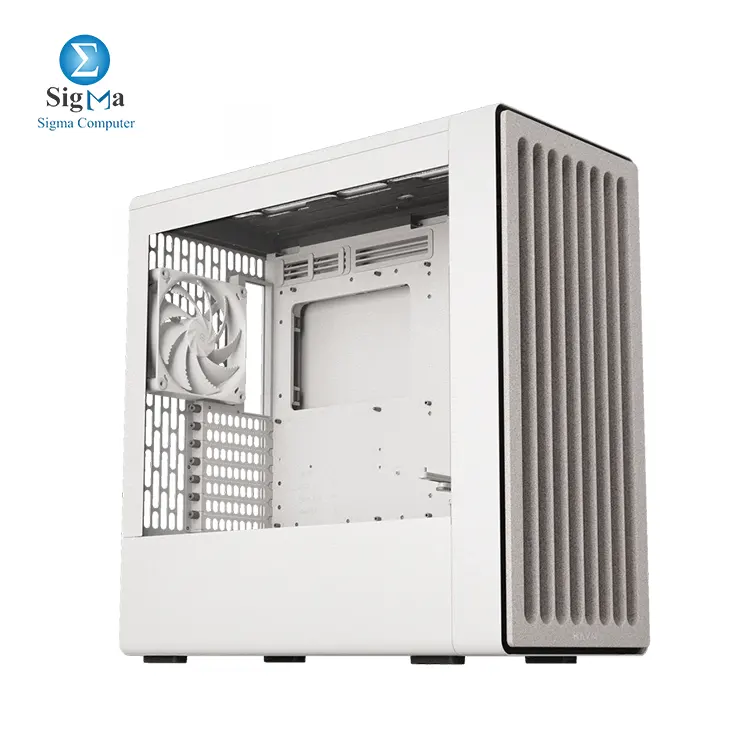

HAVN BF 360 Flow White

Brand:

HAVN

Model:

BF 360 FLOW

Type:

Mid Tower

Color:

White

Case Material:

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

Motherboard Compatibility:

E-ATX / ATX / Micro-ATX / ITX

Side Panel Window:

Tempered Glass

Dust Filters:

Front (Built-in), Top (Built-in), Rear Bottom (Removable)

Internal 3.5" Drive Bays:

Up to 3 (2 Right Mount + 1 Cable Tray)

Internal 2.5" Drive Bays:

Up to 6 (4 Right Mount + 2 Cable Tray)

Expansion Slots:

7

Front Ports:

USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio Jack x1, Power & Reset Button x1

Fan Options:

Top: 2x180 / 2x140 / 3x120 mm, Front: 2x180 mm, Rear: 1x140 / 1x120 mm (Max 6 Fans)

Radiator Options:

Top: 240 / 280 / 360 mm (AIO up to 60mm thickness)

Max GPU Length:

410 mm

Max CPU Cooler Height:

195 mm

Max PSU Length:

200 mm (Clearance 260 mm)

Dimensions (H x W x D):

522.6 x 254 x 515 mm

Features:

Fan PWM Repeater (6 Ports), GPU Support (1–4.5 Slots), SATA Power Connector, Magnetic Components

Package Content:

2x H18 Fans (Front), 1x H14 Fan (Rear)
