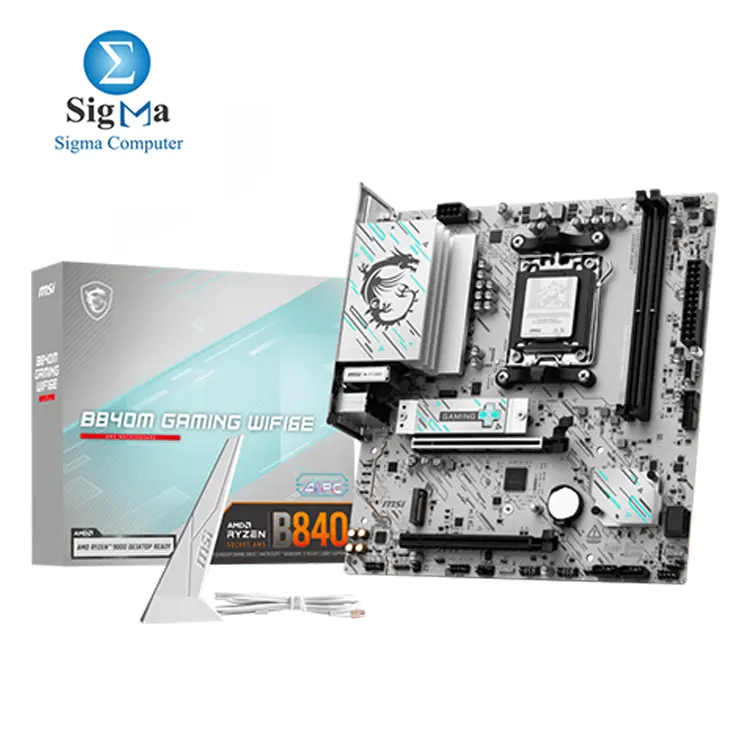

MSI B840M GAMING WIFI6E

Model:

MSI B840M GAMING PLUS WIFI6E

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)

Chipset:

AMD B840

DIMM Slots:

2x DDR5 UDIMM

Max Memory support:

128GB DDR5 up to 8200+ MT/s (OC)

PCI-E Slots:

2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 3.0 x4)

M.2 Slots:

2x PCIe 4.0 x4 (2280/2260)

SATA III:

4x SATA 6Gb/s

ARGB Headers:

3x ARGB (JARGB_V2)

RGB Headers:

1x RGB (JRGB)

Fan Headers:

1x CPU Fan, 2x System Fan

Front Type C Headers:

1x USB 5Gbps Type-C

Front USB 3 Headers:

2x USB 5Gbps Type-A

USB 2.0 Headers:

4x USB 2.0

Flash BIOS Buttons:

1x Rear

Clear COMS Buttons:

1x Rear

Onboard Graphics Outputs:

1x HDMI 2.1, 1x DisplayPort 1.4 (CPU dependent)

PS/2 Combo Ports:

None

USB Ports:

4x USB 5Gbps Type-A, 2x USB 2.0

USB Type C Ports:

1x Front Type-C, 1x Rear Type-C (5Gbps)

Ethernet LAN Port:

Realtek 8125D 2.5G LAN

Bluetoooht & Wireless:

Wi-Fi 6E, Bluetooth 5.3

Audio Jacks:

3x Audio Jacks (Realtek ALC897, 7.1 HD Audio)

Optical:

No

Operating System:

Windows 11 64-bit

Form Factor:

mATX (226mm x 243.84mm)
