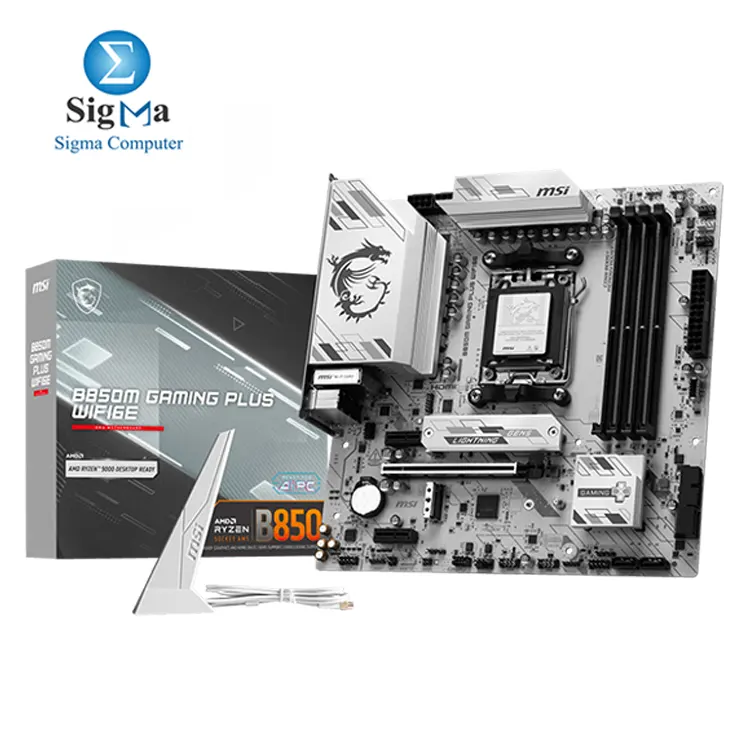

MSI B850M GAMING PLUS WIFI6E Motherboard

Model:

B850M GAMING PLUS WIFI6E

CPU Support:

AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5)

Chipset:

AMD B850

DIMM Slots:

4x DDR5 UDIMM

Max Memory support:

256GB DDR5 (8200+ MT/s OC)

PCI-E Slots:

1x PCIe 4.0 x16, 2x PCIe 3.0 x1

M.2 Slots:

2x (1x PCIe 5.0 x4, 1x PCIe 4.0 x4)

SATA III:

4x SATA 6Gb/s

ARGB Headers:

3x Addressable RGB (JARGB_V2)

RGB Headers:

1x RGB (JRGB)

Fan Headers:

1x CPU Fan, 1x Pump/Combo, 3x System Fan

Front Type C Headers:

1x USB 10Gbps Type-C

Front USB 3 Headers:

2x USB 5Gbps Type-A

USB 2.0 Headers:

4x USB 2.0

Flash BIOS Buttons:

Yes

Clear COMS Buttons:

Yes

Onboard Graphics Outputs:

1x HDMI 2.1, 1x DisplayPort 1.4

USB Ports:

4x USB 5Gbps Type-A (Rear), 3x USB 10Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front), 4x USB 2.0 (Front)

USB Type C Ports:

1x USB 10Gbps Type-C (Rear), 1x USB 10Gbps Type-C (Front)

Ethernet LAN Port:

Realtek 8125D 2.5G LAN

Bluetoooht & Wireless:

Wi-Fi 6E, Bluetooth 5.3

Audio Jacks:

HD Audio connectors (Realtek ALC897, 7.1 Channel)

Operating System:

Windows 11 64-bit

Form Factor:

mATX (243.84mm x 243.84mm)
