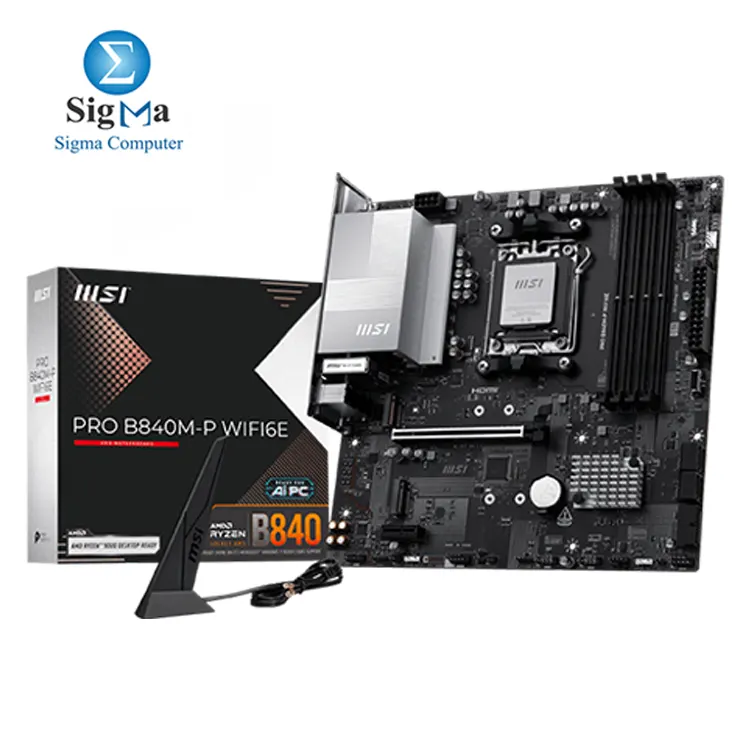

MSI PRO B840M-P WIFI6E

Model:

MSI PRO B840M-P WIFI6E

CPU Support:

AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)

Chipset:

AMD B840

DIMM Slots:

4x DDR5 UDIMM

Max Memory support:

256GB, DDR5 8000+ (OC) / 5600–4800 (JEDEC) MT/s

PCI-E Slots:

1x PCIe 4.0 x16, 1x PCIe 3.0 x1

M.2 Slots:

2x M.2 PCIe 4.0 x4

SATA III:

4x SATA 6Gb/s

ARGB Headers:

3x ARGB (JARGB_V2)

RGB Headers:

1x RGB (JRGB)

Fan Headers:

1x CPU Fan, 1x Combo Fan (Pump/Sys), 3x System Fan

Front Type C Headers:

1x USB 5Gbps Type-C

Front USB 3 Headers:

2x USB 5Gbps Type-A

USB 2.0 Headers:

4x USB 2.0

Flash BIOS Buttons:

Yes (Rear I/O)

Clear COMS Buttons:

Yes (Rear I/O)

Onboard Graphics Outputs:

1x HDMI 2.1 (4K@60Hz, CPU dependent)

PS/2 Combo Ports:

None

USB Ports:

Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

USB Type C Ports:

1x Rear (10Gbps), 1x Front (5Gbps)

Ethernet LAN Port:

Realtek 8125D 2.5G LAN

Bluetoooht & Wireless:

Wi-Fi 6E, Bluetooth 5.3

Audio Jacks:

Realtek ALC897, 7.1-Channel HD Audio

Optical:

No

Operating System:

Windows 11 64-bit

Form Factor:

mATX (243.84mm x 243.84mm)
