XIGMATEK Elysium II Full Tower Case - Key Specs:

• Material: 1.0mm SPCC Steel
• Dimensions: 552x271x773mm (LxWxH)
• Motherboard Support: SSI EEB, SSI CEB, EATX, ATX, Micro ATX, Mini ITX
• Drive Bays:
  • 3.5"/2.5" x9 (HDD/SSD Tray)
  • 2.5" x7 (MB & Rear MB Panel)
• Fan Support: Up to 16 fans
• Radiator Support: Up to 480mm (Front), 420mm (Top), 280mm (Rear)
• Clearances:
  • CPU Cooler: 220mm
  • GPU: 460mm
  • PSU: 240mm (Dual PSU Design)
• I/O Ports: USB-C x1, USB 3.0 x2, USB 2.0 x1, HD Audio

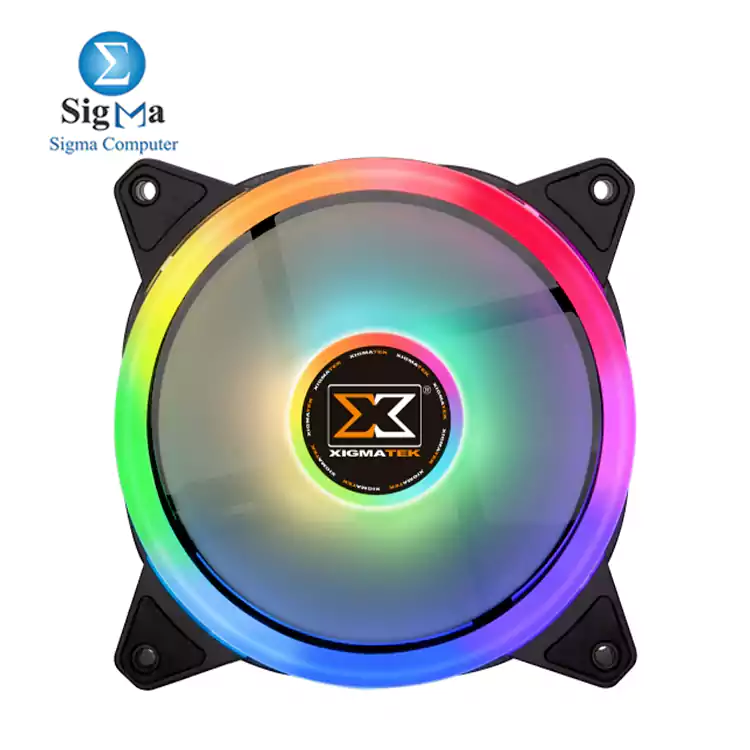

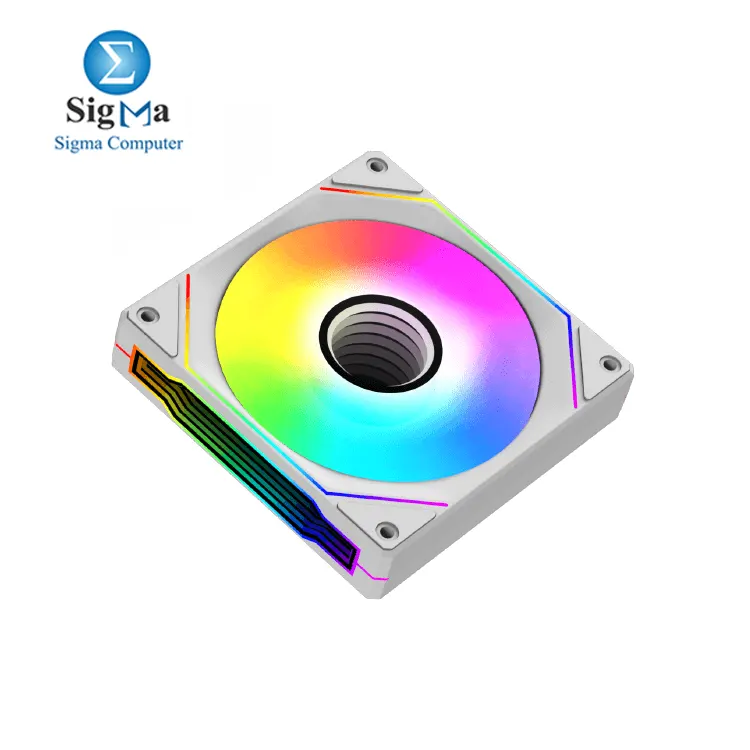

Xigmatek Infinity G20A Arctic ARGB Fan:

• LED Type: Addressable RGB
• Dimensions: 120x120x25mm
• Noise: <19.80 dBA
• Max RPM: 1200 RPM
• Airflow: 40.60 CFM
• Bearing Type: Long Life Hydro Bearing
• LED Display: Infinity Ring Center Hub & Two Side
• Power Draw: 5V 0.10A (LED), 12V 0.18A (Fan)
• Life Span: 30,000 hours
• Operating Voltage: DC 5.0V~13.8V

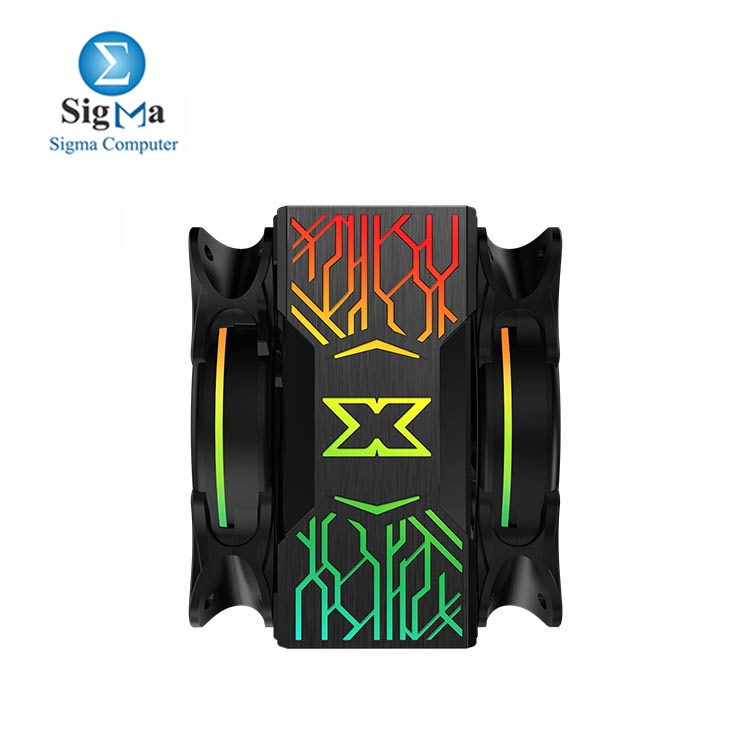

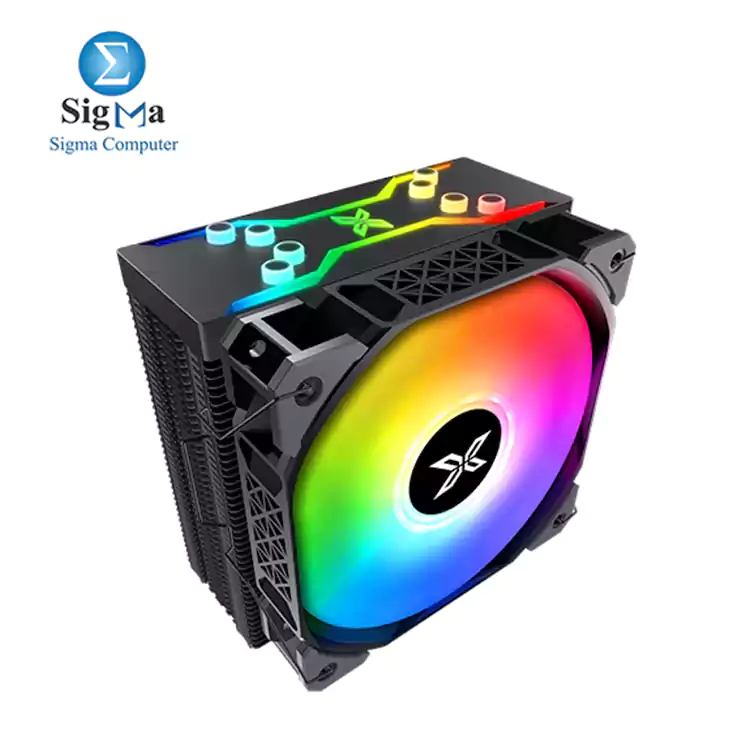

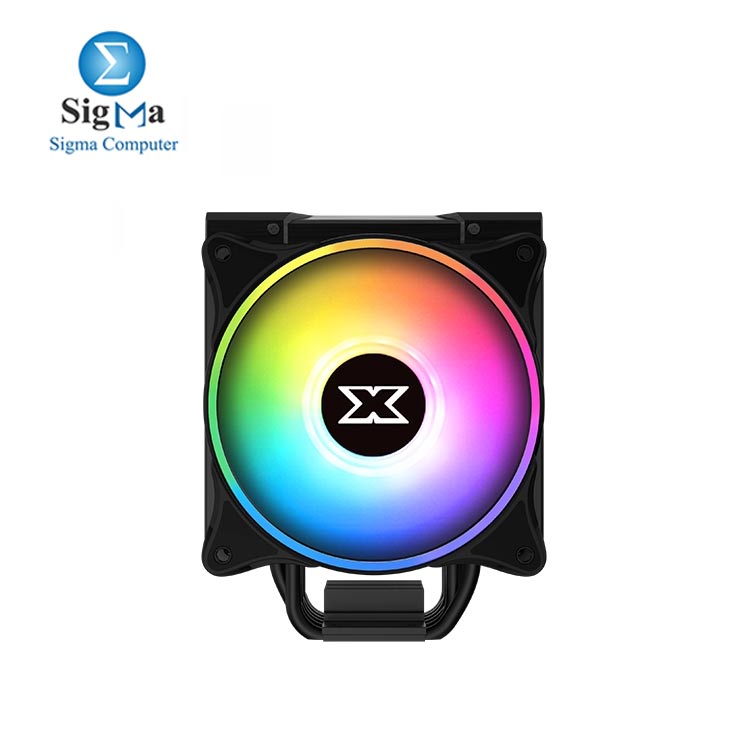

• Dimensions (LxWxH): 125x90x154 mm
• Heat Sink Material: 4 Heat Pipes / Aluminum Fins
• CPU Support: Intel LGA 1700/1200/115x, AMD AM5/AM4
• TDP: 210W
• Fan Speed: 800-1800 RPM ±10%
• Air Flow: 78 CFM (Max)
• Noise Level: ≦ 28 dBA
• LED: ARGB
• Connector: 4P PWM, 3P ARGB
• Power Consumption: ≦ 3W

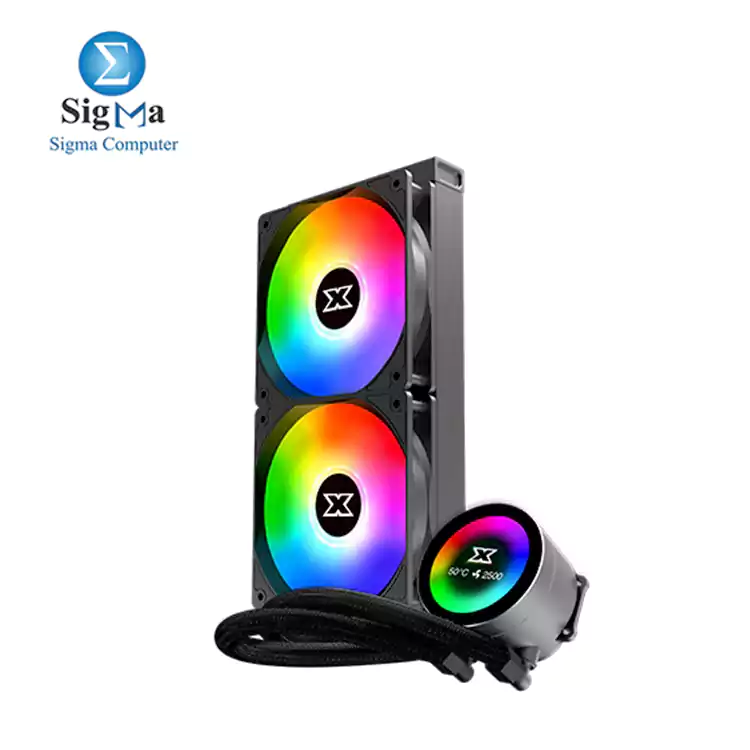

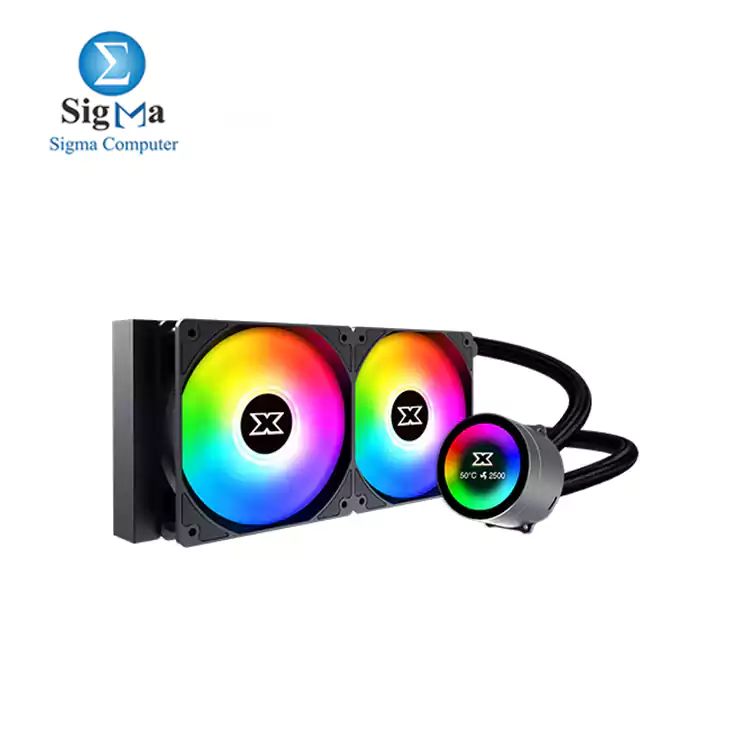

Xigmatek LK 240 Digital ARGB AIO Liquid CPU Cooler specifications:

• CPU Support: Intel LGA 18XX/1700/1200/115X, AMD AM5/AM4
• Radiator Dimensions: 277x120x27mm (Aluminum)
• Tube Length: 330mm (Black Sleeved)
• Pump Dimensions: 82x68x47.5mm (Ceramic Bearing)
• Pump RPM: 600~3000 RPM ±10%
• Pump Noise: ≤15dBA
• TDP: 280W
• Fan Dimensions: 240x120x25mm (RGB Lighting)
• Fan RPM: 600~2000 RPM ±10%
• Fan Airflow: 82.8 CFM x2
• Fan Noise: ≤29.8dBA

Xigmatek LK 360 Digital Arctic ARGB AIO Liquid CPU Cooler:

• CPU Support: Intel LGA 18XX/1700/1200/115X, AMD AM5/AM4
• Radiator Dimensions: 394 x 120 x 27 mm (Aluminum)
• Pump RPM: 600~3000 RPM ±10%, Noise ≤15 dBA, Rated Voltage: 12V DC, Power Consumption ≤4.2W
• TDP: 320W
• Fans: 360 x 120 x 25 mm, 3 Fans, RGB Lighting
  • RPM: 600~2000 RPM ±10%, Airflow: 82.8 CFM, Noise: ≤29.8 dBA

 Xigmatek LK 360 Digital ARGB AIO Liquid CPU Cooler:

• CPU Support: Intel LGA 18XX/1700/1200/115X, AMD AM5/AM4
• Radiator Dimensions: 394 x 120 x 27 mm, Aluminum
• Tube Length: 400 mm Black Sleeved Tube
• Pump RPM: 600–3000 RPM, Ceramic Bearing
• TDP: 320W
• Fan Dimensions: 360 x 120 x 25 mm, Addressable RGB Rainbow Lighting
• Fan RPM: 600–2000 RPM, Long Life Hydro Bearing
• Fan Airflow: 82.8 CFM (x3)
• Noise: Pump ≤15 dBA, Fan ≤29.8 dBA

• CPU Support: Intel® (LGA 1851/1700/1200/115X/20XX), AMD® (AM5/AM4)
• Radiator Size: 397 x 120 x 27 mm, Aluminum
• Tube Length: 450mm White Sleeved
• Pump Dimensions: 90 x 76 x 67 mm, LCD Pump Head
• Pump RPM: 2700 ±10%, ≤27dBA Noise, 12VDC, 0.48A
• TDP: 320W
• Fan Size: 360 x 120 x 28 mm, RGB Lighting, 800-2100 ±10% RPM
• Fan Airflow: 80CFM x3, 12VDC, 0.65A

• ARGB Lighting: Customizable effects for enhanced aesthetics.
• Compatibility: Supports PCI-E 6+2P and CPU 4+4P connectors.
• Mini Controller: Easy lighting control included.
• Cable Management: Clean and organized look.
• Easy Installation: Quick and seamless setup

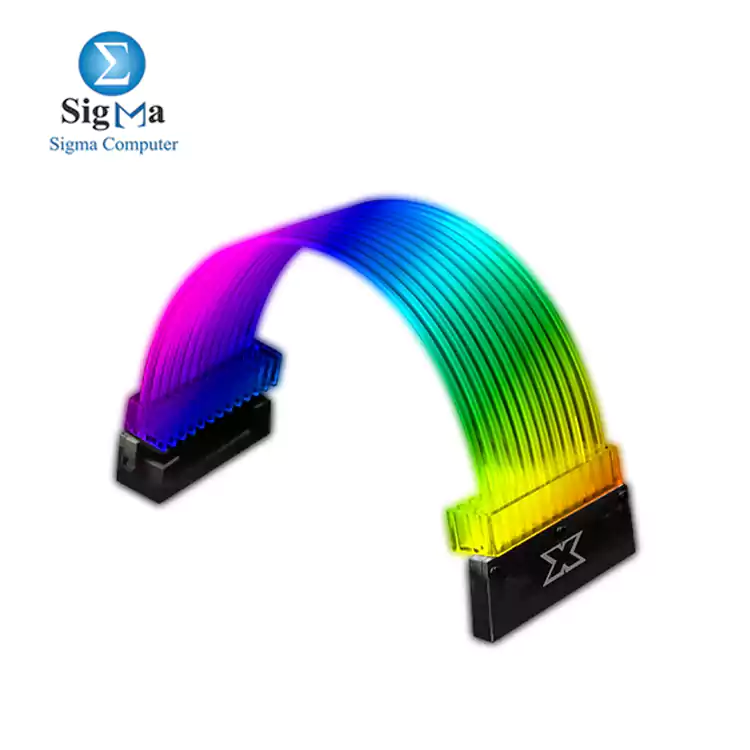

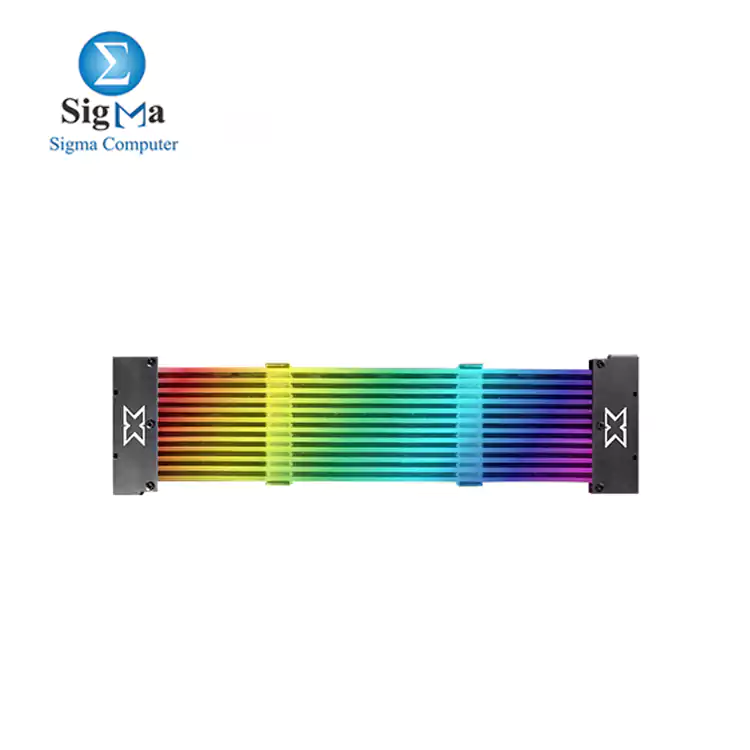

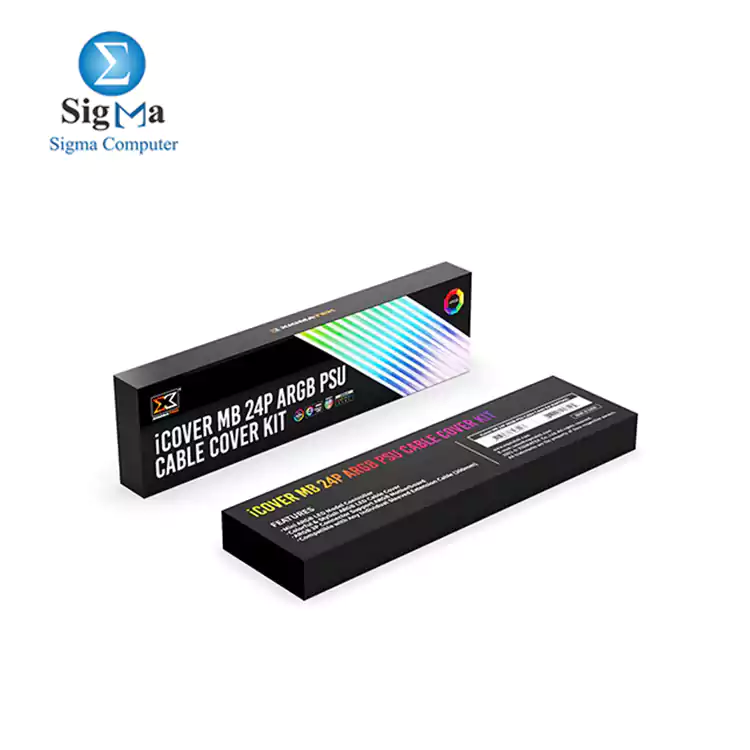

• ARGB LED Cable Cover for stylish and colorful lighting.
• Compatible with any PSU: Works with MB 24P
• Includes Mini ARGB Controller for non-ARGB motherboards.
• Cable Lengths: MB 24P (300mm)
• Supports ARGB Sync with compatible motherboards.

Xigmatek Meta Arctic

• Dimensions: 430 x 238 x 495 mm (L x W x H)
• Motherboard Support: E-ATX, ATX, Micro ATX, Mini ITX
• Cooling:
  • Top: 3x 120mm / 2x 140mm (Supports 280/360mm radiators)
  • Rear: 1x 120mm (120mm radiator)
  • MB Panel: 3x 120mm (240mm radiator)
• Clearance:
  • GPU: Up to 400mm
  • CPU Cooler: Up to 175mm
  • PSU: Up to 220mm
• Drive Bays: 2x 3.5", 2x 2.5"
• Expansion Slots: 7 (Vertical GPU support)
• I/O Ports: 2x USB 3.0, 1x USB-C, HD Audio

Xigmatek Hero II Air Case

• Material: Steel.
• Dimensions: 388x195x448mm.
• Drive Bays: 2 x 3.5"/2.5" combo, 2 x 2.5" SSD.
• Motherboard Support: ATX, M-ATX, Mini-ITX.
• Fan Support:
  • Top: 2 x 120mm/140mm.
  • Front: 3 x 120mm (ARGB pre-installed).
  • Rear: 1 x 120mm.
• Radiator Support: Front: 360mm, Rear: 120mm.
• Clearance:
  • CPU cooler: 165mm.
  • GPU: 340mm.
  • PSU: 165mm.
• I/O Ports: USB 3.0 x 1, USB 2.0 x 2, HD Audio, LED switch.

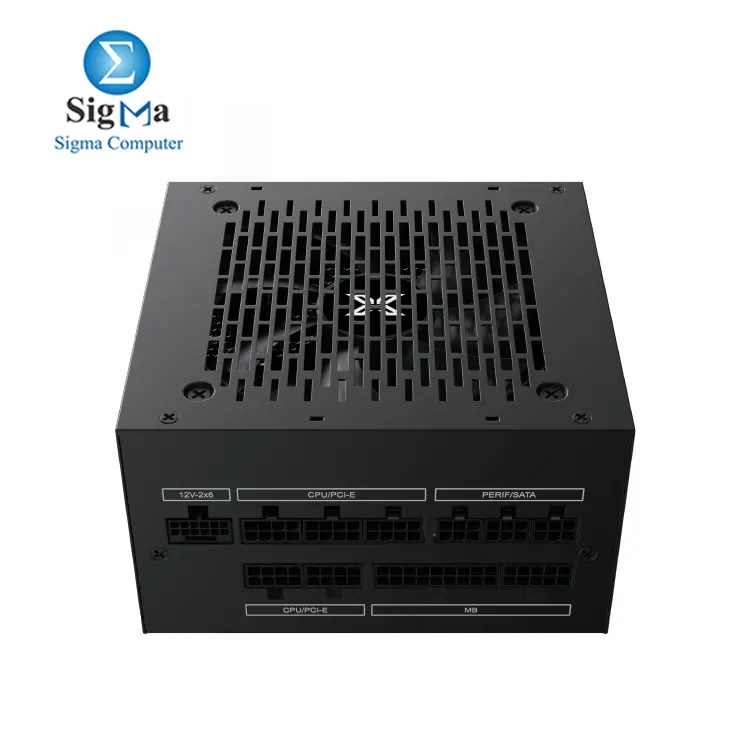

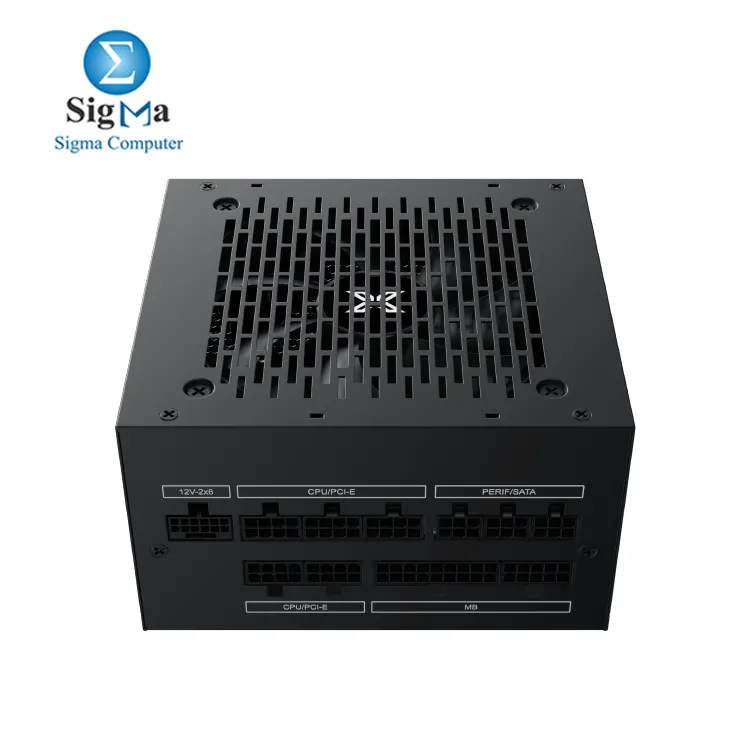

Xigmatek X-POWER 750W PSU

• Output: 750W.
• Efficiency: 80+ White certified.
• Protection: Over-voltage & short-circuit.
• Compatibility: Supports high-performance setups.

Xigmatek Cubi M Nano Micro Tower Case:

• Dimensions: 350x280x375mm
• Motherboard Support: Micro ATX, Mini ITX
• Drive Bays: 1 x 3.5" HDD, 2 x 2.5" SSD
• Fan Support: Top (2x120mm/2x140mm), MB Panel (2x120mm), Bottom (2x120mm/2x140mm), Rear (1x120mm)
• PSU Limitation: 160mm
• CPU Cooler Clearance: 158mm
• Expansion Slots: 4
• I/O Panel: 1 x USB 3.0, 1 x USB 2.0, HD Audio
• Radiator Support: Top, MB, Bottom (240mm)
• GPU Length Limitation: 330mm

• Material: Steel with 3 tempered glass panels
• Dimensions: 431 x 277 x 431 mm (LxWxH)
• Drive Bays:
  • 3.5" HDD x2
  • 2.5" SSD x3
• Expansion Slots: 7 slots, supporting vertical GPU installation
• Motherboard Compatibility: E-ATX, ATX (supports back plug), Micro ATX (supports back plug), Mini ITX
• Power Supply: Standard PS2 ATX PSU, max length 200mm
• Cooling and Fan Support:
  • Top: Up to 3 x 120mm or 2 x 140mm fans
  • MB Panel: 3 x 120mm fans (reverse fan blade design)
  • Bottom: Up to 3 x 120mm or 2 x 140mm fans (reverse fan blade design)
  • Rear: 1 x 120mm fan (pre-installed traditional blade)
• Radiator Support:
  • Top: 280mm or 360mm
  • MB Panel: 360mm
  • Bottom: 360mm (for m-ATX motherboard only)
• Clearance:
  • CPU Cooler: Up to 165mm
  • GPU Length: Up to 370mm (supports vertical installation)
• I/O Ports (Top-Mounted):
  • Power Button, Reset Button
  • HD Audio Jack
  • 2 x USB 3.0, 1 x USB-C
• Special Features:
  • Superior airflow and ventilation design
  • Combination of traditional and reverse fan blade placements

Product Name: Xigmatek Meta Super Tower Case

Dimensions:

• 430mm (L) x 238mm (W) x 495mm (H)

Motherboard Support:

• E-ATX, ATX, Micro ATX, Mini ITX

Drive Bays:

• HDD Cage: 3.5” x2
• SSD Cage: 2.5” x2

Fan Support:

• Top: 120mm x3 or 140mm x2
• MB Panel: 120mm x3
• Rear: 120mm x1

PSU Length Limitation:

• 220mm

CPU Cooler Clearance:

• 175mm

Material:

• Steel

Expansion Slots:

• 7 Standard Slots
• Support for Vertical VGA Card Installation

Power Supply:

• Standard PS2
• ATX PSU

I/O Panel:

• USB 3.0 x2
• USB-C x1
• HD Audio Jack

Radiator Support:

• Top: 280/360mm
• MB Panel: 240mm (E-ATX motherboard width ≤28.5cm)
• Rear: 120mm

GPU Length Limitation:

• 400mm

Additional Features:

• Tempered Glass Panels: Two tempered glass panels for a stylish design.
• Removable MB Panel Fan Cover:
  • With cover: supports 2x 120mm fans
  • Without cover: supports 3x 120mm fans
• Dust Filters: Pre-installed on the top, bottom, and right side panels.
• Superior Airflow and Ventilation: Designed with traditional and reverse fan blades to optimize cooling.

Front Mount I/O Ports:

• Power Button
• Reset Button
• USB-C x1
• USB 3.0 x2
• HD Audio Jack

• Model: Pano
• Case Size: Super Tower
• Panel: Airflow with Tempered Glass
• Motherboard Support: ATX, E-ATX, m-ATX, Mini ITX
• Fans Included: 7 fans
• Expansion Slots: 7
• Fan Support: 10 x 120mm fans
• Radiator Support: 360mm (Top)
• GPU Length: 410mm
• CPU Cooler Height: 160mm
• PSU Support: 220mm
• Pre-installed PSU: Not included
• I/O Ports:
  • HD Audio
  • LED Switch
  • Reset Button
  • 2 x USB 2.0
  • 1 x USB 3.0
• 3.5" Drive Bays: 1
• 2.5" Drive Bays: 2
• Color: Black

Xigmatek Alphard ARGB
Design: This case features a modern design with ARGB (Addressable RGB) lighting, allowing for customizable lighting effects.
Size: It’s a super tower case, meaning it has a large form factor, which is great for high-end builds with extensive cooling and expansion options.
Cooling: Typically, super tower cases like the Alphard have ample space for multiple cooling options, including support for large radiators and numerous fans.
Expansion: It usually includes multiple drive bays, expansion slots, and space for large graphics cards.

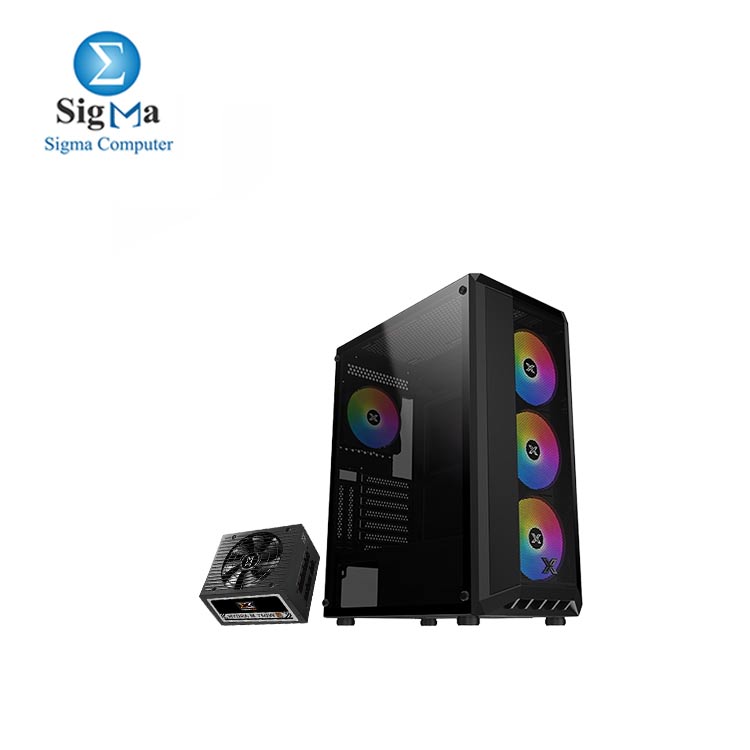

Asgard 850W 80+ Bronze Power Supply
Wattage: 850W, which is sufficient for most high-performance builds.
Efficiency: 80+ Bronze certification means it has good energy efficiency, translating to less power wasted as heat.
Build Quality: Generally, 80+ Bronze PSUs offer reliable performance and stability.

Combining these two components can give you a powerful and aesthetically pleasing se

XIGMATEK Vision Full Tower Case specifications:

• Motherboard Support: Up to E-ATX, supports ATX back-plug designs.
• CPU Cooler Clearance: Up to 180mm.
• Fan Support: Up to 8 fans, traditional and reverse fan blades, with ARGB & PWM hub support.
• Power Supply Clearance: Up to 220mm.
• GPU Length Limit: Up to 420mm, with support for vertical GPU installation.
• Radiator Support: Up to 360mm.
• Storage Mounting Options: SSD/HDD brackets and flip covers on rear motherboard panel.
• Airflow & Ventilation: Superior design with bottom-mounted magnetic dust filter.
• Side I/O Ports: Includes access to essential I/O.
• Glass Panels: Features 3 tempered glass panels for an aesthetic display.
• Smart Fan Control: LCD display panel with a user guide for easy configuration.

Xigmatek Vision Pro Case - Key Specs:

• Dimensions: 450x258x533mm (LxWxH)
• Fan Support:
  • Motherboard: Up to 4x 120mm or 3x 140mm
  • PSU Shroud: Up to 3x 120mm
  • Rear: 1x 120mm or 140mm
• Drive Bays:
  • Rear MB Panel: 1x 3.5" or 2x 2.5" SSDs
  • Flip Cover Options: Various HDD/SSD combinations
• Clearances:
  • CPU Cooler: 180mm height
  • PSU: 220mm length
  • GPU: 420mm length
• Material: Steel
• Expansion Slots: 9 (supports horizontal/vertical GPU installation)
• Motherboard Support: EATX, ATX, Micro ATX, Mini ITX
• Radiator Support: Up to 480mm (motherboard area)
• I/O Panel: USB 3.0 x2, Type-C, HD Audio

The XIGMATEK Endorphin Air Arctic V2 is a well-designed case that offers several features for users looking for a functional and aesthetically pleasing build. Here’s a breakdown of its key features based on your description:

1. Form Factor:

   • E-ATX Compatibility: This allows for larger motherboards, providing flexibility for high-performance builds.

2. USB Ports:

   • U3 x2 & Type C: The inclusion of USB 3.0 ports and a Type-C port offers modern connectivity options for your peripherals.

3. Mesh PSU Shroud:

   • The mesh design promotes better airflow and cooling for the power supply unit (PSU), which is essential for maintaining optimal temperatures in high-performance systems.

4. Glass Panels:

   • 2 PCS Seamless Tempered Glass: This feature allows for a clear view of the interior components while providing a sleek look.

5. Cooling Fans:

   • 4 PCS S20A Arctic & Galaxy II: The included fans help in providing effective airflow, which is crucial for keeping your components cool, especially during heavy usage.

6. Remote Control:

   • The remote control feature allows for convenient management of fan speeds and lighting settings.

Summary

The XIGMATEK Endorphin Air Arctic V2 case is ideal for users who prioritize aesthetics and performance. Its modern features, including USB Type-C support and tempered glass panels, make it a great choice for gamers, content creators, and anyone looking to build a stylish and efficient PC.

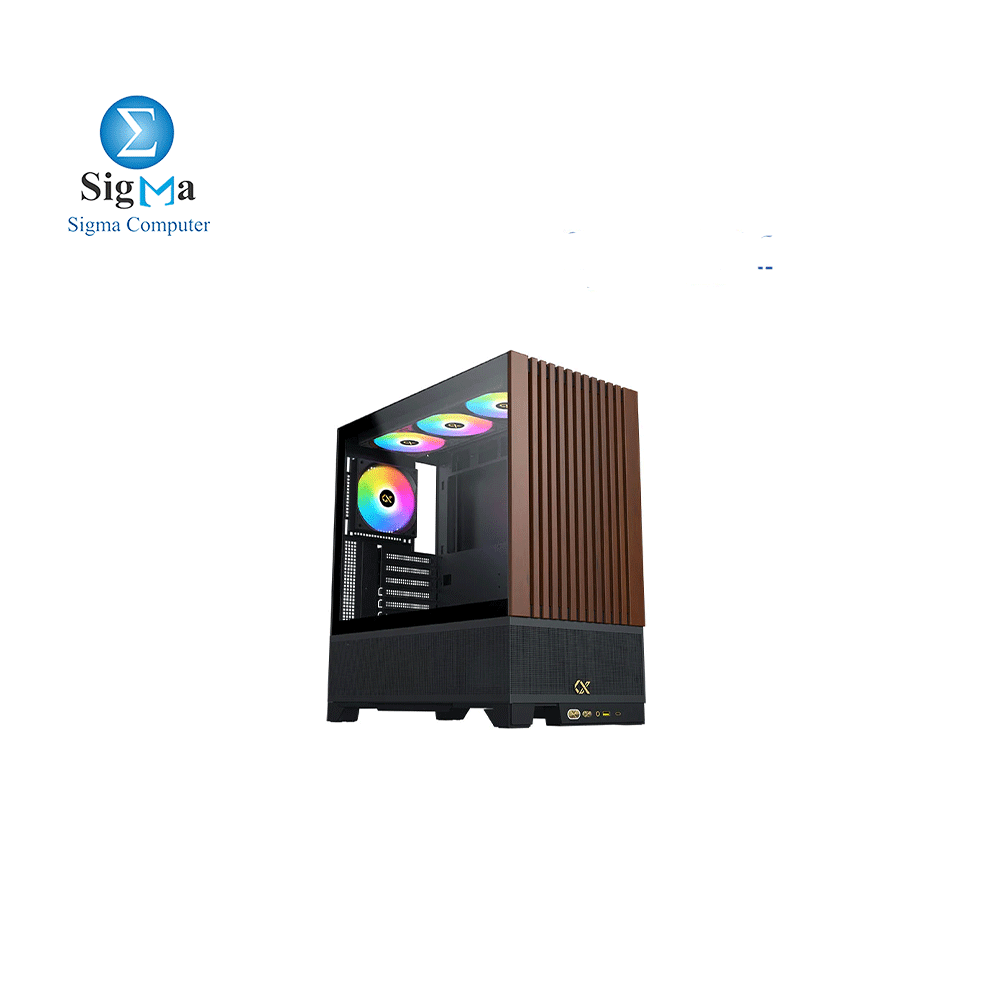

XIGMATEK Endorphin WD Arctic case:

• Form Factor: EATX (Extended ATX), allowing for larger motherboard support.
• Front Panel: Made of wood, giving it a unique and stylish look.
• Side Panel: Left side tempered glass (TG), offering a clear view of the internal components.
• USB Ports: 1 x USB 3.0 and 1 x USB Type-C for fast data transfer.
• Cooling: Comes with 4 pre-installed S20A Arctic fans, ensuring optimal airflow.
• Galaxy II Box: Likely refers to an included fan controller or lighting control system, enhancing the customization options.

This case is designed for those who want a mix of aesthetics and high performance

Elevate your PC build with the Xigmatek Master X II Pro ARGB Super Tower Case, designed for superior airflow and ventilation. This case supports motherboards up to E-ATX size, providing ample space for high-performance components.

Key Features:

• Superior Airflow Design: Optimized airflow with support for multiple fans and radiators to keep your system cool.

• Fan Support:

  • Top: Up to 3 x 120mm or 3 x 140mm fans
  • Front: Up to 3 x 120mm or 3 x 140mm fans
  • Motherboard: Up to 2 x 120mm fans (for E-ATX motherboards with a width ≤ 280mm)
  • Rear: 1 x 120mm fan

• Radiator Support:

  • Front: Up to 360mm radiator
  • Top: Up to 360mm radiator
  • Rear: Up to 120mm radiator

• PSU Limitation: Supports power supply units up to 220mm in length.

• CPU Cooler Compatibility: Accommodates CPU coolers with a height of up to 165mm.

• GPU Length Limitation:

  • Up to 280mm with fan installed on the motherboard panel
  • Up to 410mm without fan on the motherboard panel

• Drive Bays:

  • HDD Cage (Bottom): 1 x 3.5″
  • HDD Cage (Top): 1 x Combo (3.5″ & 2.5″)
  • SSD Bracket: 2 x 2.5″

• Top Mount I/O Ports:

  • Power Button
  • Reset Button
  • 1 x USB 3.0
  • 2 x USB 2.0
  • HD Audio Jack

Elevate your PC build with the Xigmatek Master X II Pro ARGB Super Tower Case, designed for superior airflow and ventilation. This case supports motherboards up to E-ATX size, providing ample space for high-performance components.

Key Features:

• Superior Airflow Design: Optimized airflow with support for multiple fans and radiators to keep your system cool.

• Fan Support:

  • Top: Up to 3 x 120mm or 3 x 140mm fans
  • Front: Up to 3 x 120mm or 3 x 140mm fans
  • Motherboard: Up to 2 x 120mm fans (for E-ATX motherboards with a width ≤ 280mm)
  • Rear: 1 x 120mm fan

• Radiator Support:

  • Front: Up to 360mm radiator
  • Top: Up to 360mm radiator
  • Rear: Up to 120mm radiator

• PSU Limitation: Supports power supply units up to 220mm in length.

• CPU Cooler Compatibility: Accommodates CPU coolers with a height of up to 165mm.

  Power Supply

• Type: Standard PS2 ATX PSU
• Length Limitation: Up to 220mm

• GPU Length Limitation:

  • Up to 280mm with fan installed on the motherboard panel
  • Up to 410mm without fan on the motherboard panel

• Drive Bays:

  • HDD Cage (Bottom): 1 x 3.5″
  • HDD Cage (Top): 1 x Combo (3.5″ & 2.5″)
  • SSD Bracket: 2 x 2.5″

• Top Mount I/O Ports:

  • Power Button
  • Reset Button
  • 1 x USB 3.0
  • 2 x USB 2.0
  • HD Audio Jack

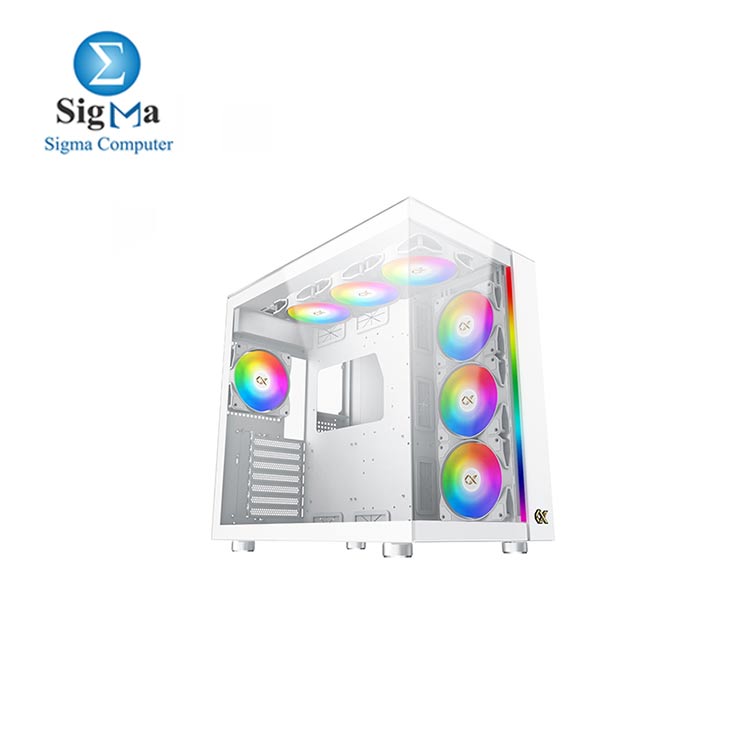

The XIGMATEK Master X II 4Fan ARGB is a high-performance case designed to meet the demands of gamers, content creators, and tech enthusiasts. It features superior airflow and ventilation design, ensuring your system stays cool even under heavy loads. The case supports motherboards up to E-ATX, providing flexibility for various build options.

Fan Support:

• Top: 3 x 120mm or 3 x 140mm
• Front: 3 x 120mm or 3 x 140mm
• Motherboard: 2 x 120mm (for E-ATX motherboards with a width of ≤ 280mm)
• Rear: 1 x 120mm

Radiator Support:

• Front: Up to 360mm
• Top: Up to 360mm
• Rear: 120mm

PSU Support:

• PSU Length: Up to 220mm

Clearance Limits:

• CPU Cooler Height: Up to 165mm
• GPU Length:
  • 280mm (with fans mounted on the motherboard panel)
  • 410mm (without fans on the motherboard panel)

Drive Bays:

• HDD Cage (Bottom): 1 x 3.5"
• HDD Cage (Top): 1 x Combo (3.5" & 2.5")
• SSD Bracket: 2 x 2.5"

Top Mount I/O Ports:

• Power Button
• Reset Button
• USB 3.0 x1
• USB 2.0 x2
• HD Audio Jack

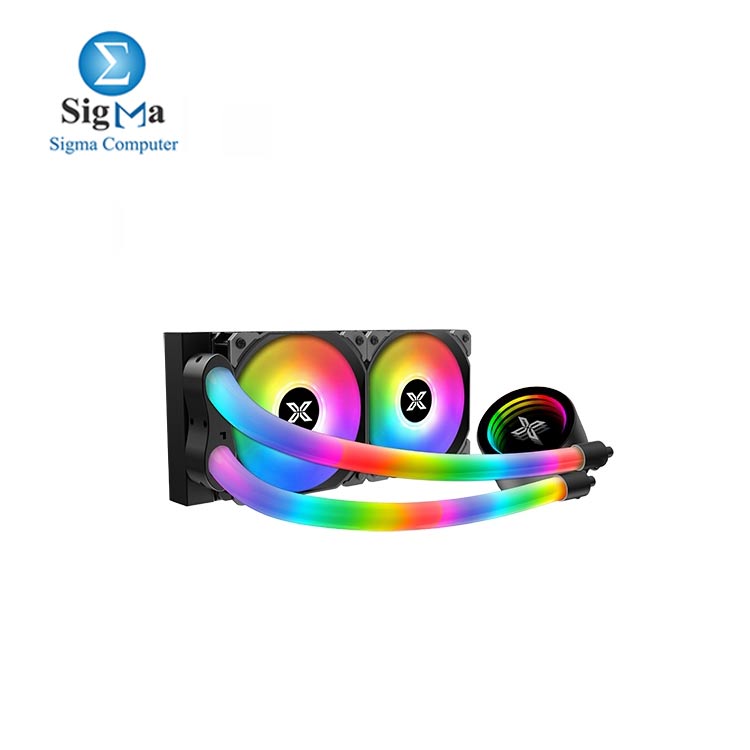

• PWM ARGB Fan: Pulse Width Modulation (PWM) allows for precise control of fan speed, while Addressable RGB (ARGB) lighting adds customizable lighting effects.

• Clean Classic Design: Suggests a visually appealing and timeless design that fits well with most setups.

• Top Grade Cold Plate: The cold plate is the part of the cooler that makes direct contact with the CPU, and a top-grade cold plate ensures efficient heat transfer.

• 400mm Black Sleeved Tube: Long and aesthetically pleasing tubing that is both durable and visually attractive.

• Tube Clips Included: Clips help to secure the tubes in place, preventing movement and potential damage.

• High Density Aluminum Radiator: A high-density radiator improves heat dissipation by providing more surface area for cooling.

• Mini ARGB LED Controller: A small controller that allows you to manage the RGB lighting effects.

• Intel LGA1700 Ready: Compatible with Intel's LGA1700 socket, which supports the latest 14th Gen Intel Core processors.

• AMD AM5 Ready: Compatible with AMD's AM5 socket, supporting the latest Ryzen processors.

• High Performance Thermal Paste: High-quality thermal paste ensures efficient thermal transfer between the CPU and the cooler.

• PWM ARGB Fan: Pulse Width Modulation (PWM) allows for precise control of fan speed, while Addressable RGB (ARGB) lighting adds customizable lighting effects.

• Clean Classic Design: Suggests a visually appealing and timeless design that fits well with most setups.

• Top Grade Cold Plate: The cold plate is the part of the cooler that makes direct contact with the CPU, and a top-grade cold plate ensures efficient heat transfer.

• 400mm White Sleeved Tube: Long and aesthetically pleasing tubing that is both durable and visually attractive.

• Tube Clips Included: Clips help to secure the tubes in place, preventing movement and potential damage.

• High Density Aluminum Radiator: A high-density radiator improves heat dissipation by providing more surface area for cooling.

• Mini ARGB LED Controller: A small controller that allows you to manage the RGB lighting effects.

• Intel LGA1700 Ready: Compatible with Intel's LGA1700 socket, which supports the latest 14th Gen Intel Core processors.

• AMD AM5 Ready: Compatible with AMD's AM5 socket, supporting the latest Ryzen processors.

• High Performance Thermal Paste: High-quality thermal paste ensures efficient thermal transfer between the CPU and the cooler.

XIGMATEK Aqua III ARGB Mid Tower Case:

• Material: Steel
• Dimensions: 440 x 286 x 400mm
• Motherboard Support: ATX, M-ATX, Mini ITX
• Fan Support:
  • Top: 3 x 120mm or 2 x 140mm
  • Bottom: 3 x 120mm
  • Rear: 1 x 120mm
• Radiator Support:
  • Top & Bottom: 360mm
  • MB Panel: 280mm
• Expansion Slots: 7
• Drive Bays:
  • Bottom Panel: 1 x 3.5" or 1 x 2.5"
  • HDD Cage: 1 x 3.5" & 2 x 2.5"
• GPU Length: 410mm
• CPU Cooler Clearance: 160mm
• PSU Length: 220mm
• I/O Panel: 1 x USB 3.0, 2 x USB 2.0, HD Audio

The XIGMATEK Aqua III Arctic features 2 tempered glass panels and top & bottom dust filters for superior airflow and ventilation. It supports ATX motherboards and offers versatile fan and radiator options, including 360mm radiators on the top and bottom. Pre-installed traditional and reverse fan blades provide optimal cooling, with clearance for a 160mm CPU cooler and 410mm GPUs. It supports PSUs up to 220mm and includes flexible drive options for HDD and SSDs. Top mount I/O ports include power and reset buttons, HD audio, USB 2.0 x2, USB 3.0 x1, and a switch.

The Xigmatek Alphard ARGB is a super tower case known for its impressive design and extensive features. Here’s a quick rundown of what it offers:

Xigmatek Alphard ARGB

• Design: This case features a modern design with ARGB (Addressable RGB) lighting, allowing for customizable lighting effects.
• Size: It’s a super tower case, meaning it has a large form factor, which is great for high-end builds with extensive cooling and expansion options.
• Cooling: Typically, super tower cases like the Alphard have ample space for multiple cooling options, including support for large radiators and numerous fans.
• Expansion: It usually includes multiple drive bays, expansion slots, and space for large graphics cards.

Asgard 750W 80+ Bronze Power Supply

• Wattage: 750W, which is sufficient for most high-performance builds.
• Efficiency: 80+ Bronze certification means it has good energy efficiency, translating to less power wasted as heat.
• Build Quality: Generally, 80+ Bronze PSUs offer reliable performance and stability.

Combining these two components can give you a powerful and aesthetically pleasing setup.

XIGMATEK Master X II Gaming Mid-Tower Case + X-Power 600W PSU

Case Key Features:

• Dimensions: 455 x 215 x 486 mm
• Motherboard Support: E-ATX, ATX, M-ATX, Mini-ITX
• Cooling Support:
  • Front: 3 x 120/140 mm (360 mm radiator)
  • Top: 3 x 120/140 mm (360 mm radiator)
  • Rear: 1 x 120 mm (120 mm radiator)
  • Motherboard Side: 2 x 120 mm
• Drive Bays:
  • 2 x 3.5" HDD
  • 2 x 2.5" SSD
• Clearance:
  • GPU: Up to 410 mm
  • CPU Cooler: Up to 165 mm
  • PSU: Up to 220 mm
• I/O Ports: USB 3.0 x 1, USB 2.0 x 2, HD Audio

X-Power 600W PSU Key Features:

• Wattage: 600W
• Efficiency: 80+ White Certified
• Connectors:
  • 1 x 24-pin ATX
  • 1 x 4+4-pin CPU
  • 1 x 6+2-pin PCIe
  • 2 x SATA
  • 3 x Molex
• Protections: Over-voltage, under-voltage, short circuit, over-power

ـــ

SKY II Case:

• Dimensions: 365 x 200 x 450 mm
• Motherboard Support: ATX, Micro ATX, Mini ITX
• Drive Bays: 2 x 2.5" & 3.5" combo
• Cooling: Up to 6 fans (Top: 120/140 mm x2, Front: 120 mm x3/140 mm x2, Rear: 120 mm x1)
• Clearances: PSU: 165 mm, CPU Cooler: 160 mm, GPU: 325 mm
• I/O Panel: USB 3.0 x1, USB 2.0 x2, HD Audio
• Radiator Support: Front (240/360 mm), Rear (120 mm)
• Material: Steel, 7 Expansion Slots

Xigmatek X-Power 600W PSU:

• Output: 600W
• Form Factor: ATX
• Cooling: Air-cooled
• Dimensions: 14.5 x 15 x 8.6 cm
• Connectors: 4 Pin ATX

ARGB FAN

• Low Noise 1200RPM Fan Speed
• High Rotational Stability, and a 30,000 hour Fan Lifespan
• Special Design Fan Blade to Ensure Sufficient Air Flow

DIMENSION :120X120X25MM
BEARING TYPE: LONG LIFE HYDRO BEARING
LED TYPE :ADDRESSABLE RGB
LED DISPLAY: CENTER HUB
FAN MAX RPM: 1200 RPM (±10%)
OPERATING VOLTAGE: DC 5.0V~13.8V

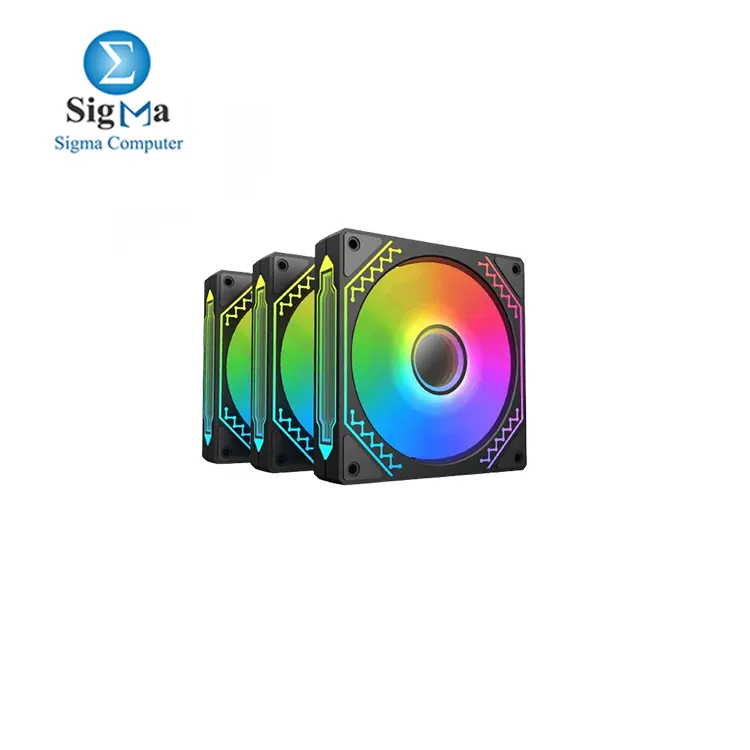

The Xigmatek Starz Pro 120mm ARGB 3-fan kit puts on a show in your case with the infinite mirror effect, while offering high cooling performance thanks to specially designed fan blades. The pack comes with an ARGB controller and remote control, while remaining compatible with the 3-pin ARGB connectors found on motherboards. Thanks to their hydraulic bearings, these fans are extremely durable.

The Xigmatek Starz Pro Arctic 120 mm ARGB 3-fan kit puts on a show in your case with the infinite mirror effect, while offering high cooling performance thanks to specially designed fan blades. The pack is supplied with an ARGB controller and remote control, while remaining compatible with the 3-pin ARGB connectors found on motherboards. Thanks to their hydraulic bearings, these fans are extremely durable.

Color: Black (stainless steel material)
Dimensions: 388 x 195 x 448 mm (L x W x H)
Support HDD/SSD: 2.5 inch and 3.5 inch common port x 2
Motherboard: 2.5 inch HDD x 2
Expansion slots: 7 expansion slots

XIGMATEK Hero II Air ARGB Mid Tower Case

• ARGB Lighting: Customizable RGB effects
• Cooling Support: Front, top, and rear fan/radiator slots
• Storage: Multiple 3.5" and 2.5" drive bays
• Expansion: Several PCIe slots for GPUs and other cards
• Side Panel: Tempered glass

X-Power 600W 80+ White PSU

• Wattage: 600W
• Efficiency: 80+ White certified
• Cooling: 120mm fan

• Strong and Sophisticated Chassis Structure
• Easily Removable Left Panel
• Crystal Clear Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
    MB Panel:240mm / Top:360mm / Rear:120mm

Fury 850W Gold
EN40733 EAN:4711409540733
Fury 850W Gold (Full Range, 80+Gold, LLC D2D & APFC, 12cm FDB Fan, Full Modular, Gen 5, US Cord, Color Box)

EN40740 EAN:4711409540740
Fury 850W Gold (Full Range, 80+Gold, LLC D2D & APFC, 12cm FDB Fan, Full Modular, Gen 5, EU Cord, Color Box)

EN40757 EAN:4711409540757
Fury 850W Gold (Full Range, 80+Gold, LLC D2D & APFC, 12cm FDB Fan, Full Modular, Gen 5, UK Cord, Color Box)

EN40764 EAN:4711409540764
Fury 850W Gold (Full Range, 80+Gold, LLC D2D & APFC, 12cm FDB Fan, Full Modular, Gen 5, SASO Cord, Color Box)

EN7081 EAN:4712477317081
Fury 850W Gold (Full Range, 80+Gold, LLC D2D & APFC, 12cm FDB Fan, Full Modular, US Cord, Color Box, no Gen 5)

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 7 x 12cm Fans

Xigmatek Zoser - Key Specs

• Dimensions: 455x230x495mm
• Motherboard Support: EATX, ATX, M-ATX, Mini ITX
• Cooling:
  • Top/Front: 360mm Radiator or 3x 120mm Fans
  • Rear: 120mm Radiator or 1x 120mm Fan
• Drive Bays: 2x 2.5″/3.5″ + 2x 2.5″
• I/O Ports: USB 3.0 x2, USB-C x1, HD Audio
• Clearances:
  • CPU Cooler: 185mm
  • GPU: 410mm
  • PSU: 200mm

Xigmatek Zoser - Key Specs

• Dimensions: 455x230x495mm
• Motherboard Support: EATX, ATX, M-ATX, Mini ITX
• Cooling:
  • Top/Front: 360mm Radiator or 3x 120mm Fans
  • Rear: 120mm Radiator or 1x 120mm Fan
• Drive Bays: 2x 2.5″/3.5″ + 2x 2.5″
• I/O Ports: USB 3.0 x2, USB-C x1, HD Audio
• Clearances:
  • CPU Cooler: 185mm
  • GPU: 410mm
  • PSU: 200mm

Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 8 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
MB Panel:360mm / Top:360mm / Rear:120mm

Mid Tower Design:
The box features a Mid Tower design, making it suitable for users who need reasonable space and good ventilation.
Argb lighting:
Equipped with an Argb lighting system to provide dynamic, customizable lighting effects.
Efficient cooling:
It contains 4 fans to provide effective air cooling to maintain the temperature of the internal components.

 Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear 2 Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans

 Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear 2 Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans

If you plan to use a water cooling system, the case provides space to install a water cooler, which helps in cooling the components effectively.

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel Core Desktop Processor Family
• Luxurious Top Cover Aluminum X Logo Badgeand
• Long Life Hydraulic Bearing & MTTF Up to 50,000 Hours

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel Core Desktop Processor Family
• Luxurious Top Cover Aluminum X Logo Badgeand
• Long Life Hydraulic Bearing & MTTF Up to 50,000 Hours

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel Core Desktop Processor Family
• Colorful ARGB LED Top Cover and X22A Fan
• Mini ARGB LED Controller Included
• Support ARGB MB SYNC
• Long Life Hydraulic Bearing & MTTF Up to 50,000 Hours

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear 3 Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear 3 Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans

The Xigmatek Starlink ARGB 3 Fans  provides an exceptional cooling solution for your PC. With three ARGB fans and a convenient fan controller, it offers efficient cooling performance and customizable lighting effects.
The ARGB fans feature multiple colours and lighting modes, allowing you to create stunning visual effects and match your system’s aesthetics. The fan controller will enable you to adjust fan speed and lighting settings according to your preferences, providing optimal cooling and personalized customization.

The Xigmatek Starlink ARCTIC ARGB 3 Fans  provides an exceptional cooling solution for your PC. With three ARGB fans and a convenient fan controller, it offers efficient cooling performance and customizable lighting effects.
The ARGB fans feature multiple colours and lighting modes, allowing you to create stunning visual effects and match your system’s aesthetics. The fan controller will enable you to adjust fan speed and lighting settings according to your preferences, providing optimal cooling and personalized customization.

The Xigmatek Starlink Ultra ARGB 3 Fans with Controller Fan is a high-performance cooling solution that features three ARGB fans and a dedicated controller. With vibrant lighting effects and excellent airflow, this fan setup is perfect for enhancing the aesthetics and cooling performance of your PC.

The Xigmatek Starlink Ultra ARGB 3 Fans with Controller Fan is a high-performance cooling solution that features three ARGB fans and a dedicated controller. With vibrant lighting effects and excellent airflow, this fan setup is perfect for enhancing the aesthetics and cooling performance of your PC.

XIGMATEK LIQUID KILLER X 360 ARCTIC ARGB AIO Liquid CPU Cooler:

• Cold Plate: Copper
• Radiator Size: 274x120x27mm (Aluminum)
• Tube Length: 390mm ARGB LED
• Pump: 2500 RPM, Ceramic Bearing, ≤28dBA noise
• TDP: 290W
• Fan Size: 120x120x25mm, 1800 RPM
• Fan Airflow: 82.2 CFM, 2.55mm-H2O air pressure
• Fan Noise: 25.3dBA
• CPU Socket Compatibility: Intel LGA 1700, 1200, 115x, 2011, 2066; AMD AM5, AM4, AM3

• 2.4″ Deigital LCD Pump Head
• Low Noise PWM Fan
• Showcasing Various Styles
• Efficient Heat Dissipation
• Support the Latest Specifications

Blade ( (ATX, U3x1 & U2x2, Mehsed Grill Frontpanel & Left Tempered Glass, 4PCS X20C Auto Running LED Fan)

• Fully Featured ATX Chassis Structure
• Left Panel Tempered Glass Design
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 6 x 120mm Fans
• Liquid Cooling Radiators Compatibility:
Front 360mm & Top 240mm & Rear 120mm

Phantom (Black, ATX, U3x1+U2x2, Front TG & Left Magnetic Flip Open TG, 4PCS X24A Fan & ARGB Fan Control PCB)

• Fully Featured ATX Chassis Structure
• 3D Dynamic Design Frontpanel
• Front & Left Panel Tempered Glass Design
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 6 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front 360mm & Rear 120mm

Aqua M (Black, Micro ATX, U3x1+U2x1, Front & Left TG Panel, 5PCS X24A & ARGB Fan Control PCB)

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 7 x 12cm Fans
• Liquid Cooling Radiators Compatibility : MB: 240, Top 240

Endorphin Ultra (Black, ATX, U3x1 & Type Cx1, Front & Left Seamless TG, 5PCS M20A & Galaxy II Fan Control Kit)

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 8 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
MB Panel:360mm / Top:360mm / Rear:120mm

Fully Featured Mid Tower Chassis Structure
Elegant Meshed Grill Design Frontpanel
Left Tempered Glass Sidepanel
Superior Airflow and Ventilation Chassis Design
Easy Cable Management and PSU Shroud
Multiple Cooling Fan Placement Up to 6 x 120mm Fans
Liquid Cooling Radiators Compatibility: Front 360mm,Top 240mm, Rear 120mm

Fully Featured Mid Tower Chassis Structure
Elegant Meshed Grill Design Frontpanel
Left Tempered Glass Sidepanel
Superior Airflow and Ventilation Chassis Design
Easy Cable Management and PSU Shroud
Multiple Cooling Fan Placement Up to 6 x 120mm Fans
Liquid Cooling Radiators Compatibility: Front 360mm,Top 240mm, Rear 120mm

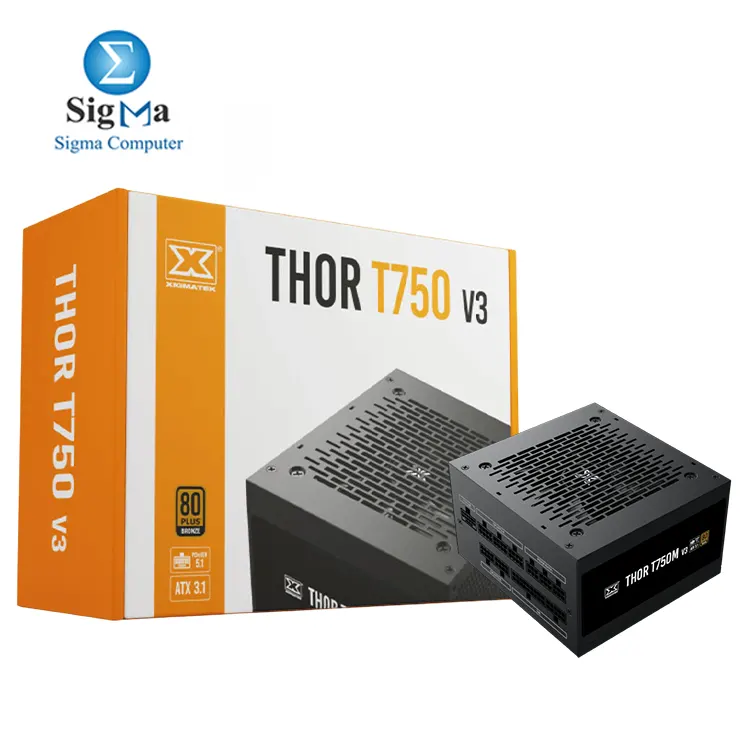

750w Power Supply
Fully Featured Modular Cable PSU
Ultra Silent 120mm Cooling Fan
Designed for Professional and Gaming System
Over power protection
Under voltage protection
Over voltage protection
Short circuit protection

FULL MODULAR – 100% BLACK CABLE
Performance: 80Plus Bronze
Lifetime 100,000 hours
Dimensions 150 x 85 x 140(mm)
Output: + 12V 70.8A (850W)

EN7081 EAN:4712477317081
Fury 850W Gold (Full Range, 80+Gold, LLC D2D & APFC, 12cm FDB Fan, Full Modular, US Cord, Color Box, no Gen 5)

Tags: 80+ GOLD, FULL MODULAR, PSU, XIGMATEK

100-240V Full range
Full modular cable
Complete protection
Active power factor correction
Balck flat cable
Smart eco fan

The Neon Aqua 360 is Xigmatek latest innovation.
The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

• 2.4" Deigital LCD Pump Head
• Low Noise PWM Fan
• Showcasing Various Styles
• Efficient Heat Dissipation
• Support Latest Specifications

• 2.4" Deigital LCD Pump Head
• Low Noise PWM Fan
• Showcasing Various Styles
• Efficient Heat Dissipation
• Support Latest Specifications

Xigmatek Aquarius Pro Queen ATX Mid Tower Case
Aquarius Pro Queen (Pink, USB3.0x2+USB2.0x2+Type C, Front & Left TG, 7PCS X24A Arctic & Galaxy II Fan Control Kit)
Elegant and Easy Display Design
Strong and Sophisticated Chassis Structure
Crystal Clear Front and Left Tempered Glass Design
Superior Airflow and Ventilation Design
Easy SSD/HDD/PSU Installation
Easy Cable Management
Multiple Cooling Fan placement up to 10 x 12cm Fans
Liquid Cooling Radiators Compatibility
Bottom 360mm and Top:360mm

• Fully Featured EATX Chassis Structure
• Dynamic 3D Meshed Grill Design Frontpanel
• Left Tempered Glass Sidepanel
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 7 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front & Top 360mm & Rear 120mm & MB Panel 240mm (ATX Motherboard Only)

• Elegent Metal Vents Frontpanel
• Superior Airflow and Ventilation Design
• Strong and Sophisticated Chassis Structure
• Tempered Glass Magnetic Flip Open Left Sidepanel
• Easy Cable Management Friendly
• Easy SSD/HDD/PSU Installation
• Multiple Cooling Fan placement up to 6 x 12cm or 5 x 14cm Fans
• Liquid Cooling Radiators Compatibility : Top 240mm, Front 240/280/360mm and Rear 120mm

Type: PSU Cable Cover
Material: Heavy Duty Nylon Sleeve Tube
Wire Gauge: 16 AWG Pure Copper
Terminal: High Conductivity Copper Pin
Easy Cable Included For Tidy Cable Management
Elegant And Colorful Individual Sleeved Extension Cable
Compatible With: Pc Power Supplies

Type: PSU Cable Cover
Material: Heavy Duty Nylon Sleeve Tube
Wire Gauge: 16 AWG Pure Copper
Terminal: High Conductivity Copper Pin
Easy Cable Included For Tidy Cable Management
Elegant And Colorful Individual Sleeved Extension Cable
Compatible With: Pc Power Supplies

Type: PSU Cable Cover
Material: Heavy Duty Nylon Sleeve Tube
Wire Gauge: 16 AWG Pure Copper
Terminal: High Conductivity Copper Pin
Easy Cable Included For Tidy Cable Management
Elegant And Colorful Individual Sleeved Extension Cable
Compatible With: Pc Power Supplies

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
Bottom 360mm and Top:360mm

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 10 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
Bottom 360mm and Top:360mm

 Elegant Cooling Fins Design Frontpanel
‧ Superior Airflow and Ventilation Design
‧ Strong and Sophisticated Chassis Structure
‧ Tempered Glass Magnetic Flip Open Left Sidepanel
‧ Easy Cable Management Friendly
‧ Easy SSD/HDD/PSU Installation 6 x 120mm Fans
‧ Multiple Cooling Fan Placement up to
‧ Liquid Cooling Radiators Compatibility :
Top 240mm, Front 240/360mm, Rear 120mm

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel Core Desktop Processor Family
• Colorful ARGB LED Top Cover and X22A Fan
• Mini ARGB LED Controller Included
• Support ARGB MB SYNC
• Long Life Hydraulic Bearing & MTTF Up to 50,000 Hours
• Silent Operation at ≤25.3 dBA
• Support of Additional 120mm Fan (Support Up to TDP 190W)
• Non-Interference Between Memory Modules and CPU Cooler

XIGMATEK AIR KILLER S ARGB AIR CPU Cooler key specifications:

• CPU Support: Intel LGA 20xx/1700/1200/115x, AMD AM5/AM4/AM3
• TDP: 160W (Supports up to 190W with additional fan)
• Dimensions: 128 x 76 x 160 mm (Overall), 128 x 50 x 155 mm (Heat Sink)
• Fan Speed: 800–1,800 RPM (PWM)
• Fan Air Flow: 82.2 CFM
• Noise Level: ≤25.3 dBA
• Fan Lifespan (MTTF): 50,000 hours
• Fan Bearing: Long Life Hydraulic Bearing
• LED: X22C Rainbow LED Fan

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel Core Desktop Processor Family

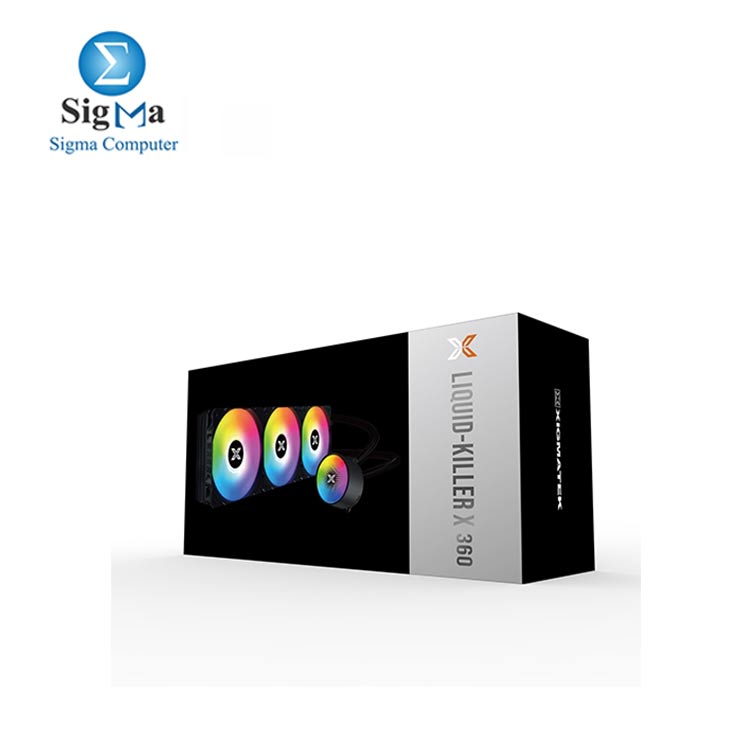

The LIQUID-KILLER X Series is Xigmatek latest innovation.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

Type: Wired Mouse
Mouse Resolution: 6400Dpi
RGB
Number of Button: 6
Connectivity: USB
Compatible with: PC and Laptop

XFP 1350W (Full Range, LLC DC TO DC, Full Modular, 80PLUS Platinum, 140mm Fan, EU Power Cord)

LLC Resonant Circuit Layout
DC to DC Circuit Design
Fully Featured Modular Cable PSU
135mm FDB Cooling Fan
Design for Professional and Gaming System

• Fully Featured ATX Chassis Structure
• Dynamic 3D Meshed Grill Design Frontpanel
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 6 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front 360mm & Rear 120mm

elegent metal vents frontapanel
superior airflow and ventllation design
strong and solilstcated chassis structure
easy coble managent friendly
easy ssd/hdd/psu/ instsllation
cooling fan placement up to 6x120mm fans or 5x14cm fans
liquid cooling radiators compatibllty top 240mm. front240/280/360mm.
rear 120mm

Anubis Pro Mesh ARGB (EATX,U3x1+U2x2,Left Magnetic TG,3PCS 140mm X40A & 1PC 120mm X20A & ARGB PCB)

• Fully Featured EATX Chassis Structure
• Dynamic 3D Meshed Grill Design Frontpanel
• Left Tempered Glass Sidepanel
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 7 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front & Top 360mm & Rear 120mm & MB Panel 240mm (ATX Motherboard Only)

Xigmatek Zest, a new generation Rambo RGB PC case with front and left tempered glass, it’s colorful and breathtaking and perfect for display your professional system build, the case chassis designed for all major ATX, M-ATX and Mini ITX gaming or professional motherboard available to the market, E-ATX motherboard friendly also,

 • Fully Featured ATX Chassis Structure
• Front & Left Panel Tempered Glass Design
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 6 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front 360mm & Rear 120mm

Xigmatek EROS, a new dynamic programmed multi-mode rainbow LED PC case, also come with a left side tempered glass perfect for system build display, fully featured case chassis structure and cable management friendly, it will support ATX, M-ATX motherboard with CPU cooler clearance at 158mm and VGA card max length at 290mm, this is a cool PC case with all the features you will need to build your dream PC.

Xigmatek Zest, a new generation Rambo RGB PC case with front and left tempered glass, it’s colorful and breathtaking and perfect for display your professional system build, the case chassis designed for all major ATX, M-ATX and Mini ITX gaming or professional motherboard available to the market, E-ATX motherboard friendly also, so you can use Zest to build your dream PC system. The chassis have 180mm CPU cooler clearance and 430mm for VGA card clearance, also support liquid cooling radiators front 240/280/360mm, rear 140mm and top 280/360mm. Easy to do cable management and hide all the messy cables for a tidy display, Zest the latest innovation from Xigmatek, perfect for gaming and any professional system build.

THERMAL-KILLER S is Excellent Performance Thermal Grease. Whether it’s Air or Liquid Cooling, CPU or GPU Applications, Overclocking or Any PC Systems.

Minotaur 850W (Full Range, LLC DC TO DC, 80PLUS Gold, Full Modular,Color Box)
EN44665 EU > EAN:4713436744665
EN44672 UK > EAN:4713436744672
EN44689 NZ/AU > EAN:4713436744689
EN44696 SASO > EAN:4713436744696

Minotaur 750W (Full Range, LLC DC TO DC, 80PLUS Gold, Full Modular,Color Box)
EN44627 EU > EAN:4713436744627
EN44634 UK > EAN:4713436744634
EN44641 NZ/AU > EAN:4713436744641
EN44658 SASO > EAN:4713436744658

The LIQUID-KILLER X Series is Xigmatek latest innovation.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

• Ultra-Efficient Thermal Heat-Pipe and Patented Xigmatek H.D.T. Technology
• High Performance Heat Dissipation & Air Flow
• Support Latest 12th Gen Intel Core Desktop Processor Family
• Colorful ARGB LED Top Cover and X22A Fan
• Mini ARGB LED Controller Included
• Support ARGB MB SYNC
• Long Life Hydraulic Bearing & MTTF Up to 50,000 Hours
• Silent Operation at ≤25.3 dBA
• Support of Additional 120mm Fan (Support Up to TDP 190W)
• Non-Interference Between Memory Modules and CPU Cooler

• Fully Featured EATX Chassis Structure
• Dynamic 3D Meshed Grill Design Frontpanel
• Left Tempered Glass Sidepanel
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 7 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front & Top 360mm & Rear 120mm

・Special Design Curved Clear Black Frontpanel
・Left Tempered Glass Sidepanel
・Superior Airflow and Ventilation Chassis Design
・Multiple Cooling Fan Placement Up to 6 x 120mm
・Removable HDD Tray & User-Friendly HDD Cage Installation
・Easy Cable Management
・Liquid Cooling Radiators Compatibility:
Front 240mm, Rear 120 and Top 240mm
(Top:Memory Ram Height Must Lower than 32mm)

XIGMATEK iCover MB 24P ARGB PSU Cable Cover Kit

Key Features:

• Mini ARGB LED Controller: Comes with a mini controller to manage the ARGB lighting, allowing you to customize the lighting effects.
• Colorful & Stylish ARGB Cable Cover: Features vibrant ARGB LED lighting for a visually appealing look.
• ARGB 3P Connector: Supports ARGB lighting on the motherboard, enabling synchronization with your system's ARGB components.
• Compatibility: The cover is compatible with any individual sleeved extension cables (note: these are not included in the kit).

Hydra M 550 (Full Modular, 550W, APFC DC to DC, AC 230V, 80 Plus Bronze, EU Power Cord, Color Box)：EN44207
Hydra M 650 (Full Modular, 650W, APFC DC to DC, AC 230V, 80 Plus Bronze, EU Power Cord, Color Box)：EN44214
Hydra M 750 (Full Modular, 750W, APFC DC to DC, AC 230V, 80 Plus Bronze, EU Power Cord, Color Box)：EN44221

DC to DC Circuit Design
Fully Featured Modular Cable PSU
Designed for Professional and Gaming System

The LIQUID-KILLER X Series is Xigmatek latest innovation.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

PRODUCT NAME    AQUARIUS PLUS QUEEN
MATERIAL          STEEL
DIMENSION         415x 280x 427 mm { Lx Wx H}
DRIVE BAYS        2.5 inch SSD/ HDD x2
                  3.5 inch HHD x 2
EXPANSION         7 STANDARD SLOTS
MOTHERBOARD SUPPORT ATX,M-ATX,MINI ITX
POWER SUPPLY        STANDARD PS2 ATX PSU
FAN SUPPORT         MB SIDE: 3x 120mm
                    TOP : 3x 120mm
                    BOTTOM : 3x120mm
                    REAR : 1x120mm
LIQUID COOLING      MB SIDE: 360MM
                    TOP : 360MM
SUPPORT             REAR : 120MM
I/O PANEL           USB 3.0x2+USB 2.0x 1,HD AUDIO
CPU COOLER           158MM
VGA LENGTH           360MM
VGA HEIGHT            160MM
PSU LENGTH            200MM

PRODUCT NAME       VENOM X
PRODUCT NUMBER      EN41756
MATERIAL            STEEL
DIMENSIONS          435x 200x 435 mm {L x W x H}
DRIVE BAYS          2.5 inch SSD/ HDD x 3
                    3.5 inch  HDD x 3
EXPANSION SLOTS       7 STANDARD PS2 ATX PSU
MOTHERBOARD SUPPORT    E-ATX, ATX, M-ATX, MINI ITX
POWER SUPPLY             STANDARD PS2 ATX PSU
FAN SUPPORT              FRONT: 3X120MM OR 2X140MM
                         REAR: 1X120MM
                         TOP: 2X120MM OR 2X140MM
RADIATOR SUPPORT          FRONT: 240MM
                          REAR: 120MM
I/O PANEL                  USB 3.0 X1, USB 2.0 X2,HD AUDIO
CPU COOLER CLEARANCE       158MM
VGA LENGTH LIMITATION       380MM
PSU LENGHT LIMITATION        200MM

EN46324 EAN:4713436746324
Master X 3FX (ATX, USB3.0x1+USB2.0x2, Meshed Grill FP & Left TG, 3PCS X20A Fan & LED Button Switch ARGB Fan Control PCB)

• Fully Featured Mid Tower Chassis Structure
• Elegant Meshed Grill Design Frontpanel
• Left Tempered Glass Sidepanel
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management and PSU Shroud
• Multiple Cooling Fan Placement Up to 6 x 120mm Fans
• Liquid Cooling Radiators Compatibility: Front 360mm,
Top 240mm, Rear 120mm

Xagatek Aquarius Plus, a new generation Rainbow RGB PC case with front and left tempered glass, the case chassis designed for all major ATX, M-ATX and Mini ITX gaming or professional motherboard. Support 158mm CPU Cooler clearance and 360mm VGA card, up to 10 x 120mm fan or liquid cooling radiators top 240/360mm, right 240/360mm, and rear 120mm for excellent cooling performance. Special chassis design easy to do cable management and hide all the messy cables for a tidy display. Aquarius specially comes with see through tempered glass front panel; it is a perfect choice to display how beautiful your system build will be.

EN46508 EAN:4713436746508
Aquarius S (Black, ATX, USB3.0x1+USB2.0x2, Front & Left Tempered Glass)

EN46522 EAN:4713436746522
Aquarius S (Black, ATX, USB3.0x1+USB2.0x2, Front & Left TG, 3PCS AY120 Fan Bottomx2+Rearx1)

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 5 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
Top 240/280mm, Bottom 240/280mm and Rear 120mm

EN46515 EAN:4713436746515
Aquarius S Arctic (White, ATX, USB3.0x1+USB2.0x2, Front & Left Tempered Glass)

EN46539 EAN:4713436746539
Aquarius S Arctic (White, ATX, USB3.0x1+USB2.0x2, Front & Left TG, 3PCS AY120 Fan Bottomx2+Rearx1

• Elegant and Easy Display Design
• Strong and Sophisticated Chassis Structure
• Crystal Clear Front and Left Tempered Glass Design
• Superior Airflow and Ventilation Design
• Easy SSD/HDD/PSU Installation
• Easy Cable Management
• Multiple Cooling Fan placement up to 5 x 12cm Fans
• Liquid Cooling Radiators Compatibility :
Top 240/280mm, Bottom 240/280mm and Rear 120mm

Product Name               Gaming X Arctic
Material                   Steel
Dimension                  372x210x480mm (LxWxH)
SSD / HDD                  2.5 & 3.5 COMBO X 2
PCI Slot                   7 Standard Slots
Motherboard Support        ATX/M-ATX/MINI-ITX
POWER SUPPLY               Standard PS2 ATX PSU
Fan Support                Fornt:120mm x3/ 140mm x3
                           Rear: 120mm x2
                           Top : 120mm x2
Liquid Cooling Support     Front: 360mm
                           Rear:  120mm
                           Top:  240mm
I/O Panel                  USB 3.0x 1, USB 2.0x2, HD Audio
CPU Cooler                 160mm
VGA Length                 320mm
PSU Length                 165mm

BrandXigmatek
ModelXigmatek Trident
SeriesGaming Casing
Case TypeMid Tower
Part NoEN44535
Technical Information

Supported Motherboard TypeATX, Micro ATX, M-ATX
LightingARGB
Graphics-Card Length320mm
CPU Cooler Height170mm

urora 360 (AIO Liquid Cooler, Aura Illuminated Pump Head, 3x120mm AT120 Rainbow Fan, Reinforced Metal Backplate)：EN42814

Aurora, a natural appearance of colored light in the sky,usually seen in the high-latitude regions around the Arctic and Antarctic.The Aurora AIO liquid cooler Series is Xigmatek latest innovation, bring you Aurora like lighting eect using latest ARGB LED technology.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system

EN46560 EAN:4713436746560
FROZR-O 240 (AIO Liquid Cooler, OLED Display Pump Head, 2x120mm ARGB Fan, Reinforced Metal Backplate)

• Smart OLED Display with Real Time Pump RPM & Cold Plate Temp.
• Top grade pure copper cold plate design
• Full aluminum high density water channel design
• Black sleeved cable, super strong and stylish outlook
• Ceramic axle bearing guarantee less resistance and super long service life
• Xigmatek 120mm ARGB fan, support mainstream M/B for Addressable RGB Motherboard SYNC

・Front & Left Side Temepered Glass.・Superior Airflow and Ventilation Chassis Design
・Multiple Cooling Fan Placement Up to 6 x 120mm
・Easy Cable Management
・Liquid Cooling Radiators Compatibility: Front 240mm, Rear 120 and Top 240mm
(Memory Ram Height Must Lower than 32mm)
・Bottom Mount Power Supply

- 230V input with greater than 80% efficiency under typical loads
- Single rail +12V output for high power utilization applications
- OVP/OPP/UVP
- FCC, CE, RoHS standards compliant
- Active PFC

Trio (ATX, USB3.0x1+USB2.0x2, Meshed Grill FP & Left TG, 4PCS X20F Fan)

EN45846 EAN:4713436745846
Trio (ATX, USB3.0x1+USB2.0x2, Meshed Grill FP & Left TG, 4PCS XDS120 ARGB Fan w LED Switch)

EN45860 EAN:4713436745860
Trio (ATX, USB3.0x1+USB2.0x2, Meshed Grill Frontpanel & Left Tempered Glass)

- 230V input with greater than 80% efficiency under typical loads
- Single rail +12V output for high power utilization applications
- OVP/OPP/UVP
- FCC, CE, RoHS standards compliant
- Active PFC

N43767 EAN:4713436743767
Lamiya (ATX,USB3.0x1+USB2.0x2, Front & Left TG,4PCS CY120 Fan,Frontx3+Rearx1,)

EN44078 EAN:4713436744078
Lamiya (ATX, USB3.0x1+USB2.0x2, Front & Left TG, 4PCS CY120 Fan, Frontx3+Rearx1)

Xigmatek Lamiya comes with front and left tempered glass, the case chassis designed for major ATX, M-ATX and Mini ITX motherboard. Support 160mm CPU Cooler clearance and 330mm VGA card, up to six 120mm fan or liquid cooling radiators top 240mm and rear 120mm for better cooling performance. PSU shroud design easy to do cable management and hide all the messy cables for a tidy display. This case is a perfect choice to build your PC and display the beautiful PC build at the same time.

Xagatek Aquarius Plus, a new generation Rainbow RGB PC case with front and left tempered glass, the case chassis designed for all major ATX, M-ATX and Mini ITX gaming or professional motherboard. Support 158mm CPU Cooler clearance and 360mm VGA card, up to 10 x 120mm fan or liquid cooling radiators top 240/360mm, right 240/360mm, and rear 120mm for excellent cooling performance. Special chassis design easy to do cable management and hide all the messy cables for a tidy display. Aquarius specially comes with see through tempered glass front panel; it is a perfect choice to display how beautiful your system build will be.

EN46218 EAN:4713436746218
X7 (Black, E-ATX, USB3.0x1 & USB2.0x2 & HD Audio, Front & Left Tempered Glasss)

• High End Flagship Super Tower PC Case
• 1.2mm Thickness Chassis Structure
• Precision CNC & NCT Craftsmanship
• Two Side Tempered Glass Design
• Superior Airflow and Ventilation Chassis Design
• Easy Cable Management & PSU Shroud
• Full Size Vertical PCI-E Slots
• Multiple Cooling Fan placement up to 8 x 12cm Fans
• Liquid Cooling Radiators Compatibility:
MB Side 360mm,Top 360mm and Rear 140mm

Galaxy III is a new Generation of Addressable RGB fan from Xigmatek, 120mm fan frame with addressable RGB LEDs, able to provide rainbow effect by itself or sync with M/B to have a full PC case with integrity lighting effect. Able to support mainstream ARGB motherboard in the market. Xigmatek hydro bearing fan provide long life, high performance and low noise. Galaxy II is a smart RGB system with MB sync and everything’s in control.

GALAXY III ROYAL is a new Generation of Addressable RGB fan from Xigmatek, 120mm fan frame with addressable RGB LEDs, able to provide rainbow effect by itself or sync with M/B to have a full PC case with integrity lighting effect. Able to support mainstream ARGB motherboard in the market. Xigmatek hydro bearing fan provide long life, high performance and low noise. GALAXY III ROYAL is a smart RGB system with MB sync and everything’s in control.

Aurora 240 (AIO Liquid Cooler, Aura Illuminated Pump Head, 2x120mm AT120 Rainbow Fan, Reinforced Metal Backplate)：EN42807

Aurora, a natural appearance of colored light in the sky,usually seen in the high-latitude regions around the Arctic and Antarctic.The Aurora AIO liquid cooler Series is Xigmatek latest innovation, bring you Aurora like lighting eect using latest ARGB LED technology.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

Aurora, a natural appearance of colored light in the sky,usually seen in the high-latitude regions around the Arctic and Antarctic.The Aurora AIO liquid cooler Series is Xigmatek latest innovation, bring you Aurora like lighting eect using latest ARGB LED technology.

The AIO kit included top grade components to keep your CPU cool for maximum performance experience, best suitable for gaming or professional overclocked PC system.

● 80% Efficiency at Any System Load.
● Able to Work From 220V to 240V Environment.
● Enhanced +12V Current Capability Broadens Utilization Possibilities.
● Reduce Line Loss and Power Distortion.
● Provide Excellent Cooling and Longer Life Time.
● High Quality Finish An Ideal Choice for Any System Build.
● OPP/UVP/OVP/SCP Protection. Safety and Reliable.
● Support Hi-End VGA Graphic Card,6+2Pin PCI-E Connectors Compatible with All GPU Platforms.

EN46171 EAN:4713436746171
Vortex (ATX, USB3.0x1+USB2.0x2, Rainbow LED Front Panel, Left Tempered Glass, Rear SYNC XCR120 Fan)

• Stylish RGB Stripe Front Panel and Left Side Tempered Glass
• Superior Airflow and Ventilation Chassis Design
• Multiple Cooling Fan Placement up to 5 x 120mm
• Liquid Cooling Radiators Compatibility: Rear 120mm
• CPU Cooler Clearance 160mm
• VGA Length Limitation 290mm
• Easy Cable Management

EN43057 EAN:4713436743057
NYX 3F (M-ATX, USB3.0x1 & 2.0x2, Left & Front TG，Front TG Silk Print, Front 3PCS X20F Fan)

The NYX 3F chassis of Xigmatek can support two types of Motherboards as Micro-ATX and Mini-ITX which comes with front & left side tempered glass panels to display every component perfectly, clearance for 160 mm CPU coolers, 280 mm GPU clearance and can be quipped liquid cooling radiators compatible 120 mm at rear side. The PSU shroud designed for easy cable management with tidy display.

EN42265 EAN:4713436742265
Poseidon (ATX, USB3.0x2, USB2.0x2, Front & Left Tempered Glass, Front Rainbow LED Stripe)

EN42272 EAN:4713436742272
Poseidon (ATX, USB3.0x2, USB2.0x2, Front & Left Tempered Glass, Front Rainbow LED Stripe, CY120 Fansx4 (Fx3 & Rx1)

EN42883 EAN:4713436742883
Poseidon (ATX, USB3.0x2, USB2.0x2, Front & Left Tempered Glass, Front Rainbow LED Stripe, AY120 Fan(Fx3 & Rx1) MB SYNC

EN45143 EAN:4713436745143
Poseidon (ATX,U3x2+U2x2,Front&Lefft TG,Front LED Stripe,4PCS XDS120 ARGB Fan w LED Switch)

Xigmatek Poseidon, a new generation two side tempered glass PC case with LED stripe front panel, the case chassis designed for major ATX, M-ATX and Mini-ITX gaming or professional motherboard. Support 165 mm CPU cooler clearance and 300 mm VGA card, up to six 120mm fan or 240mm liquid cooling radiators at top and front, 120mm at rear for excellent cooling performance. Pre-install with Xigmatek Galaxy AY120 addressable RGB fan, able to support MB Sync and build a full RGB effect system in one control. Poseidon is the perfect choice for a professional system build and display the RGB effect at the same time.

15.6"HD (1366x768)TN220 nitsAnti-glareEN44351 EAN:4713436744351
Triple X (ATX 330mm Chassis,USB3.0x1+USB2.0x2,Front & Left TG,4PCS CY120 Fan, Frontx3+Rearx1)

Xigmatek TRIPLE X, a new concept tempered glass PC case with three stripes RGB LED front panel, the case chassis designed for major ATX, M-ATX and Mini-ITX gaming or professional motherboard. Support 170mm CPU cooler clearance, PSU maximum length 165mm and VGA graphic card maximum length 320mm, support up to six 120mm fan or 240mm liquid cooling radiators at front, 240mm at top and 120mm at rear for excellent cooling performance, cable management friendly and beautiful lighting display.

Professional VGA Holder with ARGB LED Strip
• Heavy Duty Magnetic Mounting Base
• Height Adjustable Bracket Support Up to 2 High End Graphics Cards
