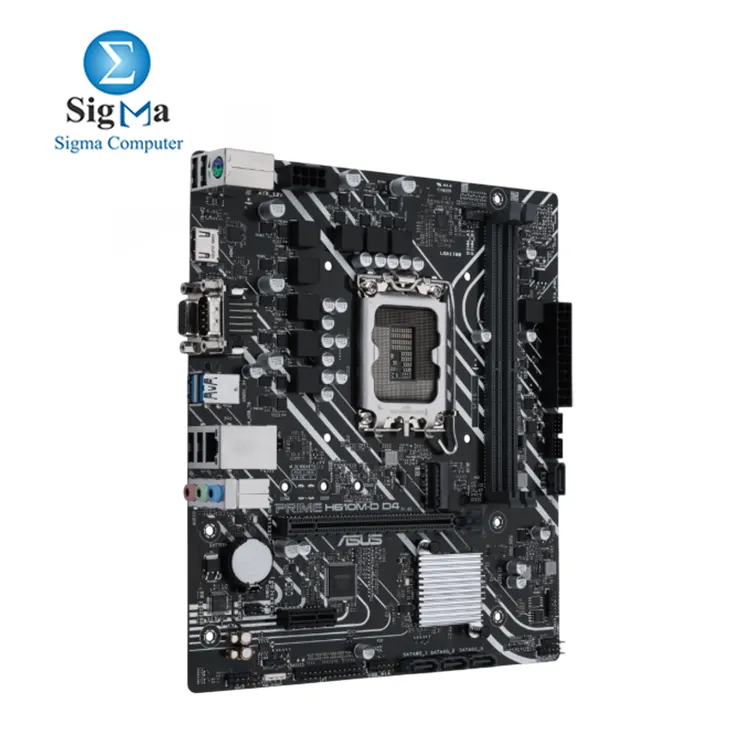

ASUS-INTEL-PRIME H610M-D D4 Supports Intel 12th 14th Gen CPUs DDR4 up to 64GB M.2 4x SATA PCIe 4.0 x16 HDMI Realtek 1Gb LAN and 7.1 HD Audio in a micro-ATX form factor

reviews | Write a review

3999 LE

Availability: In Stock only 1 item left

shipped by (sff4$vjs2hf5kg)

Point: 25

Brand : ASUS

Model : PRIME H610M-D D4

Seller : sff4$vjs2hf5kg

Viewed : 8438 items

ASUS PRIME H610M-D D4 – Key Specs

Socket: LGA1700 (Supports 12th, 13th, and 14th Gen Intel® CPUs)

Chipset: Intel® H610

Memory: 2 x DDR4 DIMM slots, up to 64GB, Dual Channel, XMP support

Graphics Output: HDMI (4K@60Hz), D-Sub

Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

Storage: 1 x M.2 (PCIe 3.0 x4 & SATA), 4 x SATA 6Gb/s

LAN: Realtek 1Gb Ethernet

Audio: Realtek 7.1 HD Audio, Premium Capacitors, Audio Shielding

USB Ports:

Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0

Front Headers: 2 x USB 3.2 Gen 1, 2 x USB 2.0

Form Factor: Micro-ATX (23.4 x 20.3 cm)

Special Features: ASUS 5X Protection III, RGB Header, AI Suite 3

Seller note

010084167000098

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Model
ASUS PRIME H610M-D D4

CPU Support

Intel® Socket LGA1700 for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 (depending on CPU)

Chipset

Intel® H610 Chipset

Memory

2 x DIMM, up to 64GB DDR4 3200/3000/2933/2800/2666/2400/2133 MHz (Non-ECC, Un-buffered)
Dual channel architecture
Supports Intel® XMP

Graphics Outputs

1 x HDMI port (supports 4K@60Hz with HDMI 2.1)
1 x D-Sub port
Graphics support depends on CPU capabilities

Expansion Slots

1 x PCIe 4.0 x16 slot (from CPU)
1 x PCIe 3.0 x1 slot (from chipset)

Storage

1 x M.2 slot (PCIe 3.0 x4 & SATA mode, type 2242/2260/2280)
4 x SATA 6Gb/s ports
Note: M.2 SATA mode disables SATA6G_4 port

Networking

1 x Realtek 1Gb Ethernet port

USB Ports

Rear I/O:
- 2 x USB 3.2 Gen 1 Type-A
- 4 x USB 2.0 Type-A
Internal headers:
- 1 x USB 3.2 Gen 1 header (supports 2 additional ports)
- 1 x USB 2.0 header (supports 2 additional ports)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-bit/192 kHz playback
Audio shielding, premium capacitors, dedicated audio PCB layers
Requires HD audio front panel for full 7.1 output

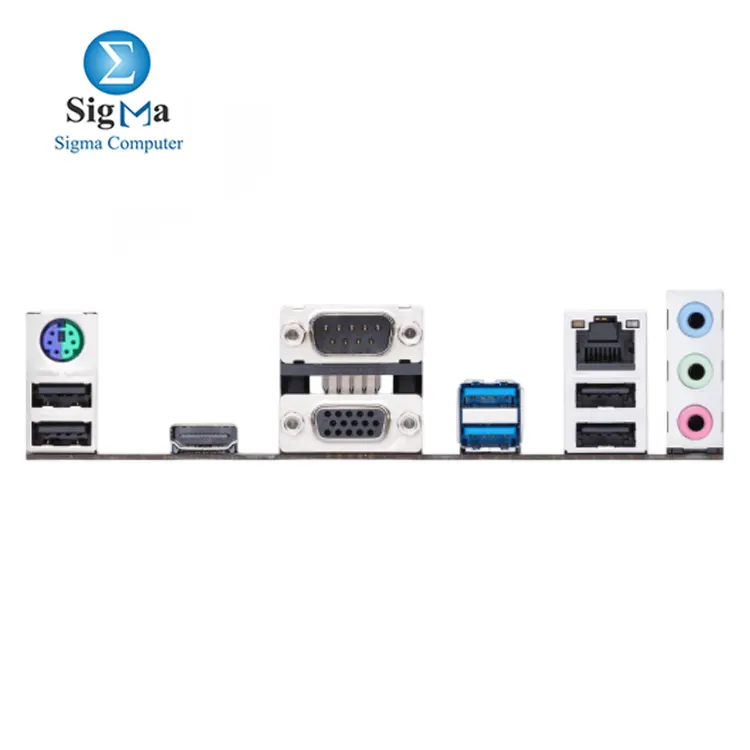

Back Panel I/O

2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x HDMI port
1 x D-Sub port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port

Internal Connectors

1 x 24-pin ATX power
1 x 8-pin CPU power
1 x CPU Fan header (4-pin)
1 x Chassis Fan header (4-pin)
1 x RGB header
1 x Front Panel Audio (AAFP)
1 x Clear CMOS header
1 x Speaker header
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x System Panel header (10-1 pin)

Special Features

ASUS 5X PROTECTION III:
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless Steel Back I/O
Q-Design: Q-DIMM, Q-Slot
Aluminum heatsink
RGB lighting control via RGB header

Software Features

Armoury Crate
AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert)
ASUS CPU-Z
Norton Antivirus (Trial)
WinRAR

BIOS

128 Mb UEFI AMI BIOS
Features: CrashFree BIOS 3, EZ Flash 3, EZ Mode

Manageability

WOL by PME, PXE

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Anchor
1 x Support DVD
1 x User Guide

Operating System Support

Windows 11 64-bit
Windows 10 64-bit

Form Factor

Micro-ATX (23.4 cm x 20.3 cm / 9.2 inch x 8.0 inch)

Category	Desktop
Subcategory	Motherboard
Brand	ASUS
Model	PRIME H610M-D D4
