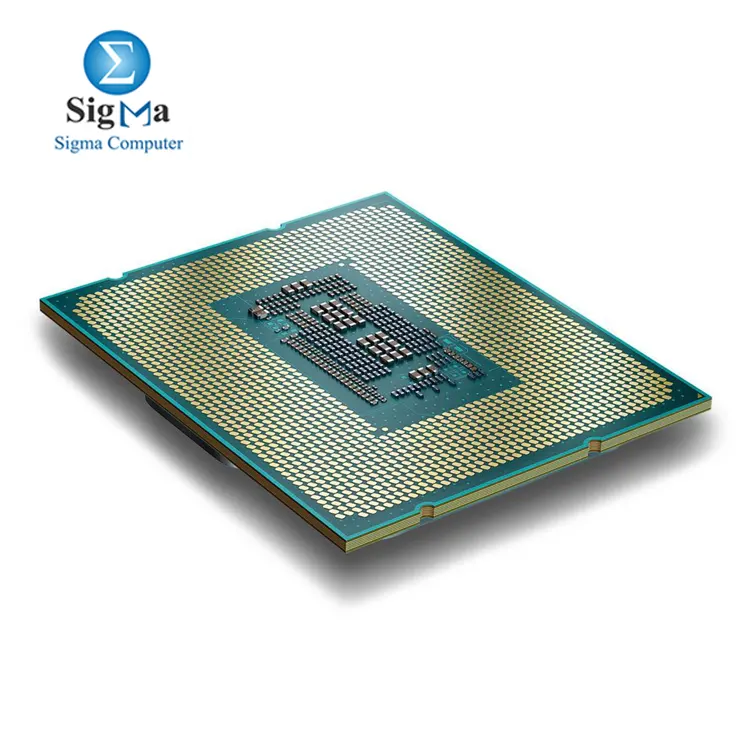

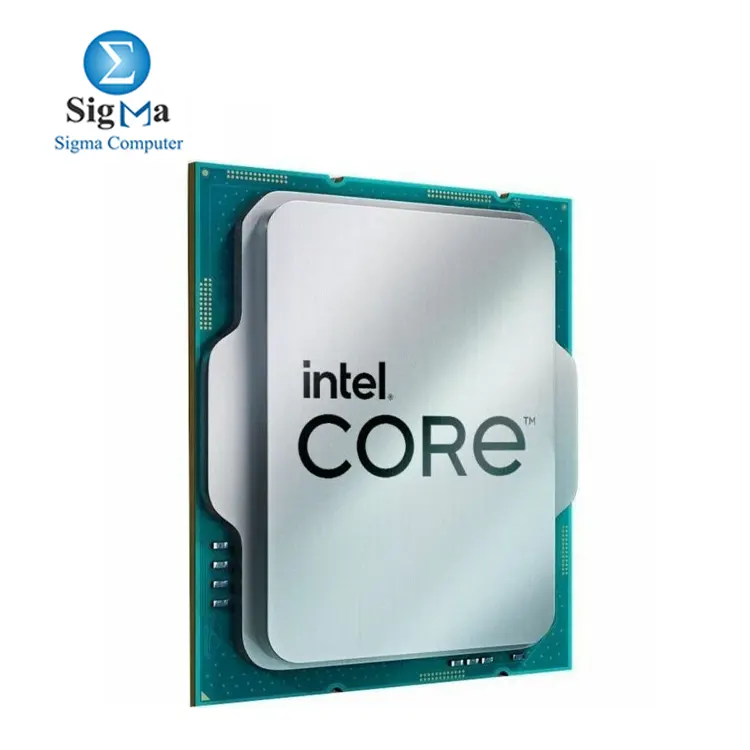

Intel Core i7-14700F 20 Cores 28 Threads up to 5.4GHz 33MB Cache DDR5 DDR4 support PCIe 5.0 65W TDP

reviews | Write a review

16700 LE

Availability: In Stock

shipped by (sff4$vjs2hf5kg)

Point: 20

Brand : Intel

Model : BX8071514700FSRN3Z

Seller : sff4$vjs2hf5kg

Viewed : 5869 items

Intel® Core™ i7-14700F – Key Specs

Cores / Threads: 20 (8P + 12E) / 28
Base Clock: 2.1 GHz (P-core), 1.5 GHz (E-core)
Max Turbo Clock: Up to 5.4 GHz
Cache: 33 MB Smart Cache, 28 MB L2
TDP: 65W Base, 219W Max Turbo
Memory Support: Up to 192GB DDR5-5600 / DDR4-3200
PCIe Support: PCIe 5.0 + 4.0, up to 20 lanes
Socket: LGA1700
Architecture: Raptor Lake (14th Gen)
Intel® Thread Director + Turbo Boost Max 3.0
Virtualization & Security Features Supported

Seller note

005050228000032

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Intel® Core™ i7-14700F Processor

Model: BX8071514700F – SSpec: SRN3Z
Code Name: Raptor Lake (14th Gen)
Launch Date: Q1'24
Market Segment: Desktop
Socket: LGA1700
Lithography: Intel 7

CPU Specifications

Total Cores: 20 (8 Performance-cores + 12 Efficient-cores)
Total Threads: 28
Max Turbo Frequency: 5.4 GHz
P-core Max Turbo Frequency: 5.3 GHz
E-core Max Turbo Frequency: 4.2 GHz
P-core Base Frequency: 2.1 GHz
E-core Base Frequency: 1.5 GHz
Intel® Turbo Boost Max Technology 3.0: Yes (up to 5.4 GHz)
Cache:
- 33 MB Intel® Smart Cache
- 28 MB L2 Cache
Processor Base Power: 65W
Maximum Turbo Power: 219W
Tjunction Max: 100°C

Memory Specifications

Max Memory Capacity: 192 GB
Memory Types Supported:
- DDR5 up to 5600 MT/s
- DDR4 up to 3200 MT/s
Max Memory Channels: 2
Max Memory Bandwidth: 89.6 GB/s

Expansion and I/O

DMI Version: 4.0
Max DMI Lanes: 8
PCI Express Revision: PCIe 5.0 and 4.0
PCIe Configurations: Up to 1x16 + 4, or 2x8 + 4
Max PCIe Lanes: 20

Package Details

Package Size: 45.0 mm x 37.5 mm
Thermal Solution Spec: PCG 2020C
Max CPU Configuration: 1S

Advanced Technologies

Intel® Thread Director
Intel® Deep Learning Boost (DL Boost)
Intel® Speed Shift Technology
Intel® Hyper-Threading Technology
Intel® Virtualization (VT-x, VT-d, EPT)
Intel® Turbo Boost Technology 2.0 & 3.0
Intel® Volume Management Device (VMD)
Intel® Gaussian & Neural Accelerator 3.0
Intel® 64 Architecture
Instruction Set: 64-bit, SSE4.1/4.2, AVX2
Enhanced Intel SpeedStep® Technology
Thermal Monitoring Technologies

Security Features

Intel® Control-Flow Enforcement Technology
Intel® AES New Instructions
Intel® OS Guard
Intel® Boot Guard
Execute Disable Bit
Mode-based Execute Control (MBEC)
Intel® Standard Manageability (ISM)
