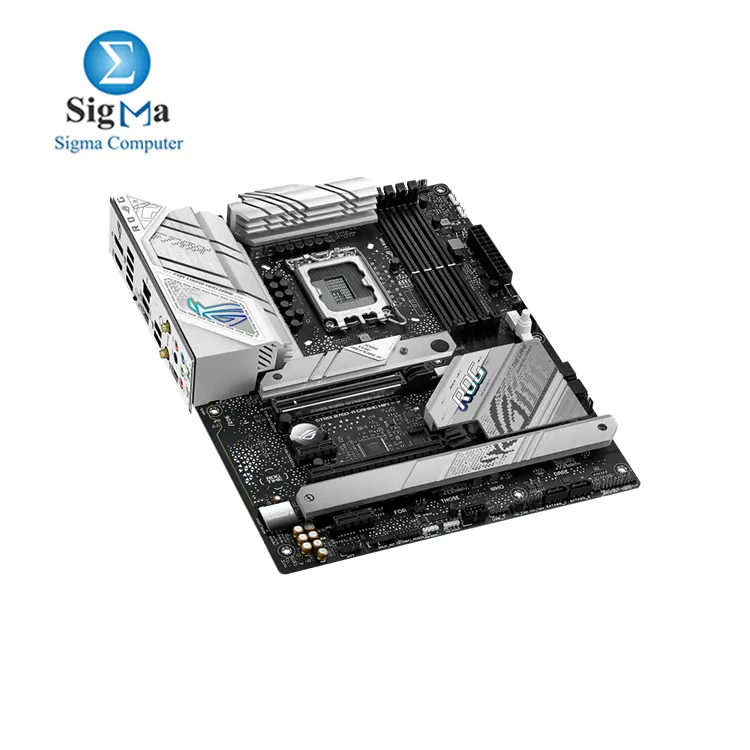

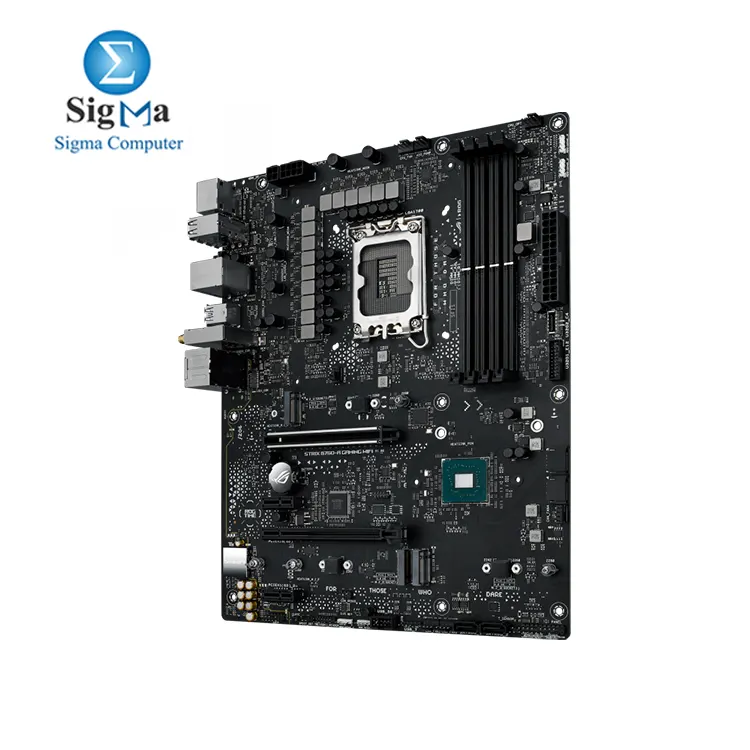

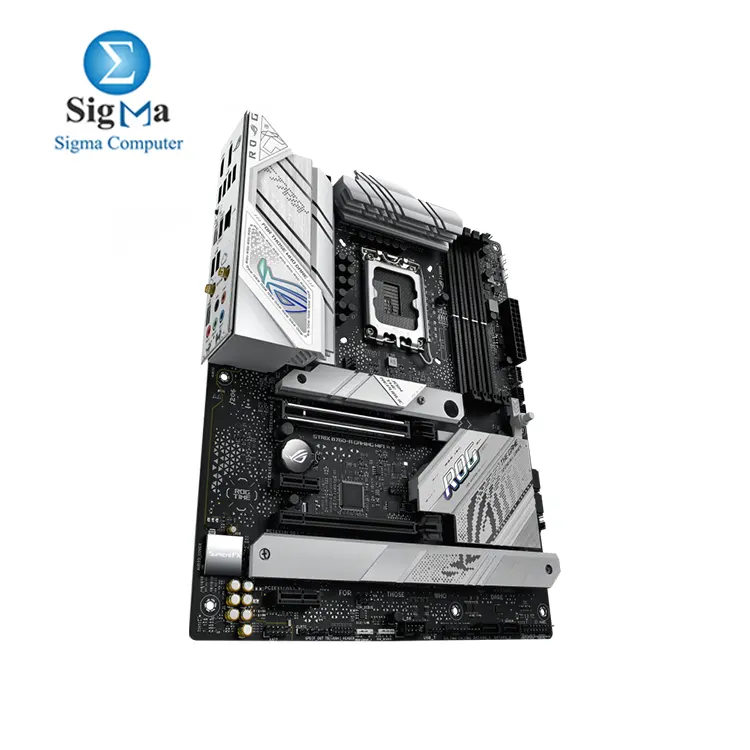

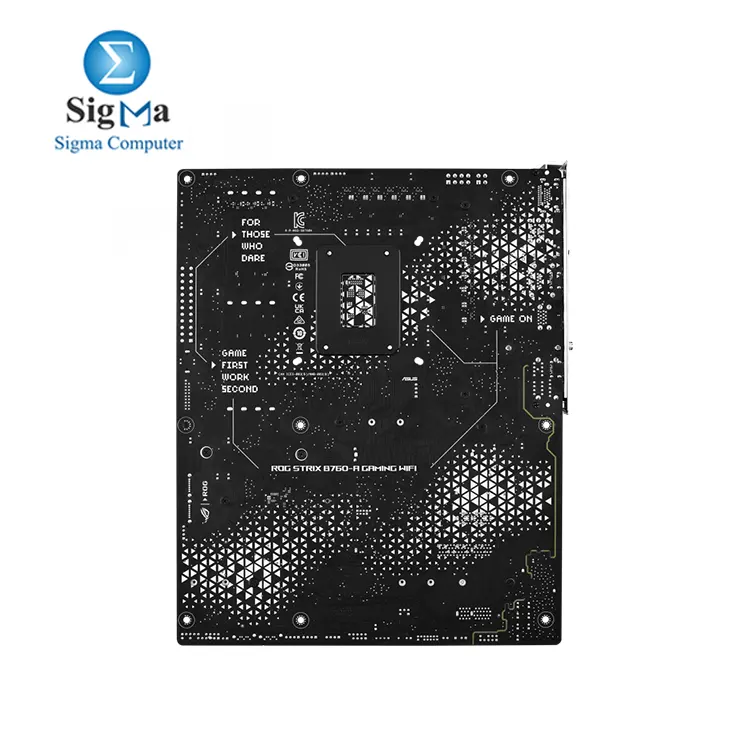

ASUS ROG STRIX B760-A GAMING WIFI Intel LGA1700 support up to 192GB DDR5 PCIe 5.0 x16 Wi-Fi 6E 2.5Gb Ethernet 3 M.2 slots and Aura Sync RGB

reviews | Write a review

12000 LE

Availability: In Stock only 3 item left

shipped by (sigma)

Point: 30

Brand : ASUS

Model : ROG STRIX B760-A GAMING WIFI

Seller : sigma

Viewed : 3148 items

ASUS ROG STRIX B760-A GAMING WIFI – Highlights

Socket: LGA1700 (Intel 14th/13th/12th Gen)

Chipset: Intel B760

RAM: 4 x DDR5, up to 192GB, 7800+ MHz (OC)

Storage: 3 x M.2 PCIe 4.0, 4 x SATA

GPU Slot: 1 x PCIe 5.0 x16

LAN: Intel 2.5Gb Ethernet

Wi-Fi: Wi-Fi 6E + Bluetooth 5.3

USB Ports: USB-C Gen 2x2, USB 3.2 Gen 2/1, USB 2.0

Audio: SupremeFX ALC4080, 7.1 Surround

RGB: Aura Sync, ARGB & RGB headers

Form Factor: ATX

Seller note

010084167000084

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Model: ASUS ROG STRIX B760-A GAMING WIFI
Form Factor: ATX (30.5 cm x 24.4 cm)

CPU Support

Intel® Socket LGA1700 for:
- 14th / 13th / 12th Gen Intel® Core™ Processors
- Pentium® Gold & Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0

Chipset

Intel® B760 Chipset

Memory

4 x DIMM slots, up to 192GB DDR5
Supports up to DDR5 7800+(OC)
Dual Channel Architecture
Intel® XMP support
ASUS OptiMem II

Graphics Output

1 x DisplayPort 1.4 (Max 4K@60Hz)
1 x HDMI 2.1 (Max 4K@60Hz)
Output depends on CPU capabilities

Expansion Slots

1 x PCIe 5.0 x16 (from CPU)
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
Note: PCIe x1 slots share bandwidth with PCIe x16 (B760 chipset)

Storage

3 x M.2 (PCIe 4.0 x4):
- M.2_1: 2242/2260/2280 (from CPU)
- M.2_2: 2242/2260/2280/22110
- M.2_3: 2242/2260/2280
4 x SATA 6Gb/s
Supports RAID 0/1/5/10 (Intel® RST)

Networking

Intel® 2.5Gb Ethernet with ASUS LANGuard
Wi-Fi 6E (2x2, 2.4/5/6GHz)
Bluetooth® v5.3

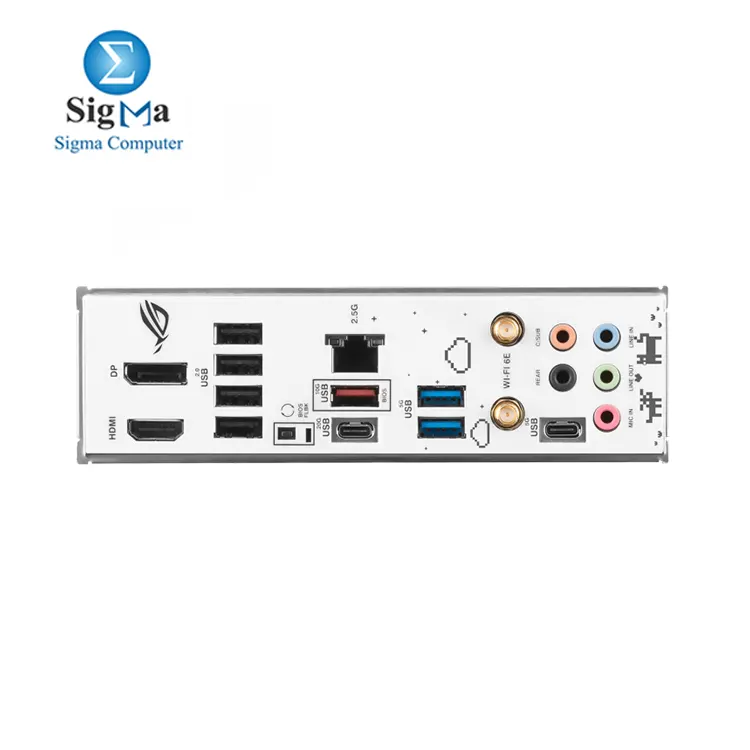

Rear I/O Ports

1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
1 x USB 3.2 Gen 2 Type-A (10Gbps)
3 x USB 3.2 Gen 1 (2 x Type-A, 1 x Type-C)
4 x USB 2.0
1 x HDMI, 1 x DisplayPort
1 x Intel® 2.5Gb Ethernet port
1 x Wi-Fi module
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Cooling:
- 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump
- 4 x Chassis Fan
Power:
- 1 x 24-pin ATX
- 1 x 8-pin +12V
- 1 x 4-pin +12V
USB:
- 1 x USB 3.2 Gen 2 Type-C
- 1 x USB 3.2 Gen 1 header (for 2 ports)
- 1 x USB 2.0 header + 1 x 5-1 pin (for 3 ports)
Others:
- 3 x Addressable Gen 2 RGB headers
- 1 x Aura RGB header
- 1 x Clear CMOS, 1 x Thermal Sensor
- 1 x Front Panel Audio (AAFP)
- 1 x Thunderbolt (USB4) header
- 1 x S/PDIF Out header
- 1 x 20-5 pin System Panel header

Audio

ROG SupremeFX ALC4080 7.1 Surround Sound
120dB SNR Playback / 113dB Recording
High-end audio components:
- Savitech SV3H712 AMP
- Premium capacitors
- Isolated PCB layers & audio shielding
Supports up to 32-bit / 384kHz playback

Special Features

Q-Design: Q-DIMM, Q-Slot, Q-LED, M.2 Q-Latch, PCIe Q-Release
Pre-mounted I/O shield
SafeSlot, SafeDIMM, ProCool connectors
Heatsinks for VRM & M.2
BIOS FlashBack™ support
Aura Sync RGB

Bundled Software

ROG Exclusive:
- GameFirst VI, ROG CPU-Z
- Sonic Studio III, Sonic Radar III, DTS Sound Unbound
ASUS Exclusive:
- Armoury Crate, Aura Creator, Fan Xpert 4
- AI Suite 3, PC Cleaner, Power Saving
- AIDA64 Extreme (60-day trial)
- MyASUS, Adobe Creative Cloud (trial)
- Norton 360 for Gamers, WinRAR

BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Features: CrashFree BIOS 3, EZ Flash 3, EZ Mode, MemTest86

Accessories

2 x SATA 6Gb/s Cables
1 x Thermal Pad (M.2)
1 x ASUS Wi-Fi Antennas
M.2 Q-Latch, Rubber Packages
Cable Ties, ROG Stickers, Thank You Card
User Guide

OS Compatibility

Windows® 11 / 10 64-bit

Category	Desktop
Subcategory	Motherboard
Brand	ASUS
Model	ROG STRIX B760-A GAMING WIFI

ASUS ROG STRIX B760-A GAMING WIFI Intel LGA1700 support up to 192GB DDR5 PCIe 5.0 x16 Wi-Fi 6E 2.5Gb Ethernet 3 M.2 slots and Aura Sync RGB
