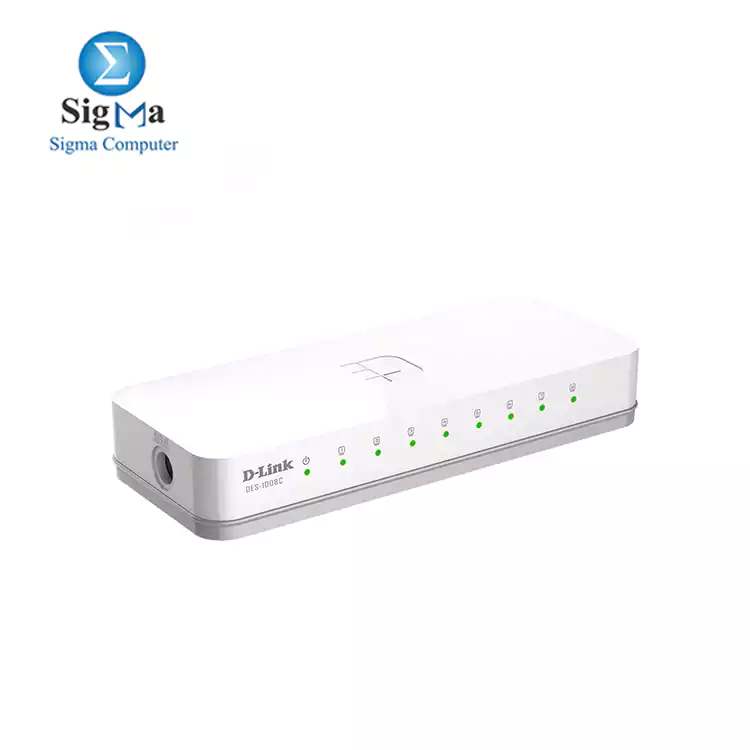

D-LINK DES-1008C 8-Port 10/100 Mbps Unmanaged Switch | 125 EGP

D-LINK DES-1008C 8-Port 10 100 Mbps Unmanaged Switch

125 LE
shipped by (sigma)
Point: 10

Brand : D-Link brand

Model : DES-1008C

Seller : sigma

Viewed : 3171 items

8 high-speed Fast Ethernet ports
Innovative D-Link Green energy saving features
Compact design for convenient placement
Fanless design for silent operation
100Base-TX Interface 8
Auto MDI/MDIX Yes
Switching Capacity 1.6 Gbps
Max. Packet Forwarding Rate 1.19 Mpps
Store & Forwarding Forwading Yes
Dimension 131x54x21mm


100Base-TX Interface 8
Auto MDI/MDIX Yes
Switching Capacity 1.6 Gbps
Max. Packet Forwarding Rate 1.19 Mpps
Store & Forwarding Forwading Yes
Dimension 131x54x21mm
Weight 0.0742kgs
Operation Temperature 0 ~ 40  °C
Storage Temperature - 40 ~ 70 °C
Operation Humidity 10% ~ 90% RH
Storage Humidity 5% ~ 95% RH
Maximum Power Consumption 1.55watts
Standby Power Consumption 0.55 watts
Maximum Heat Dissipation 0.691 BTU/h
MTBF 1,579,582 hours

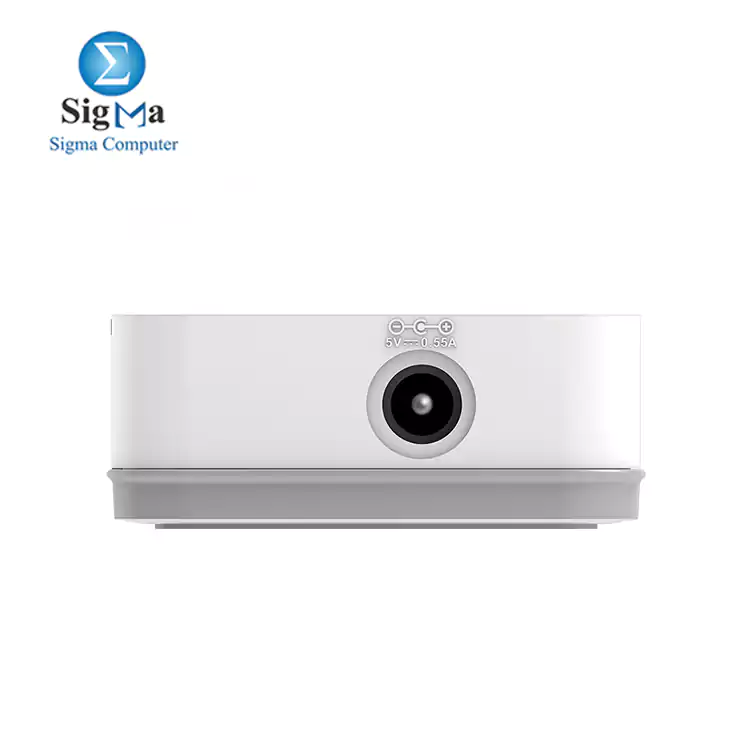

Power Input DC: 5V, 0.55A
Packet Buffer Size 96KBytes
Fan Fanless
Energy Efficiency Ethernet (EEE) Yes
Power Saving By Link Status Yes
MAC Address Table 2,000
802.3x Flow Control Yes
Head-of-line (HOL) Blocking Prevention Yes
Jumbo Frame 2048 Bytes
