AMD Ryzen 5 4500 6-core, 12-thread processor with a 3.6 GHz base clock, 4.1 GHz boost, 8MB L3 cache, 65W TDP, and supports DDR4-3200 memory, requiring a discrete GPU | 3750 EGP

AMD Ryzen 5 4500 6-core 12-thread processor with a 3.6 GHz base clock 4.1 GHz boost 8MB L3 cache 65W TDP and supports DDR4-3200 memory requiring a discrete GPU

3750 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : AMD brand

Model : 4500

Seller : sigma

Viewed : 15321 items

AMD Ryzen 5 4500 - Key Specs

  • Cores / Threads: 6C / 12T
  • Base / Boost Clock: 3.6 GHz / Up to 4.1 GHz
  • Cache: 3MB L2 / 8MB L3
  • TDP: 65W
  • Architecture: Zen 2 (7nm)
  • PCIe Version: PCIe 3.0
  • Memory Support: DDR4-3200, Dual Channel, Up to 128GB
  • Socket: AM4 (Supports B450, B550, X570, etc.)
  • Integrated Graphics: No (Requires a discrete GPU)

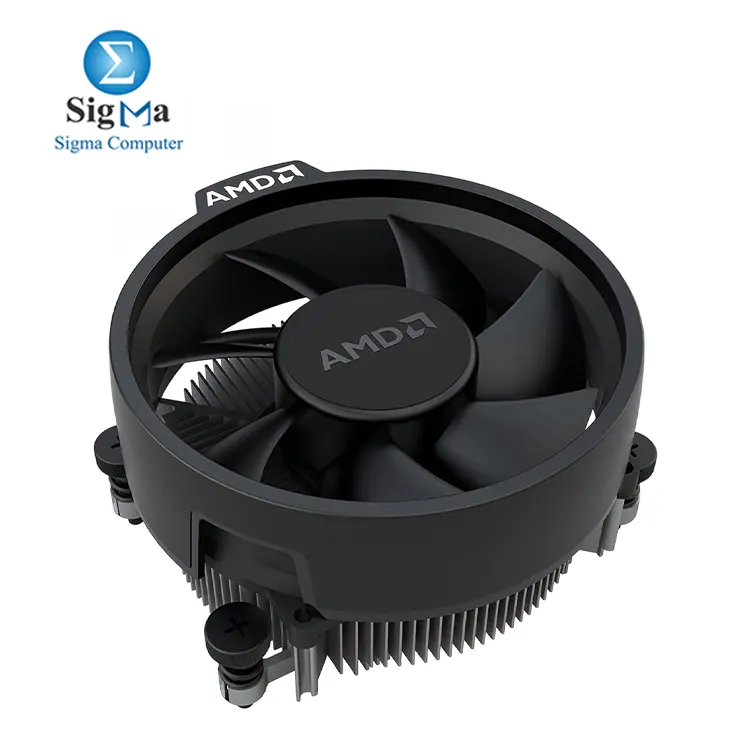

  • Cooler Included: AMD Wraith Stealth
  • Overclocking: Yes

AMD Ryzen 5 4500:

General Specifications

  • Name: AMD Ryzen™ 5 4500
  • Family: Ryzen
  • Series: Ryzen 4000 Series
  • Form Factor: Desktop, Boxed Processor
  • Market Segment: Mainstream Desktop
  • Consumer Use: Yes
  • Regional Availability: Global
  • Codename: Renoir
  • Architecture: Zen 2

Performance

  • Cores: 6
  • Threads: 12
  • Base Clock: 3.6 GHz
  • Max Boost Clock: Up to 4.1 GHz
  • L1 Cache: 384 KB
  • L2 Cache: 3 MB
  • L3 Cache: 8 MB
  • TDP: 65W
  • Unlocked for Overclocking: Yes

Manufacturing & Compatibility

  • Process Technology: TSMC 7nm FinFET
  • CPU Die Size: 156 mm²
  • Package Die Count: 1
  • CPU Socket: AM4
  • Compatible Chipsets: X570, X470, X370, B550, B450, B350, A520

Features & Technologies

  • CPU Boost Technology: Precision Boost 2
  • Instruction Set: x86-64
  • Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3

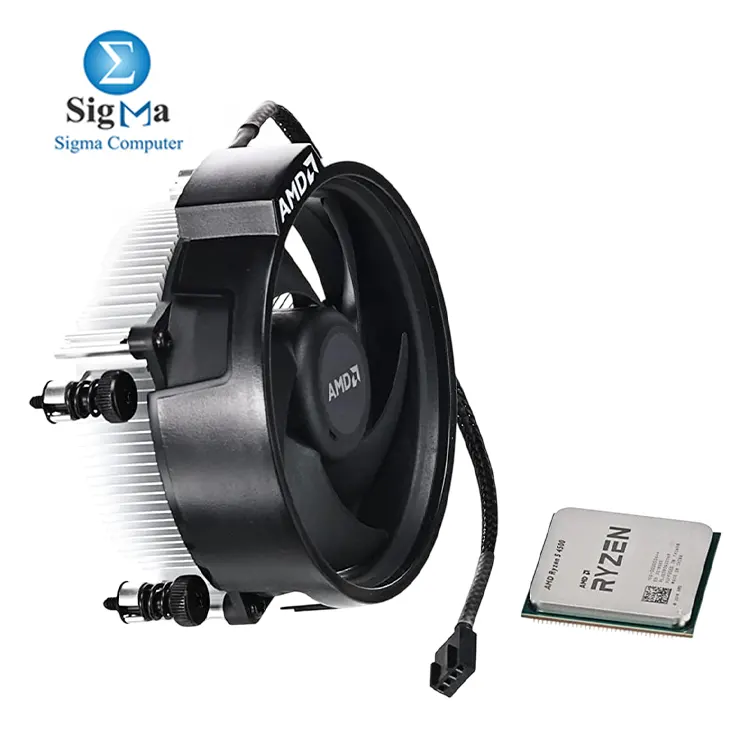

  • Thermal Solution (PIB): AMD Wraith Stealth
  • Max Operating Temperature (Tjmax): 95°C
  • Launch Date: April 2022

Connectivity & Expansion

  • PCIe Version: PCIe 3.0
  • Native PCIe Lanes (Total/Usable): 24 / 20
  • NVMe Support: Boot, RAID 0, RAID 1, RAID 10
  • USB Support:
    • USB 3.2 Gen 2 (10Gbps): 4
    • USB 3.2 Gen 1 (5Gbps): 0
    • USB 2.0 (480Mbps): 0
  • Native SATA Ports: 2

Memory Support

  • Memory Type: DDR4
  • Memory Channels: 2
  • Max Memory: 128GB
  • Memory Speed:
    • 2x1R: DDR4-3200
    • 2x2R: DDR4-3200
    • 4x1R: DDR4-2933
    • 4x2R: DDR4-2667
  • ECC Support: No

Graphics

  • Integrated Graphics: No (Discrete GPU Required)

Key Features & Supported Technologies

  • AMD StoreMI Technology
  • AMD Ryzen™ VR-Ready Premium
CategoryDesktop
SubcategoryProcessors
BrandAMD
Model4500
