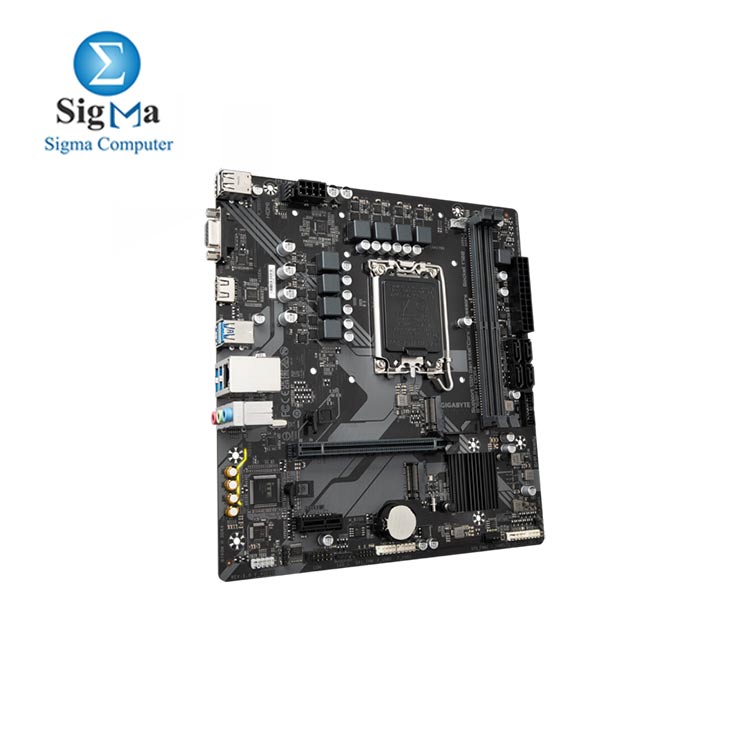

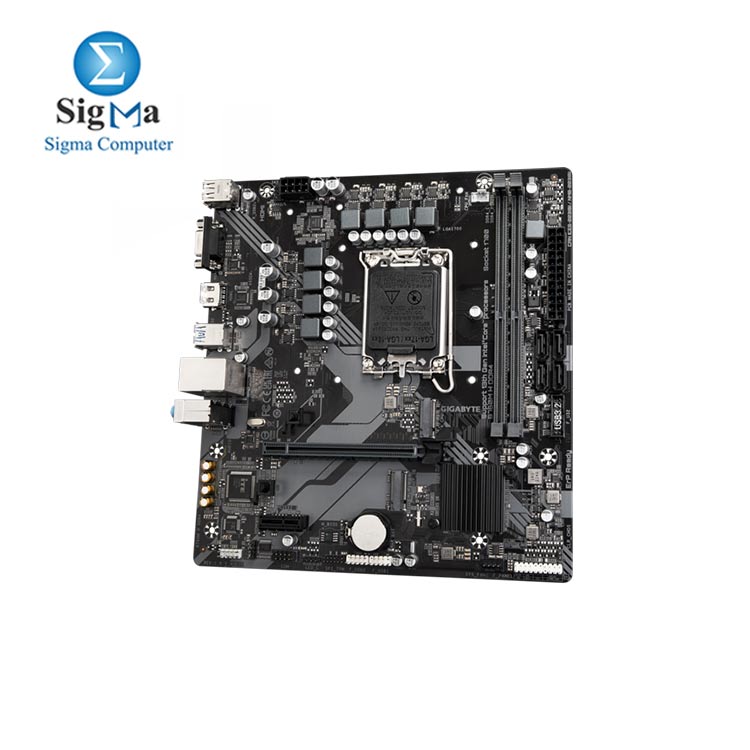

Gigabyte B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs 6 1 1 Phases Digital VRM up to 3200MHz DDR4 OC 2xPCIe 4.0 M.2 GbE LAN USB 3.2 Gen1

reviews | Write a review

5000 LE

Availability: In Stock

shipped by (sigma)

Point: 20

Brand : Gigabyte

Model : B760M H

Seller : sigma

Viewed : 8522 items

Gigabyte B760M H DDR4 Motherboard:

CPU Support: Intel® Core™ 12th, 13th, and 14th Gen, Pentium® Gold, and Celeron® (LGA1700 socket)

Chipset: Intel® B760 Express

Memory: 2 x DDR4 DIMM slots, up to 64GB (32GB per DIMM), supports DDR4 3200/3000/2933/2666/2400/2133 MT/s and XMP

Integrated Graphics: Intel® HD Graphics, HDMI 2.1 (4096x2160@60Hz), D-Sub (1920x1200@60Hz)

Audio: Realtek® Audio CODEC, 7.1-channel support, S/PDIF Out

Networking: Realtek® GbE LAN (1 Gbps)

Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

Storage: 2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID support

USB Ports: 6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1

Form Factor: Micro ATX (23.0cm x 21.5cm)

OS Support: Windows 10/11 64-bit

Seller note

010062151000137

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Gigabyte B760M H DDR4 Motherboard is designed for users who want a high-performance and flexible motherboard supporting the latest Intel processors and memory. Here's a detailed breakdown of its specifications:

CPU Compatibility:

Socket: LGA1700
Supported Processors: Intel® Core™ 12th, 13th, and 14th Gen, Pentium® Gold, and Celeron® Processors
L3 Cache: Varies based on CPU choice.

Chipset:

Intel® B760 Express Chipset

Memory:

Memory Support: DDR4 3200/3000/2933/2666/2400/2133 MT/s
Slots: 2 x DDR4 DIMM slots
Capacity: Up to 64GB (32 GB per DIMM)
ECC Support: Non-ECC unbuffered DIMM (1Rx8/2Rx8) modules supported
XMP Support: Yes, for Extreme Memory Profile (XMP) modules

Graphics:

Integrated Graphics Processor: Intel® HD Graphics
Video Outputs:
- 1 x D-Sub (max. 1920x1200@60 Hz)
- 1 x HDMI (max. 4096x2160@60 Hz, supports HDMI 2.1 and HDCP 2.3)
Graphics Specs may vary depending on CPU support.

Audio:

Audio Codec: Realtek® Audio CODEC
Channels: 2/4/5.1/7.1
Other: S/PDIF Out support, customizable audio jack functionality

Networking:

LAN Chip: Realtek® GbE LAN (1 Gbps/100 Mbps)

Expansion Slots:

CPU:
- 1 x PCI Express x16 (supports PCIe 4.0 at x16)
- Only supports either a graphics card or NVMe SSD
Chipset:
- 1 x PCI Express x1 (supports PCIe 3.0)

Storage:

M.2 Slots:
- 1 x PCIe 4.0 x4/x2 SSD (M2A_CPU)
- 1 x PCIe 4.0 x4/x2 SSD (M2P_SB)
SATA: 4 x SATA 6Gb/s connectors
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for SATA devices

USB Ports:

USB 3.2 Gen 1: 6 ports (4 on the back panel, 2 internal)
USB 2.0/1.1: 6 ports (2 on the back panel, 4 internal)

Internal Connectors:

24-pin ATX power, 8-pin ATX 12V power
CPU fan header, 2 system fan headers
RGB LED strip header
2 x M.2 Socket 3 connectors, 4 SATA connectors
USB, S/PDIF, serial port, TPM, and clear CMOS headers

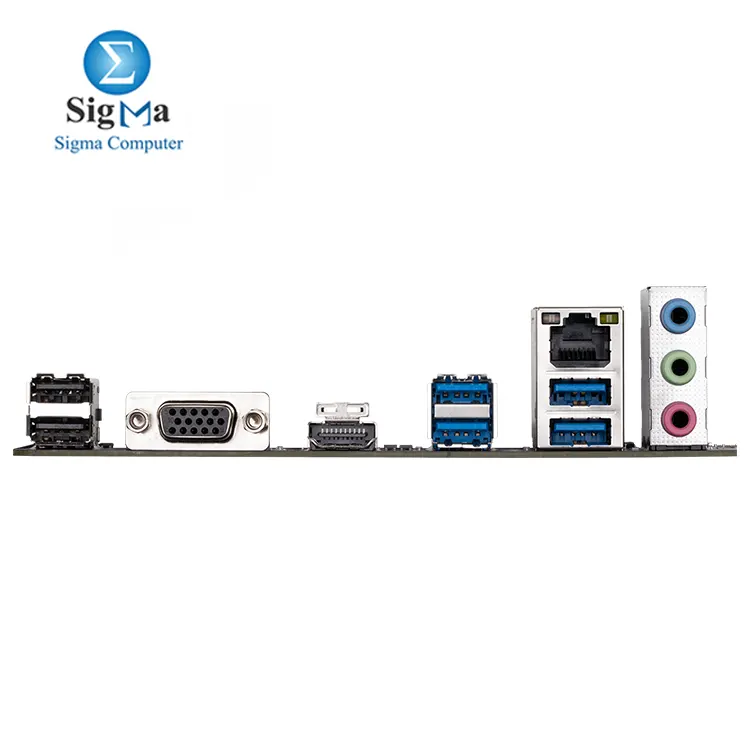

Back Panel Connectors:

2 x USB 2.0/1.1, 1 x D-Sub, 1 x HDMI
4 x USB 3.2 Gen 1, 1 x RJ-45 Ethernet
3 x Audio jacks

I/O Controller:

iTE® I/O Controller Chip

BIOS:

Flash Memory: 128 Mbit
UEFI BIOS: Supports AMI UEFI, PnP, DMI, ACPI

Unique Features:

GIGABYTE Control Center (GCC) for system management
Q-Flash for BIOS updating

Bundled Software:

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System Support:

Windows 10 (64-bit)
Windows 11 (64-bit)

Form Factor:

Micro ATX: 23.0cm x 21.5cm
