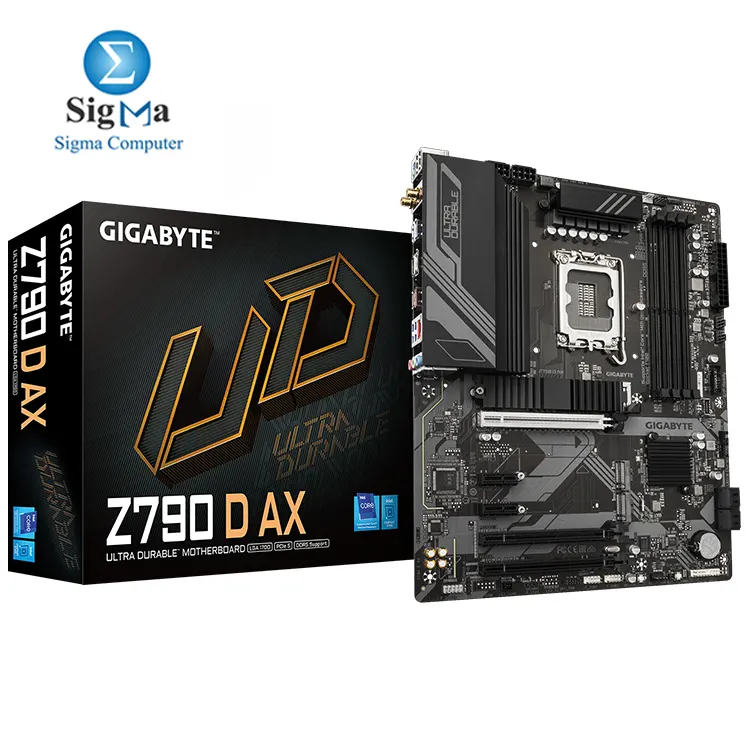

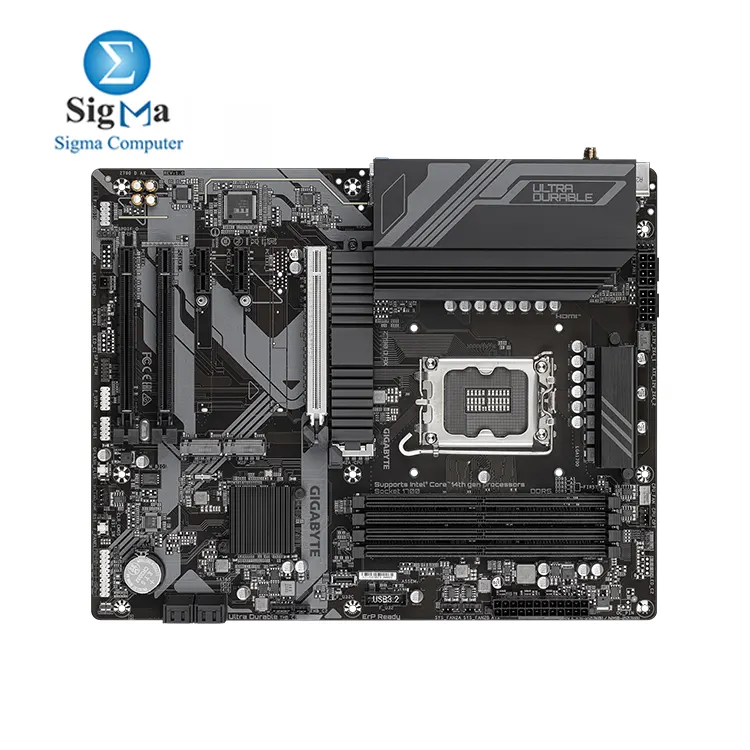

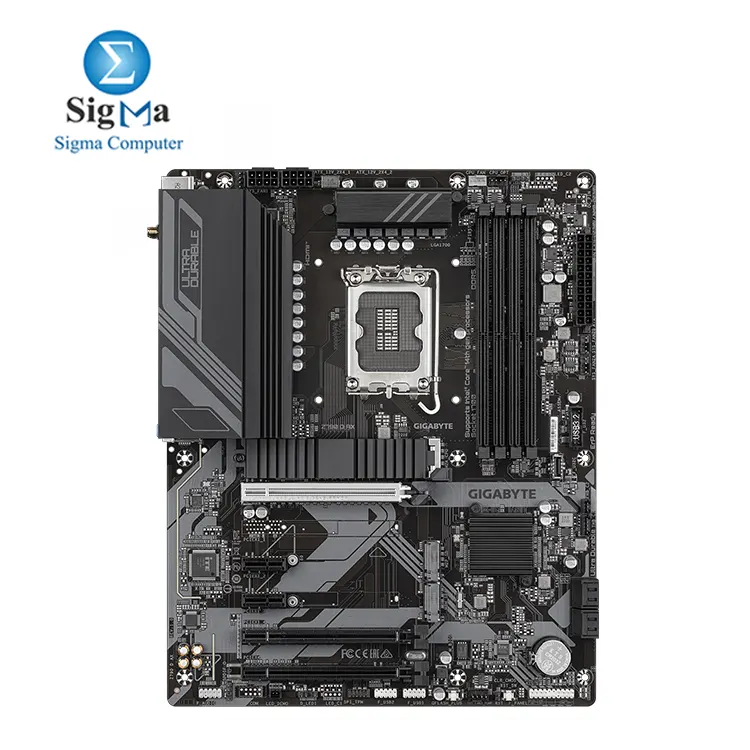

GIGABYTE Z790 D AX – ATX, LGA1700, DDR5 7600(O.C.), 3× M.2 PCIe 4.0, PCIe 5.0 x16, Wi-Fi 6E, 2.5GbE, USB-C, HDMI, Q-Flash Plus | 10700 EGP

GIGABYTE Z790 D AX ATX LGA1700 DDR5 7600 O.C. 3 M.2 PCIe 4.0 PCIe 5.0 x16 Wi-Fi 6E 2.5GbE USB-C HDMI Q-Flash Plus

10700 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 30

Brand : Gigabyte brand

Model : Z790 D AX

Seller : sigma

Viewed : 241 items

  • Model: GIGABYTE Z790 D AX

  • Form Factor: ATX

  • Socket: LGA1700

  • CPU Support: Intel 14th / 13th / 12th Gen

  • Memory: DDR5 up to 7600(O.C.), 4 DIMMs, 256GB Max

  • Storage: 3× M.2 PCIe 4.0, 4× SATA 6Gb/s

  • Expansion: 1× PCIe 5.0 x16, others PCIe 4.0/3.0

  • Graphics Outputs: HDMI 2.1, DisplayPort 1.2

  • Networking: 2.5GbE LAN, Intel Wi-Fi 6E, BT 5.3

  • USB: USB-C Gen2, USB 3.2, USB 2.0

  • Audio: Realtek 7.1ch, S/PDIF

  • Cooling: Smart Fan 6, hybrid headers

  • Features: Q-Flash Plus, EZ-Latch, GCC Software

  • OS Support: Windows 11 / 10 64-bit

Model: GIGABYTE Z790 D AX
Form Factor: ATX (30.5cm x 24.4cm)
Chipset: Intel® Z790 Express
Socket: LGA1700
CPU Support:

  • Intel® Core™ 14th, 13th, and 12th Gen

  • Intel® Pentium® Gold and Celeron®


Memory

  • 4× DDR5 DIMM slots, up to 256GB

  • Dual channel architecture

  • Supports DDR5 7600(O.C.) to 4400 MT/s (depending on CPU)

  • Supports XMP 3.0, ECC/Non-ECC Un-buffered DIMMs


Graphics

  • Integrated Intel® HD Graphics (depends on CPU)

  • 1× HDMI 2.1 (max 4096x2160@60Hz)

  • 1× DisplayPort 1.2 (max 4096x2304@60Hz)

  • Supports HDCP 2.3


Expansion Slots

  • 1× PCIe 5.0 x16 (CPU)

  • 1× PCIe 4.0 x4

  • 1× PCIe 3.0 x1

  • 2× PCIe 3.0 x1


Storage

  • 3× M.2 (PCIe 4.0 x4/x2, SATA support on one)

  • 4× SATA 6Gb/s

  • RAID 0/1/5/10 for NVMe & SATA


USB

Rear Panel:

  • 1× USB-C® 3.2 Gen 2

  • 1× USB-A 3.2 Gen 2

  • 4× USB-A 3.2 Gen 1

  • 2× USB 2.0

Internal:

  • 1× USB-C® 3.2 Gen 1

  • 1× USB 3.2 Gen 1 header (2 ports)

  • 2× USB 2.0 headers (4 ports)


Networking

  • LAN: Realtek® 2.5GbE

  • Wi-Fi: Intel® Wi-Fi 6E AX211 (2.4/5/6GHz)

  • Bluetooth: 5.3


Audio

  • Realtek® Audio CODEC

  • 2/4/5.1/7.1-channel HD Audio

  • S/PDIF Out supported


Cooling & Monitoring

  • Smart Fan 6: Multiple temp sensors & hybrid headers

  • 1× CPU fan, 1× CPU/WP, 3× SYS fan, 1× SYS/WP

  • Water cooling flow rate detection

  • Fan fail warning

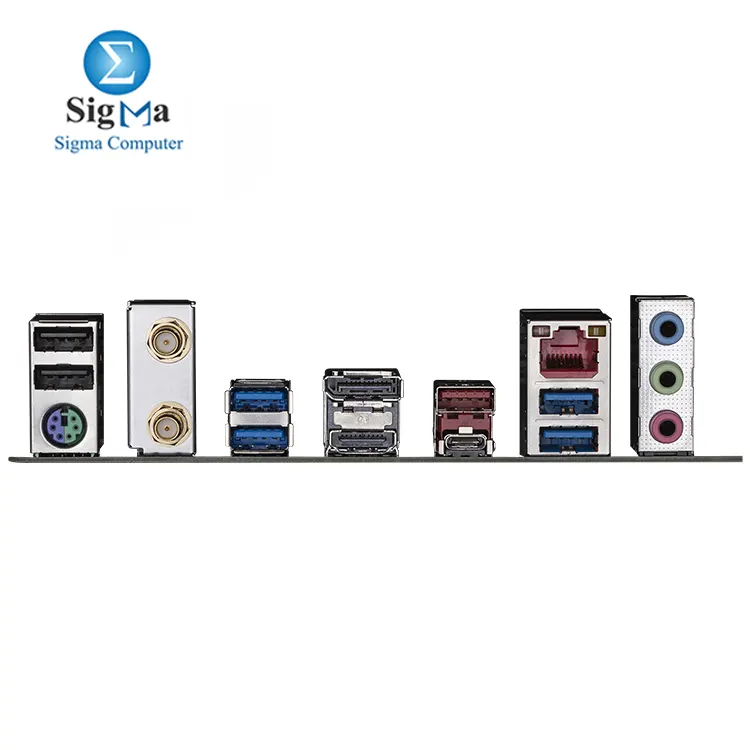

Rear I/O Ports

  • 1× PS/2 keyboard/mouse

  • 1× HDMI, 1× DisplayPort

  • 1× RJ-45 (2.5GbE)

  • 2× SMA antenna connectors

  • 6× USB ports (as above)

  • 3× Audio jacks


Internal I/O

  • 2× 8-pin + 1× 24-pin power connectors

  • 3× M.2 connectors

  • 4× SATA 6Gb/s

  • 1× Front panel header

  • 1× Front panel audio, 1× S/PDIF header

  • 2× ARGB headers

  • 2× Thunderbolt™ add-in card connectors

  • TPM header, Q-Flash Plus button, Reset button


BIOS & Software

  • AMI UEFI BIOS (256 Mbit flash)

  • Q-Flash & Q-Flash Plus support

  • GIGABYTE Control Center (GCC), Smart Backup

  • Norton® Internet Security OEM


OS Support

  • Windows 11 64-bit

  • Windows 10 64-bit
