GIGABYTE B550 EAGLE AM4 Ryzen 5000 4000G 3000 support 4x DDR4 128GB 2x M.2 PCIe 4.0 HDMI 2.1 Realtek LAN Audio USB 3.2 Gen2 ATX.

GIGABYTE B550 EAGLE AM4 Ryzen 5000 4000G 3000 support 4x DDR4 128GB 2x M.2 PCIe 4.0 HDMI 2.1 Realtek LAN Audio USB 3.2 Gen2 ATX.

reviews | Write a review

6500 LE

Availability: In Stock only 3 item left

shipped by (sigma)

Point: 20

Brand : Gigabyte

Model : B550 EAGLE

Seller : sigma

Viewed : 332 items

Model: GIGABYTE B550 EAGLE
CPU: AM4, Ryzen 5000/4000G/3000
Chipset: B550
RAM: 4x DDR4, up to 128GB, 3200MHz, Dual Channel
Graphics: HDMI 2.1 (up to 4K@60Hz, CPU-dependent)
Storage: 2x M.2, 4x SATA, RAID 0/1/10
Slots: 1x PCIe x16, 4x PCIe x1
Audio: Realtek 7.1 HD
LAN: Realtek GbE
USB: USB 3.2 Gen2, USB-C, USB 3.2 Gen1, USB 2.0
RGB: 2x ARGB, 2x RGB headers
Features: Q-Flash Plus, RGB Fusion, EasyTune
OS: Windows 10/11 64-bit

Seller note

010062152000079

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Model: GIGABYTE B550 EAGLE

Form Factor: ATX (30.5cm x 24.4cm)

CPU Support

AMD Socket AM4
Supports:
- Ryzen™ 5000 / 5000 G-Series
- Ryzen™ 4000 G-Series
- Ryzen™ 3000 / 3000 G-Series
(Check GIGABYTE website for latest compatibility)

Chipset

AMD B550

Memory

4 x DDR4 DIMM slots (up to 128 GB)
Dual Channel Architecture
Supports DDR4 3200/2933/2667/2400/2133 MHz
ECC/Non-ECC Un-buffered DIMMs
XMP support

Graphics

Integrated Radeon™ Graphics (depends on CPU)
1 x HDMI 2.1 port (max 4096x2160@60Hz, HDCP 2.3, HDR)
Max shared memory: 16 GB

Audio

Realtek Audio Codec
2/4/5.1/7.1-channel HD Audio
Configurable via software

LAN

Realtek® GbE LAN (1 Gbps)

Expansion Slots

1 x PCIe x16 (from CPU):
- PCIe 4.0 x16 with Ryzen 5000/3000
- PCIe 3.0 x16 with G-Series CPUs
4 x PCIe x1 (from chipset, PCIe 3.0)

Storage

2 x M.2 (NVMe/SATA support based on CPU)
- M2A_CPU: PCIe 4.0/3.0 x4/x2 + SATA
- M2B_SB: PCIe 3.0 x4/x2
4 x SATA 6Gb/s
RAID 0, 1, 10 (NVMe & SATA)

USB Ports

Rear Panel (depends on CPU):
- 1 x USB 3.2 Gen2 Type-A
- 1 x USB 3.2 Gen1 Type-C
- 2 x USB 3.2 Gen1
- 4 x USB 2.0
Internal Headers:
- 1 x USB 3.2 Gen1 Type-C
- 2 x USB 3.2 Gen1
- 4 x USB 2.0

Internal Connectors

1 x 24-pin ATX Power
1 x 8-pin CPU Power
1 x CPU Fan + 1 x CPU Pump/Fan
3 x System Fan
2 x ARGB + 2 x RGB Headers
2 x M.2
4 x SATA
1 x Front Panel
1 x Front Audio
USB: 1 x Type-C, 1 x USB 3.2 Gen1, 2 x USB 2.0
1 x TPM header
1 x Clear CMOS jumper

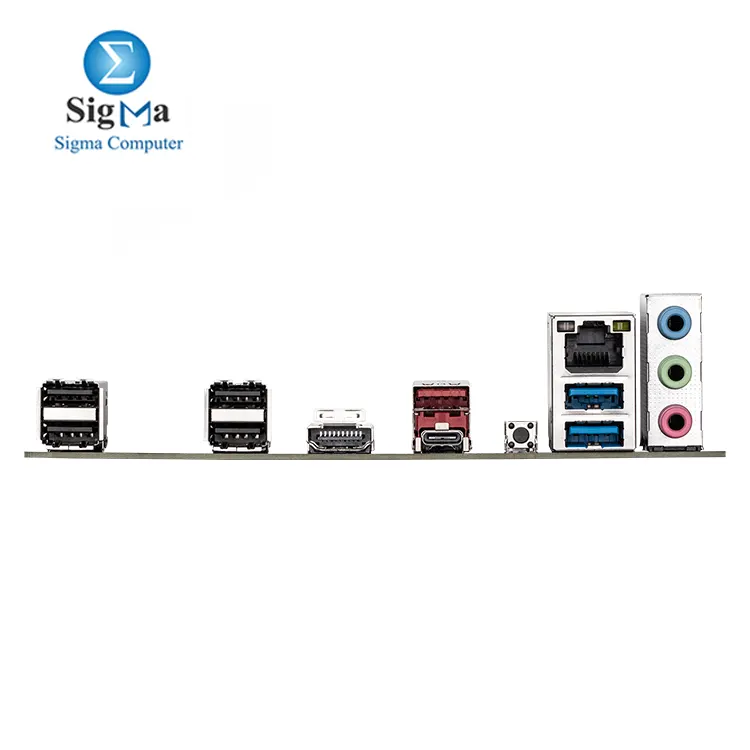

Back Panel I/O

4 x USB 2.0
1 x HDMI
1 x USB 3.2 Gen2 Type-A / Gen1 (red)
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
1 x RJ-45 (LAN)
3 x Audio Jacks
1 x Q-Flash Plus Button

BIOS

128 Mbit Flash, AMI UEFI BIOS
Support for Q-Flash & Q-Flash Plus
ACPI 5.0, SMBIOS 2.7

Software & Features

APP Center: @BIOS, EasyTune, RGB Fusion, Smart Backup, SIV
Norton Internet Security (OEM)
LAN bandwidth management

OS Support

Windows 10/11 64-bit

Category	Desktop
Subcategory	Motherboard
Brand	Gigabyte
Model	B550 EAGLE
