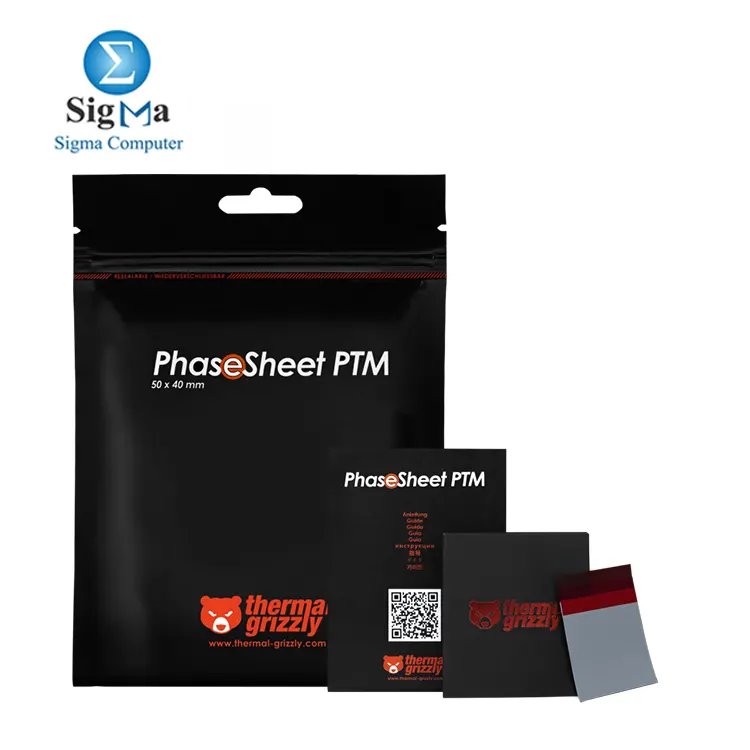

Thermal Grizzly PhaseSheet PTM 50x40 Thermal Pad - TG-PS-50-40

reviews | Write a review

550 LE

Availability: In Stock only 5 item left

shipped by (sigma)

Point: 10

Seller : sigma

Viewed : 52 items

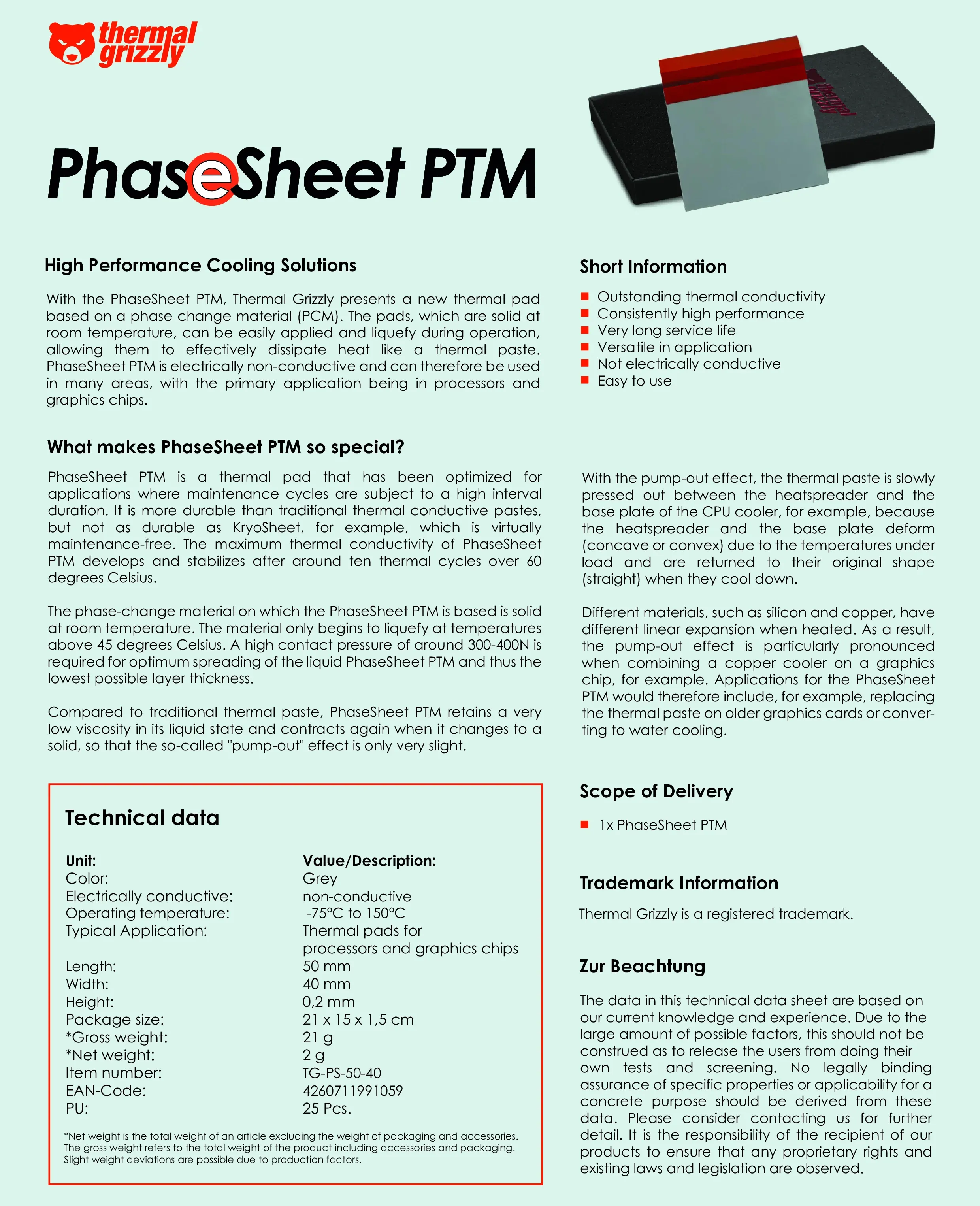

Thermal Grizzly PhaseSheet PTM 50x40 – Key Specs:

Size: 50 x 40 mm

Phase Change Material (solid at room temp, liquefies above 45°C)

Requires 300–400N contact pressure for optimal performance

Excellent thermal conductivity

Very low viscosity when liquid

Minimizes pump-out effect

Electrically non-conductive

Long lifespan

Operating Temp: -75°C to +150°C

Stabilizes after ~10 thermal cycles above 60°C

Ideal for CPUs and GPUs

Seller note

001249829000036

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Thermal Grizzly PhaseSheet PTM 50x40 Thermal Pad
Product number: S-TG-PS-50-40
EAN: 4260711991059
MPN: TG-PS-50-40

Product information: "PhaseSheet PTM - 50 x 40 mm"

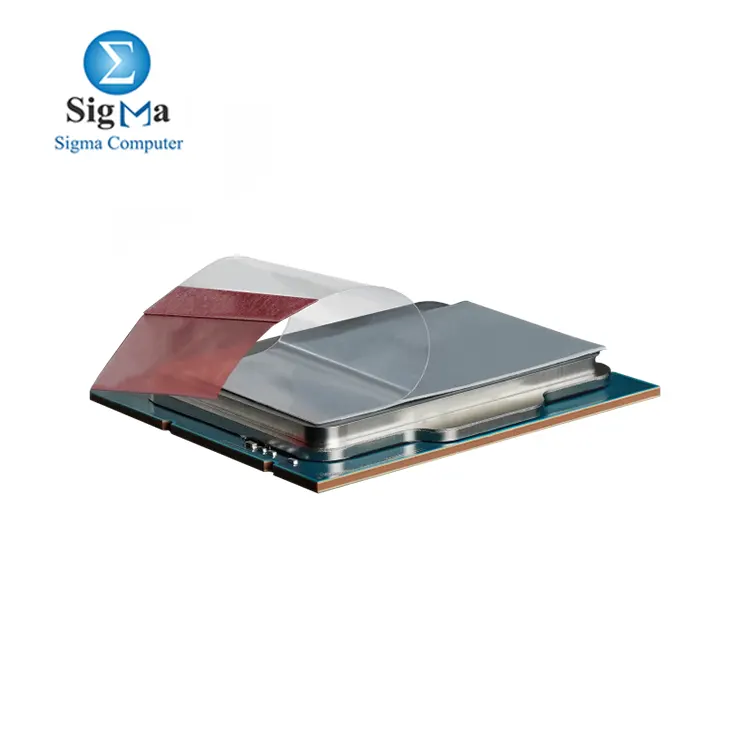

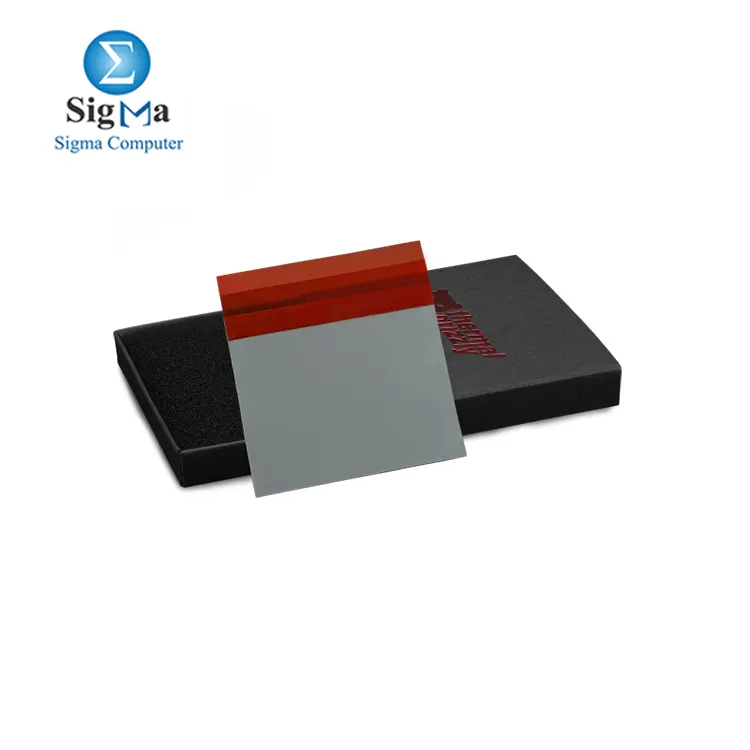

The PhaseSheet PTM is a thermal pad based on a phase change material (PCM). The pads, which are solid at room temperature, can be easily applied and liquefy during operation, allowing them to effectively dissipate heat like a thermal paste. PhaseSheet PTM is electrically non-conductive and can therefore be used in many areas, with the primary application being in processors and graphics chips.

The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45°C. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material, thus minimizing the pump-out effect.

The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated. The temperatures under load cause the heatspreader and the base plate to deform (concave or convex) and return to their original shape (straight) when they cool down. As a result, the thermal paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example.

Key Features:

Outstanding thermal conductivity
Consistently high performance
Very long service life
Versatile in application
Not electrically conductive
Easy to use

PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. PhaseSheet PTM develops and stabilizes its maximum thermal conductivity after around ten thermal cycles above 60°C.

Scope of Delivery:
1x PhaseSheet PTM

Color: Gray
Operating temperature: -75°C to +150°C

Category	Accessories
Subcategory	Thermal Pads
Brand	thermal grizzly
Model	TG-PS-50-40
