Thermal Grizzly Minus Pad 8 120x20x1.0mm 2Pcs Thermal Pad - TG-MP8-120-20-10-2R | 625 EGP

Thermal Grizzly Minus Pad 8 120x20x1.0mm 2Pcs Thermal Pad - TG-MP8-120-20-10-2R

625 LE
Availability: In Stock
shipped by (sigma)
Point: 10

Seller : sigma

Viewed : 20 items

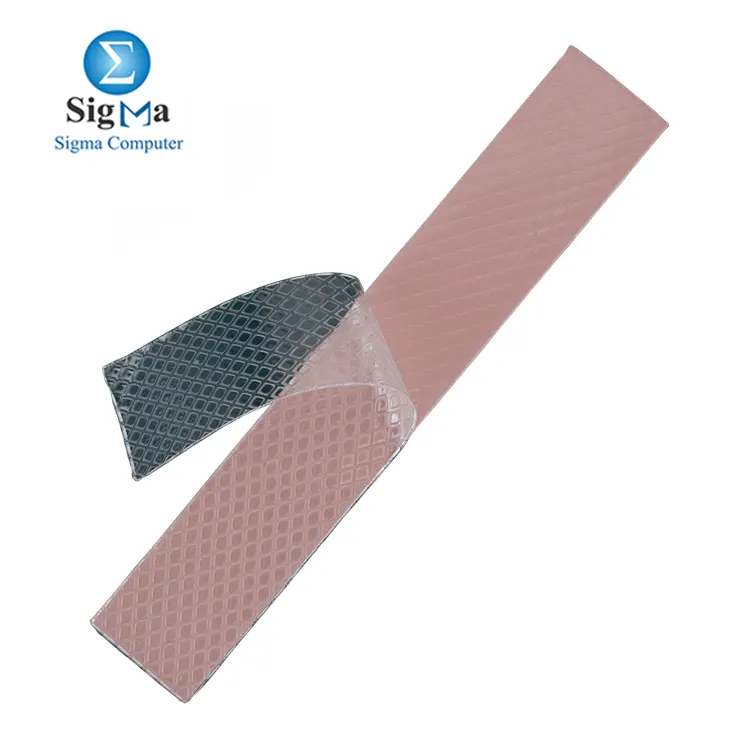

Thermal Grizzly Minus Pad 8 - 120x20mm - 1mm

  • High thermal conductivity

  • High compressibility

  • Electrical insulation (8KV/mm ASTM D149)

  • Flammability: V-0

  • Operating temperature: -100°C to +250°C

  • Material: Ceramic silicon formula complex & nano aluminum oxide

  • Color: Pink

  • Size: 120 x 20 mm

  • Thickness: 1 mm

  • Eco-friendly & RoHS-compliant


Product Name: Thermal Grizzly Minus Pad 8 120x20x1.0mm 2Pcs Thermal Pad

Product Number: S-TG-MP8-120-20-10-2R
EAN: 4260711990168
MPN: TG-MP8-120-20-10-2R

Product Information:

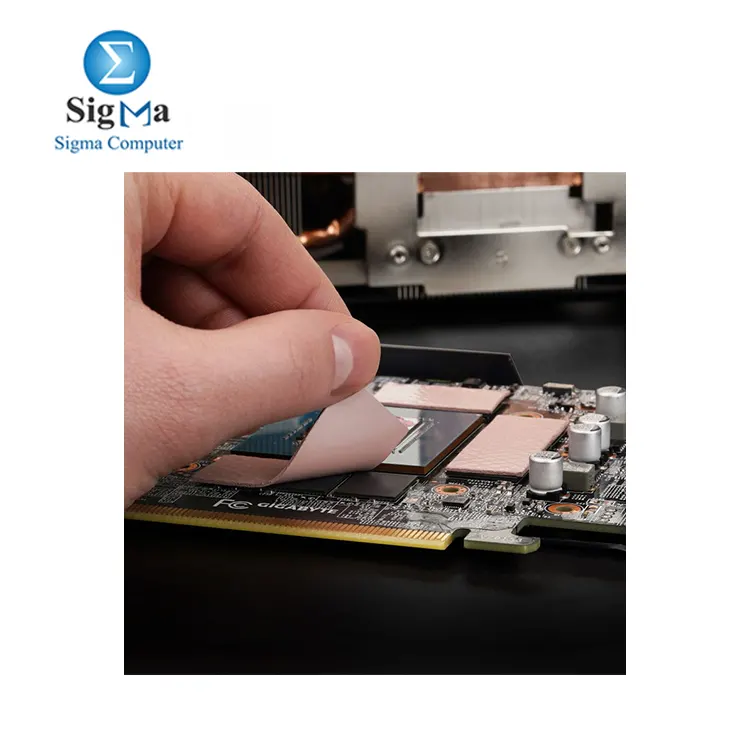

The high-performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface with high thermal conductivity, compensating for even the smallest of gaps between components. These pads are available in various sizes and thicknesses.

Made from a ceramic silicon formula complex and nano aluminum oxide, the pads ensure optimal and constant heat transfer. They are eco-friendly and RoHS-compliant.

Key Features:

  • High thermal conductivity

  • High compressibility

  • Electrical insulation

  • Available in sizes: 30x30mm, 120x20mm, 100x100mm

  • Thickness options: 0.5mm, 1mm, 1.5mm, 2mm, 3mm

Specifications:

  • Color: Pink

  • Degree of hardness: Shore 00-60

  • Electrically insulating: Yes (8KV/mm ASTM D149)

  • Flammability: V-0

  • Operating temperature: -100°C to +250°C

  • Size: 120 x 20 mm

  • Thickness: 1 mm

CategoryAccessories
SubcategoryThermal Pads
Brandthermal grizzly
ModelTG-MP8-120-20-10-2R
