Thermal Grizzly Minus Pad 8 120x20x1.0mm Thermal Pad - TG-MP8-120-20-10-1R | 450 EGP

Thermal Grizzly Minus Pad 8 120x20x1.0mm Thermal Pad - TG-MP8-120-20-10-1R

450 LE
Availability: In Stock only 5 item left
shipped by (sigma)
Point: 10

Seller : sigma

Viewed : 14 items

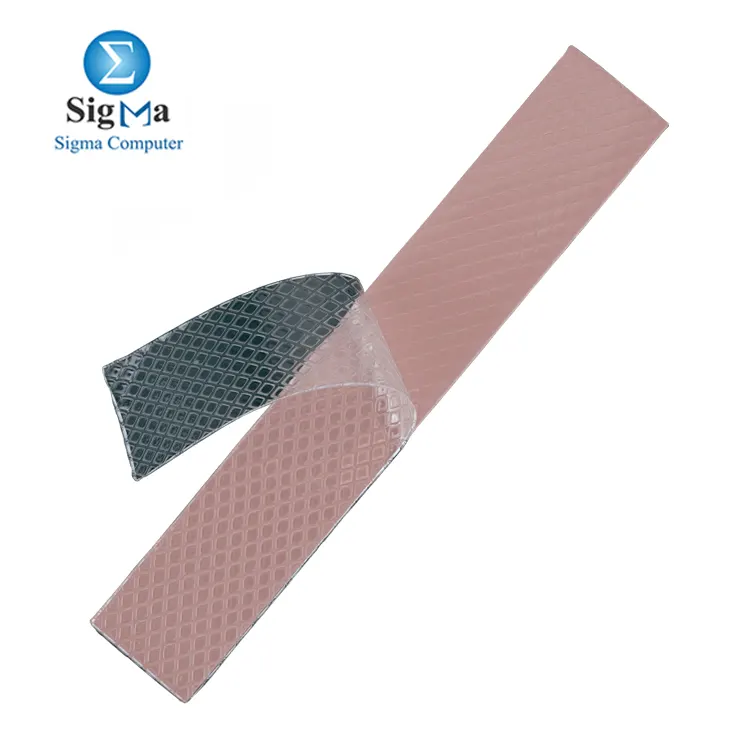

Thermal Grizzly Minus Pad 8 120x20x1.0mm:

  • High thermal conductivity

  • Elastic and flexible surface

  • Electrical insulation (8KV/mm ASTM D149)

  • Operating temperature: -100°C to +250°C

  • Size: 120 x 20 mm

  • Thickness: 1 mm

  • Flammability: V-0

  • Eco-friendly and RoHS-compliant

  • Color: Pink

  • Degree of Hardness: Shore 00-60


Product Name: Minus Pad 8
Product Number: S-TG-MP8-120-20-10-1R
EAN: 4260711990151
MPN: TG-MP8-120-20-10-1R

Product Information:

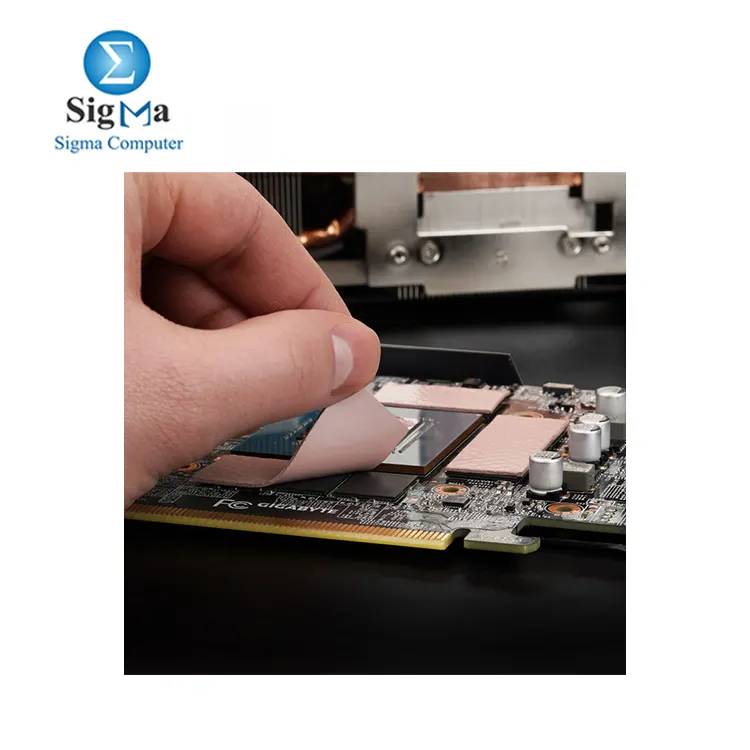

The high-performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest gaps between components. Available in a variety of different sizes and thicknesses.

The easy-to-process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.

The lightest of touches is enough to attach them optimally. All pads are eco-friendly and RoHS-compliant.

Key Features:

  • High thermal conductivity

  • High compressibility

  • Electrical insulation

  • Eco-friendly and RoHS-compliant

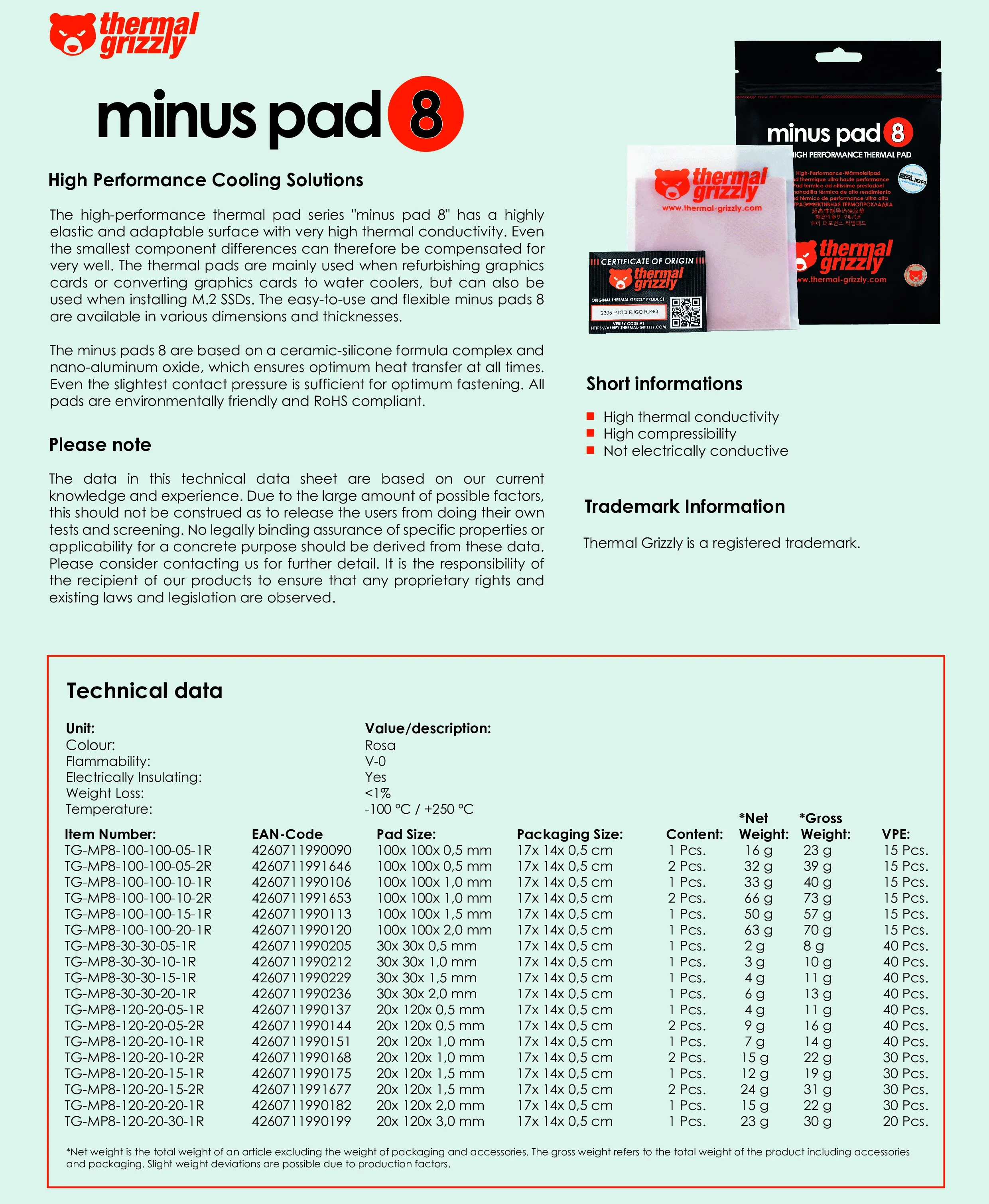

Specifications:

  • Color: Pink

  • Degree of Hardness: Shore 00-60

  • Electrically Insulating: Yes (8KV/mm ASTM D149)

  • Flammability: V-0

  • Operating Temperature: -100°C to +250°C

  • Size: 120 x 20 mm

  • Thickness: 1 mm

The Minus Pads 8 are available in sizes:

  • 30x30mm, 120x20mm, 100x100mm
    and in thicknesses of:

  • 0.5mm, 1mm, 1.5mm, 2mm, 3mm

CategoryAccessories
SubcategoryThermal Pads
Brandthermal grizzly
ModelTG-MP8-120-20-10-1R
