Thermal Grizzly Minus Pad 8 100x100x0.5mm Thermal Pad - TG-MP8-100-100-05-1R | 925 EGP

Thermal Grizzly Minus Pad 8 100x100x0.5mm Thermal Pad - TG-MP8-100-100-05-1R

925 LE
Availability: In Stock only 3 item left
shipped by (sigma)
Point: 10

Seller : sigma

Viewed : 15 items

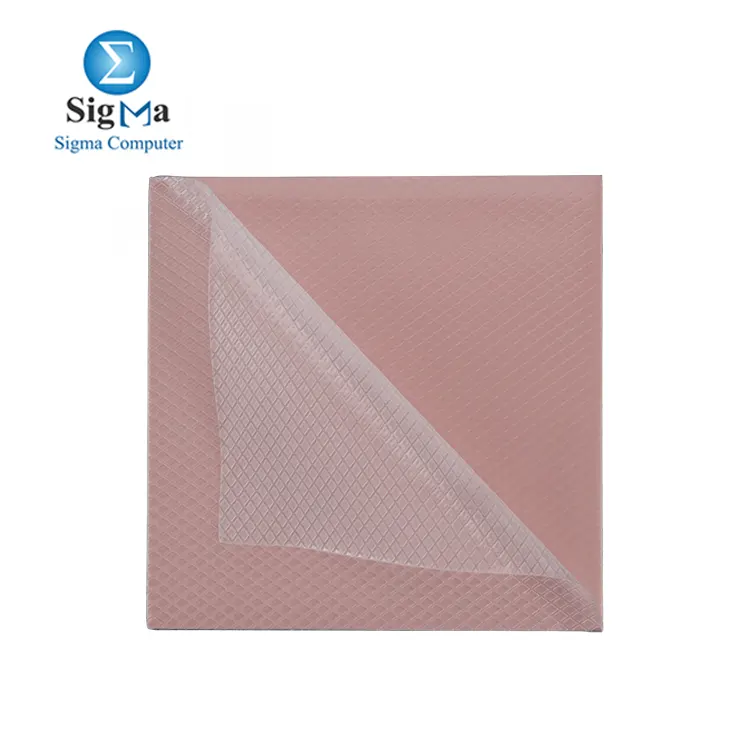

Thermal Grizzly Minus Pad 8 – 100x100x0.5mm

  • High thermal conductivity

  • High compressibility and flexibility

  • Electrically insulating (8KV/mm ASTM D149)

  • Made from ceramic silicon and nano aluminum oxide

  • Operating temperature: -100°C to +250°C

  • Flame retardant (V-0)

  • Eco-friendly and RoHS-compliant

  • Size: 100 x 100 mm

  • Thickness: 0.5 mm

  • Color: Pink


Thermal Grizzly Minus Pad 8 100x100x0.5mm Thermal Pad

Minus Pad 8
The high-performance heat-conducting pads of the Minus Pad 8 series have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can thus be compensated very well.

Product number: S-TG-MP8-100-100-05-1R
EAN: 4260711990090
MPN: TG-MP8-100-100-05-1R

Product information "Minus Pad 8 - 100 x 100 mm - 0.5 mm - 1 pc."
The high-performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.

The easy to process and flexible Minus Pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.

The lightest of touches is enough to attach them optimally. All pads are eco-friendly and RoHS-compliant.

  • High thermal conductivity

  • High compressibility

  • Electrical insulation

The Minus Pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0.5mm, 1mm, 1.5mm, 2mm, 3mm.

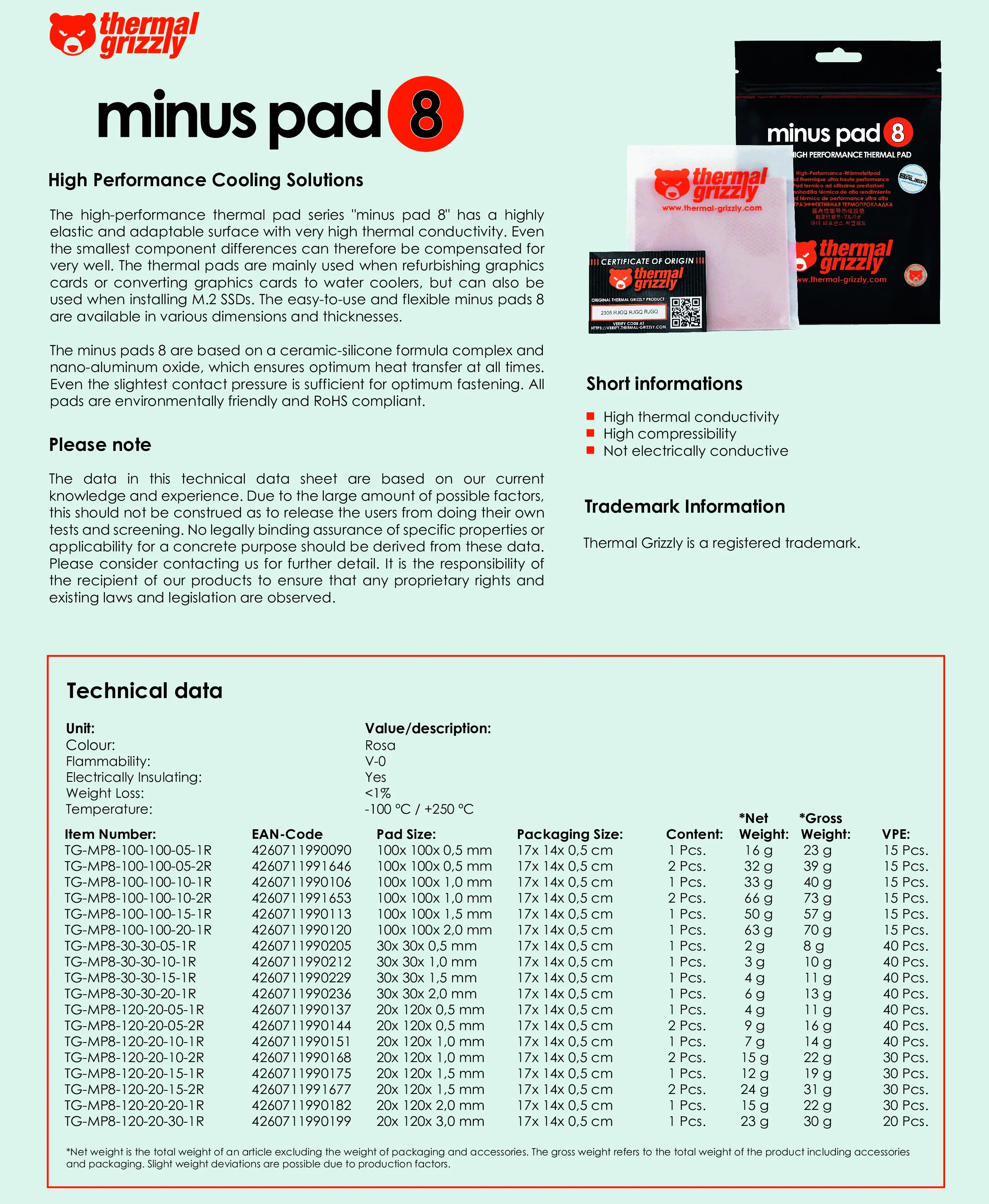

Specifications:
Color: Pink
Degree of hardness: Shore 00-60
Electrically insulating: Yes (8KV/mm ASTM D149)
Flammability: V-0
Operating temperature: -100°C to +250°C
Size: 100 x 100 mm
Thickness: 0.5 mm

CategoryAccessories
SubcategoryThermal Pads
Brandthermal grizzly
ModelTG-MP8-100-100-05-1R
