Thermal Grizzly Minus Pad 8 100x100x1.5mm Thermal Pad - TG-MP8-100-100-15-1R | 1300 EGP

Thermal Grizzly Minus Pad 8 100x100x1.5mm Thermal Pad - TG-MP8-100-100-15-1R

1300 LE
Availability: In Stock only 3 item left
shipped by (sigma)
Point: 10

Seller : sigma

Viewed : 28 items

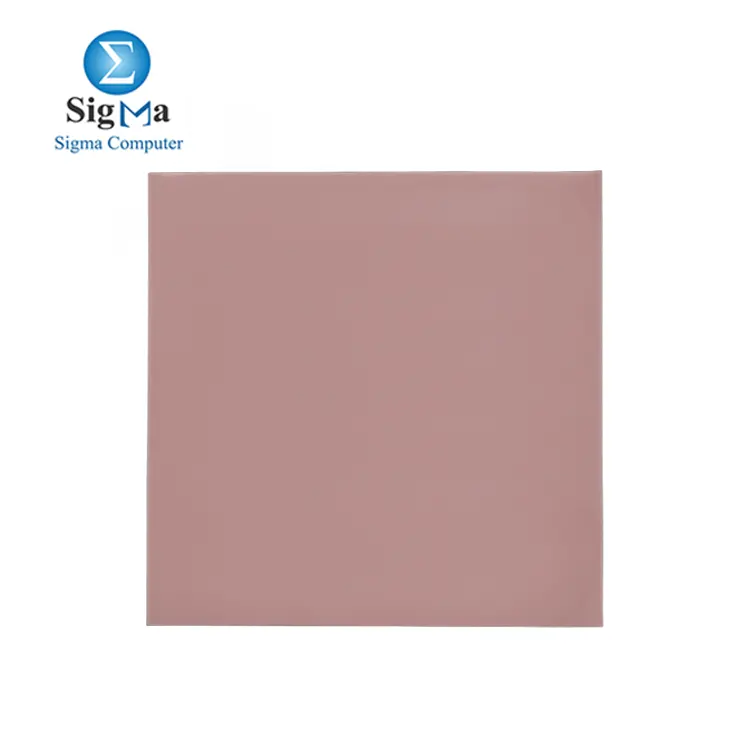

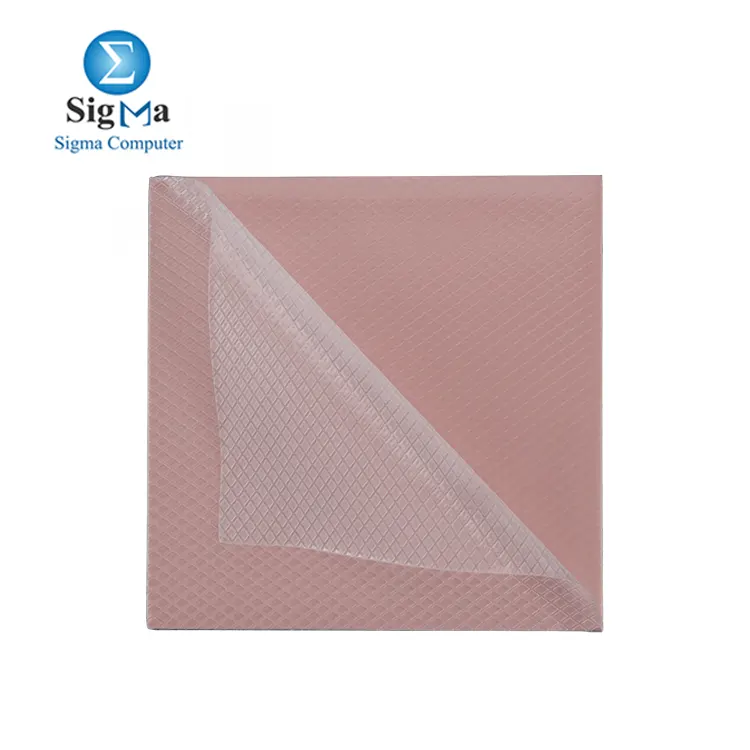

Thermal Grizzly Minus Pad 8 – 100x100x1.5mm

  • High thermal conductivity

  • High compressibility and flexibility

  • Electrically insulating (8KV/mm, ASTM D149)

  • Operating temperature: -100°C to +250°C

  • Material: Ceramic silicon & nano aluminum oxide

  • Size: 100 x 100 mm

  • Thickness: 1.5 mm

  • Color: Pink

  • RoHS compliant & eco-friendly

  • Flammability rating: V-0

  • Hardness: Shore 00-60


Thermal Grizzly Minus Pad 8 100x100x1.5mm Thermal Pad
Product Name: Minus Pad 8
Product Number: S-TG-MP8-100-100-15-1R
EAN: 4260711990113
MPN: TG-MP8-100-100-15-1R

Product Information:

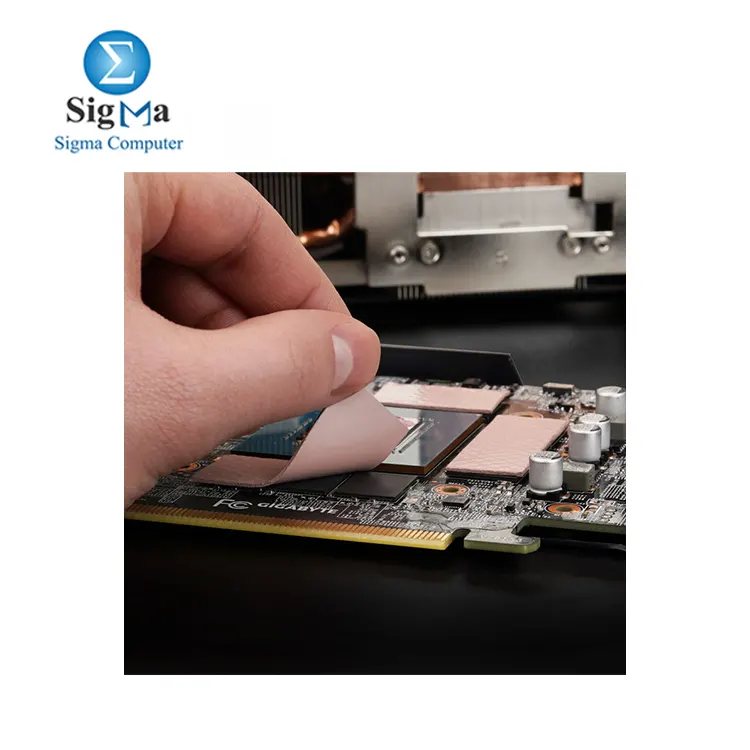

The high-performance thermal pads of the Thermal Grizzly Minus Pad 8 series have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can thus be compensated very well.

The easy-to-process and flexible Minus Pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer.

The lightest of touches is enough to attach them optimally. All pads are eco-friendly and RoHS-compliant.

Features:

  • High thermal conductivity

  • High compressibility

  • Electrical insulation

Available Sizes and Thicknesses:
30x30mm, 120x20mm, 100x100mm
Thicknesses: 0.5mm, 1mm, 1.5mm, 2mm, 3mm

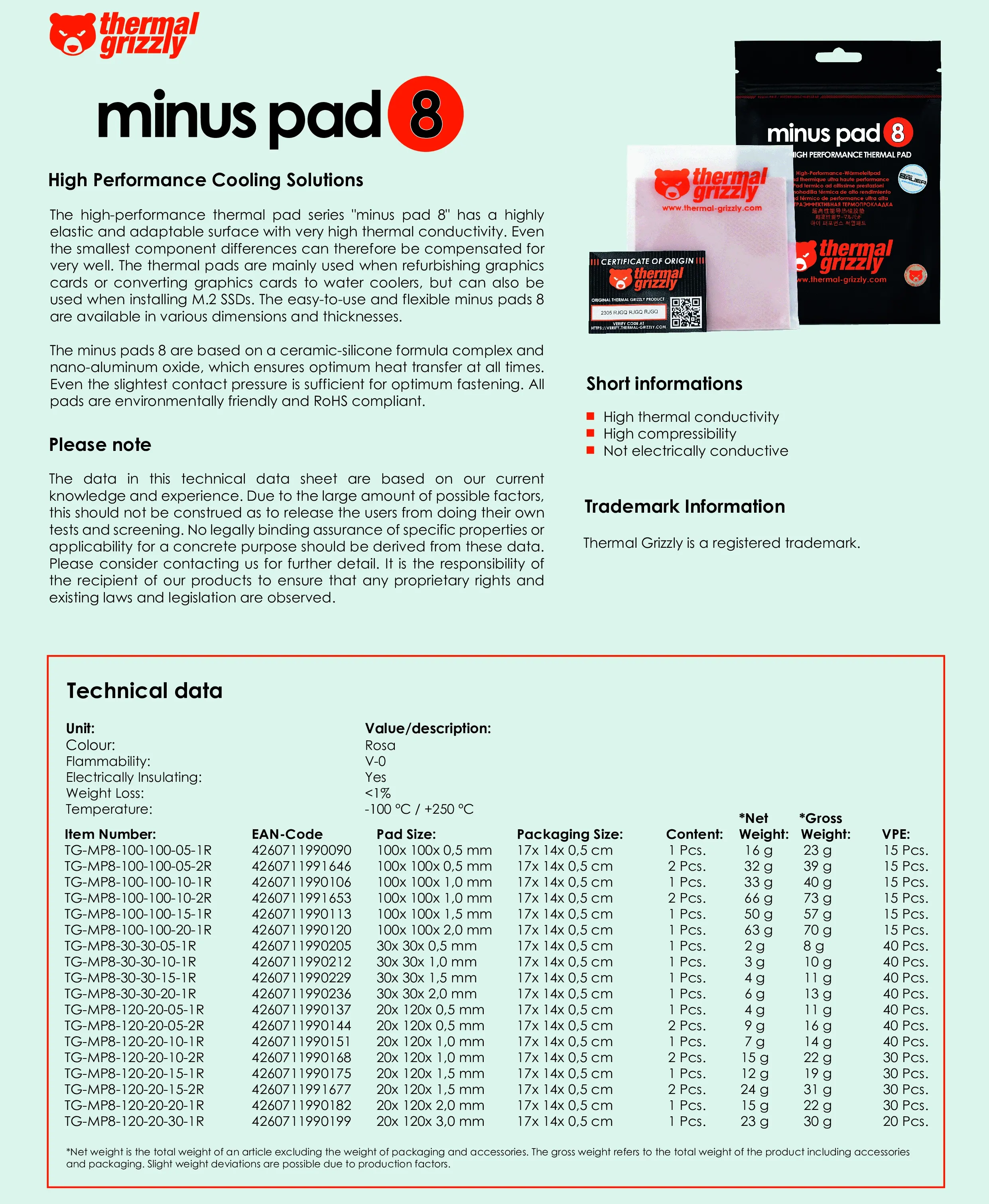

Specifications:

  • Color: Pink

  • Degree of Hardness: Shore 00-60

  • Electrically Insulating: Yes (8KV/mm ASTM D149)

  • Flammability: V-0

  • Operating Temperature: -100°C to +250°C

  • Size: 100 x 100 mm

  • Thickness: 1.5 mm

CategoryAccessories
SubcategoryThermal Pads
Brandthermal grizzly
ModelTG-MP8-100-100-15-1R
