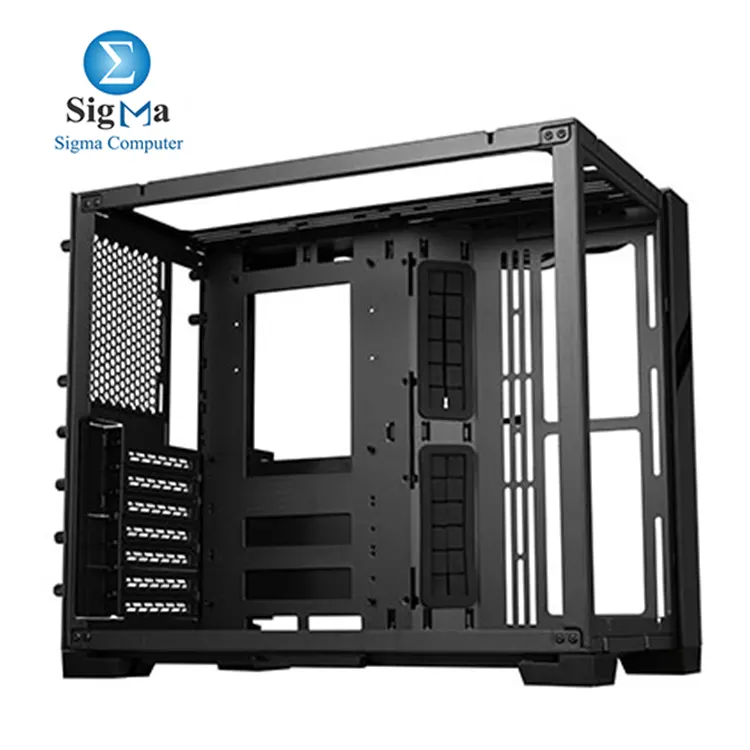

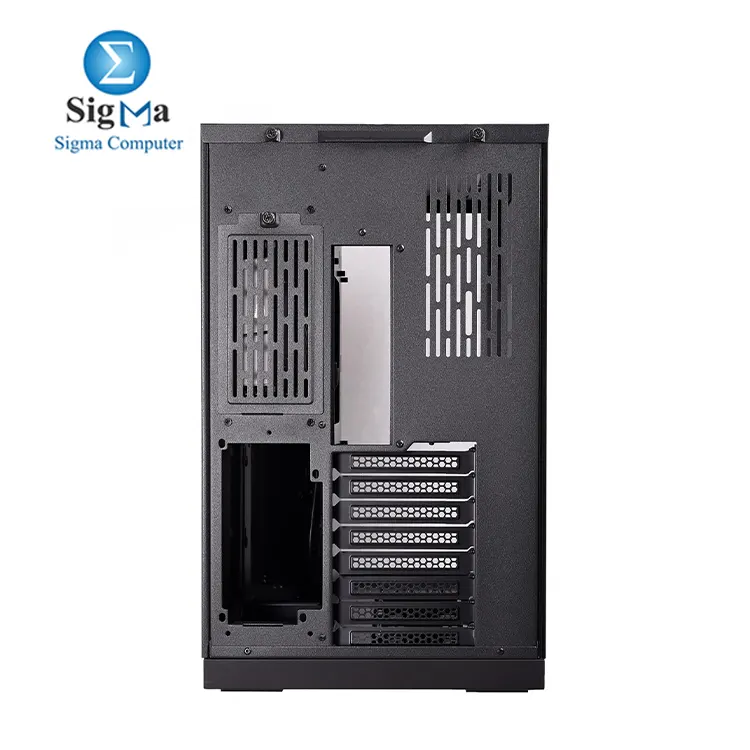

Lian Li O11 Dynamic Mini Compact ATX case with modular slots supports E-ATX up to 9 fans 360mm radiators 395mm GPU and SFX SFX-L PSU

Lian Li O11 Dynamic Mini Compact ATX case with modular slots supports E-ATX up to 9 fans 360mm radiators 395mm GPU and SFX SFX-L PSU

reviews | Write a review

2500 LE

shipped by (sigma)

Point: 20

Brand : LIAN LI

Model : O11DMINI-X BLACK

Seller : sigma

Viewed : 78 items

Lian Li O11 Dynamic Mini – Key Specs

Motherboard Support: E-ATX (up to 280mm), ATX, Micro-ATX, Mini-ITX

Dimensions: 420 x 269.5 x 380 mm

PSU Support: SFX / SFX-L

Materials: Steel, 4mm Tempered Glass, 2mm Aluminum

Fan Support: Up to 9 fans

Radiator Support: Top / Side / Bottom – up to 360mm

GPU Clearance: Up to 395mm

CPU Cooler Height: Up to 170mm

Drives: 2 x 2.5" SSD + 2 x 3.5" HDD/SSD

Expansion Slots: 3 / 5 / 7 (modular)

Front I/O: 2 x USB 3.0, 1 x USB-C, HD Audio

Dust Filters: Top, Bottom, Sides

Seller note

003238000000003

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Lian Li O11 DYNAMIC MINI
Think Big. Build Small.
O11D MINI adding to the O11 Dynamic series, the classic and modern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots / 5 slots / 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes, and up to 9 fans to cool the chassis.

DIMENSIONS: (D) 420mm x (W) 269.5mm x (H) 380mm
MOTHERBOARD: E-ATX (Max 280mm wide) / ATX / Micro-ATX / Mini-ITX
PSU: SFX / SFX-L
MATERIAL: Steel
4mm Tempered Glass
2mm Aluminum (top and left panel)

FAN SUPPORT:
Top: 3 x 120mm or 2 x 140mm
Side: 2 x 120mm or 2 x 140mm
Bottom: 3 x 120mm or 2 x 140mm
Rear: 1 x 120mm

RADIATOR SUPPORT:
Top: 360mm or 280mm or 240mm or can’t mount
Side: 240mm or 280mm
Bottom: 360mm or 280mm or 240mm

GPU LENGTH CLEARANCE: 395mm
CPU COOLER HEIGHT CLEARANCE: 170mm
VGA LENGTH: 370mm

DRIVES:
Right side: 2 x 2.5″ SSD
Back plate: 2 x 3.5″ HDD (or SSD)

EXPANSION SLOTS: 3 or 5 or 7 slots (depends on back panel)

IO PORTS:
2 x USB 3.0
1 x USB 3.1 TYPE-C
1 x HD Audio
Power Button

DUST FILTERS:
1 x Top
1 x Bottom
2 x Side

Category	Desktop
Subcategory	Computer Case
Brand	LIAN LI
Model	O11DMINI-X BLACK
