LIAN LI EDGE GOLD 1000W Fully modular ATX 3.1 PSU with 80 Gold efficiency PCIe 5.1 12V-2x6 support braided cables magnetic dust filter and detachable USB PWM hub.

reviews | Write a review

7300 LE

Availability: In Stock only 1 item left

shipped by (sff4$vjs2hf5kg)

Point: 15

Brand : LIAN LI

Model : EG1000G

Seller : sff4$vjs2hf5kg

Viewed : 165 items

LIAN LI EDGE 1000W GOLD PSU – Key Specs:

1000W 80+ GOLD Certified (ATX 3.1 / PCIe 5.1 Ready)

Fully Modular with Braided Sleeved Cables

PCIe 12V-2x6 Connector (600W)

Magnetic Dust Filter Included

Fanless Mode at Low Load

Japanese & German High-End Capacitors

Removable USB & PWM Fan Hub

10-Year Warranty on PSU, 2-Year on Hub

Available in Black & White

Seller note

001058836000006

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

LIAN LI EDGE GOLD 1000W PSU

Category: Power Supply
Tags: ATX PSU, braided-texture cables, Dual Chamber Cases, fan hub, LIAN LI PSU, pcie gen5 connector, pwm hub, removable dust filter, USB Hub
Wattage: 1000W
Form Factor: ATX 3.1
Efficiency: 80 PLUS GOLD / Cybenetics GOLD
Warranty: 10 Years (Power Supply), 2 Years (Edge Hub)
Colors Available: Black / White

KEY FEATURES:

L-shape design tailored for dual chamber cases
Fully modular design with braided-texture sleeved cables
80 PLUS Gold certified and Cybenetics Gold rated
PCIe 5.1 ready with 12V-2×6 alloy copper soldered terminals
Built with German EPCOS or high-end Japanese capacitors
Removable magnetic dust filter
Detachable modular USB and PWM fan hub
Longer cable lengths for improved cable management
Fanless mode at low loads for silent operation

EDGE HUB (Modular USB & PWM Fan Hub):

Fan PWM Hub: 6 × 4-pin connectors (2A each)
USB Hub: 4 internal USB 2.0 ports (supports up to 8 downstream, 2.5A total output)
Power Options:
- Connect directly to PSU
- Operate independently via PCIe 8-pin power
Magnetic mounting for easy placement
Supports USB signal via USB Type-A or USB-USB (9-pin)

MAGNETIC DUST FILTER:

66.9% high porosity mesh
Easy to remove and clean
Maintains airflow while preventing dust build-up

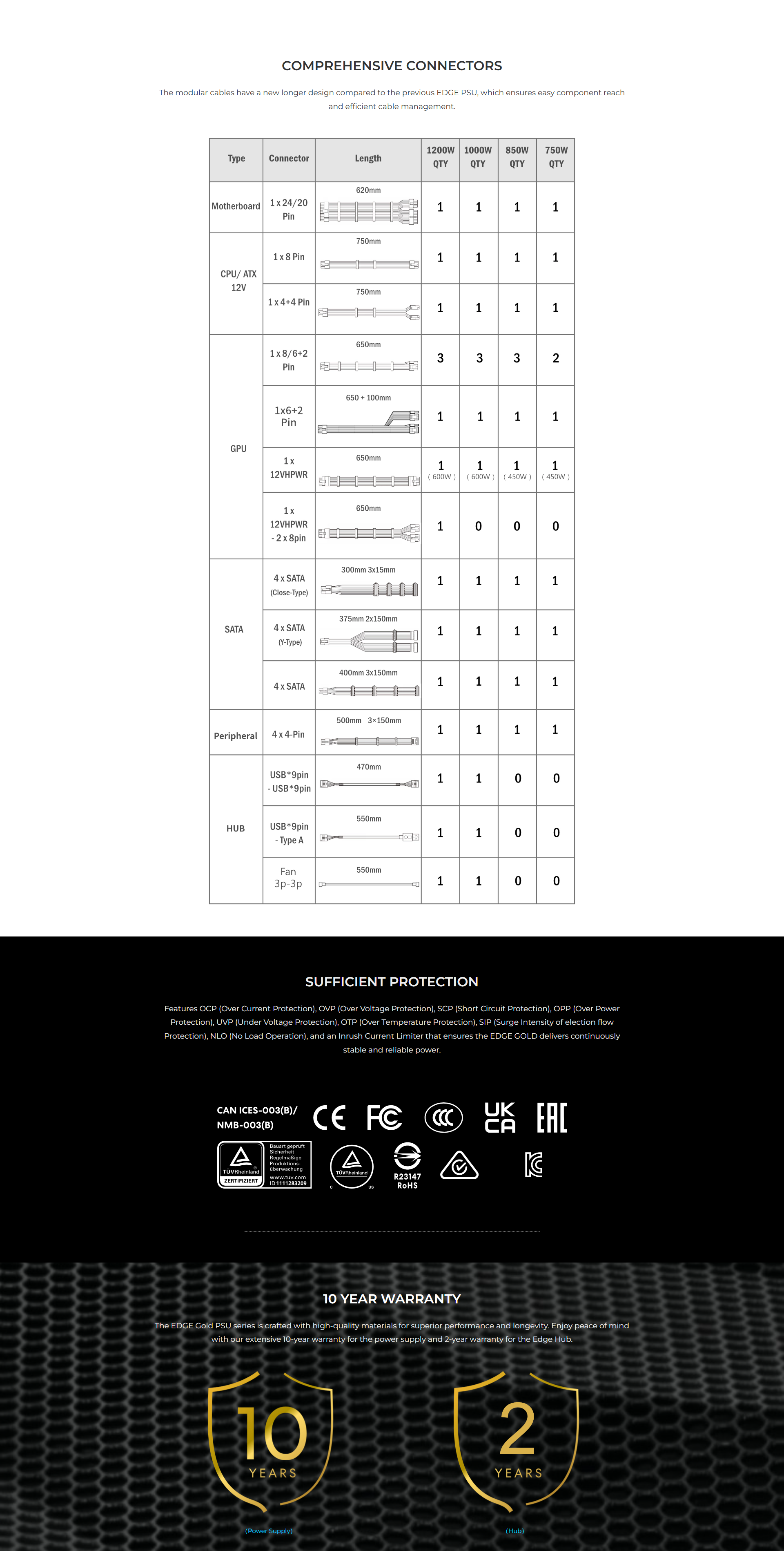

INCLUDED CONNECTORS:

1 × 24/20-pin MB (620mm)
1 × 8-pin CPU/ATX 12V (750mm)
1 × 4+4 pin CPU (750mm)
1 × 6+2 pin GPU (650mm + 100mm)
1 × SATA (300mm–15mm–15mm–15mm)
1 × SATA-Y (375mm–150mm–150mm)
1 × SATA (400mm–150mm–150mm–150mm)
4 × 4-pin peripheral (500mm–150mm–150mm–150mm)
1 × 12V – 2x6 600W (650mm)
2 × 6+2 pin GPU (650mm)
1 × USB 9pin – USB 9pin (470mm)
1 × USB 9pin – Type-A (550mm)

FAN & ACOUSTICS:

Fan Type: 120mm FDB (Fluid Dynamic Bearing)
Max Fan Speed: 2000 RPM
Noise Level: 30.9 dBA
Fanless Mode: Enabled under low load for silent operation

INTERNAL COMPONENTS:

Industrial-grade EPCOS capacitors (or equivalent Japanese capacitors)
Improved 12V-2x6 PCIe 5.1 connector:
- Gold-plated terminals
- Soldered wires
- 0.25mm thick copper
- Contact resistance < 1.5mΩ after 50 cycles

PROTECTION FEATURES:

OCP (Over Current Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
OPP (Over Power Protection)
UVP (Under Voltage Protection)
OTP (Over Temperature Protection)
SIP (Surge Intensity Protection)
NLO (No Load Operation)
Inrush Current Limiter
