LIAN LI EDGE GOLD 1000W White Fully modular ATX 3.1 PSU with 80 PLUS Gold efficiency PCIe 5.1 support L-shape design removable USB PWM hub and braided cables.

reviews | Write a review

7500 LE

Availability: In Stock only 1 item left

shipped by (sff4$vjs2hf5kg)

Point: 15

Brand : LIAN LI

Model : EG1000G

Seller : sff4$vjs2hf5kg

Viewed : 159 items

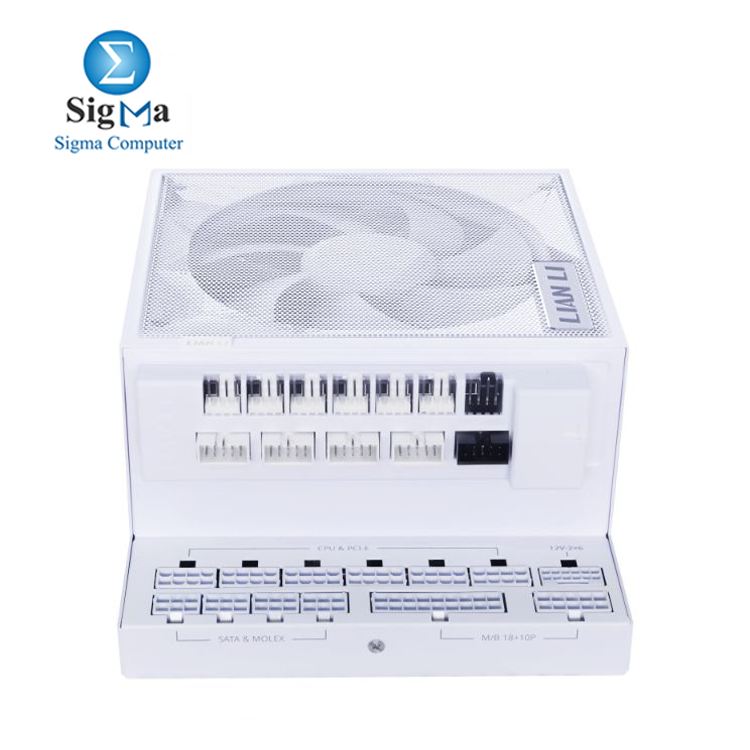

LIAN LI EDGE GOLD 1000W – White Edition (ATX 3.1, PCIe 5.1 Ready)
Key Features:

80 PLUS Gold certified, Cybenetics Platinum rated efficiency

Innovative L-shape design for dual-chamber cases

Fully modular braided cables with pre-installed cable combs

Includes removable magnetic dust filter

Detachable USB & PWM fan hub (6× PWM, 4× USB 2.0)

PCIe 5.1 ready with 12V-2×6 connector

Industrial-grade EPCOS capacitors

120mm FDB fan with fanless mode at low load

Extended cable lengths for easier cable management

Comprehensive protections: OVP, OCP, OTP, OPP, SCP, UVP

10-Year warranty (2 years for hub)

White color option available

Seller note

001058836000007

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

LIAN LI EDGE GOLD 1000W White

Category: Power Supply
Tags: ATX PSU, braided-texture cables, Dual Chamber Cases, fan hub, LIAN LI PSU, PCIe Gen5 connector, PWM hub, removable dust filter, USB Hub

THE “POWER” FOR DUAL CHAMBER CASES

The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.

FEATURES

80 PLUS GOLD Efficiency
Cybenetics Platinum Certified (EG1000G)
ATX 3.1 / PCIe 5.1 Ready
Removable Magnetic Dust Filter
Modular USB & PWM Hub (Detachable)
L-Shape Design tailored for dual chamber cases
Built with German top-end, industrial-grade EPCOS capacitors
Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
10 Years Warranty (Hub 2 Years)

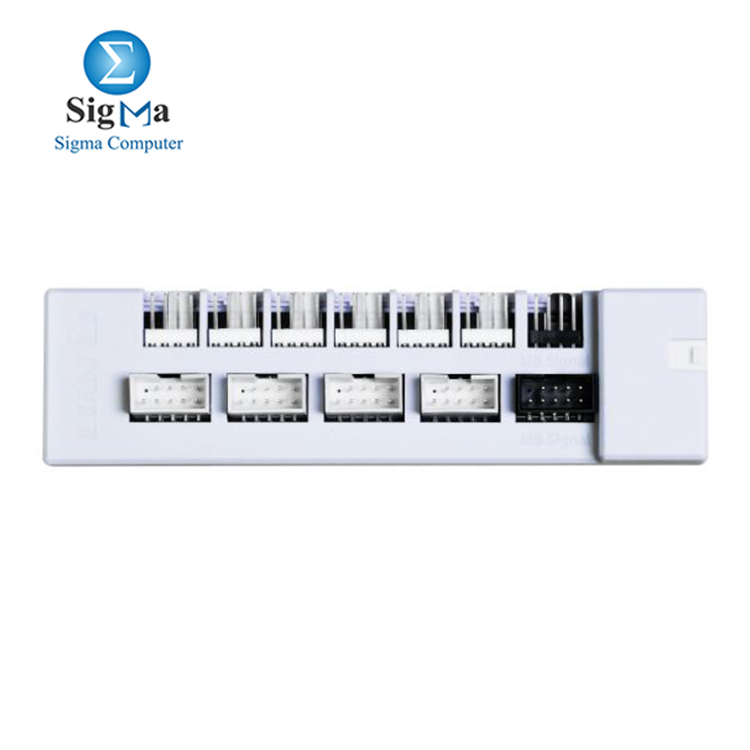

EDGE HUB: Modular USB & Fan PWM Hub

Fan Hub: 6 x 4-Pin headers, each supports up to 2A
USB Hub: 4 ports, supports up to 8 downstream connections (total output 2.5A)
Mounting: Magnetic base for flexible placement inside the case
Power: Can be powered directly via PSU or separately via PCIe 8-pin cable
USB Connection: Includes USB 9-pin to USB 9-pin and USB 9-pin to USB Type-A cables

CABLE MANAGEMENT & DESIGN

Longer Cable Reach: Extended length for improved flexibility in both dual-chamber and tower cases
L-Shape Orientation: Outward-facing connector layout for improved accessibility
Braided-Texture Sleeved Cables: All major cables with pre-installed cable combs for a cleaner build

EFFICIENCY & COOLING

Efficiency: 91.24% Max
Fan Type: 120mm FDB Fan
Fan Speed: Up to 2400 RPM
Fan Noise: 39.3 dBA
Zero RPM Mode: Fan stays off at low load for silent operation
Open Mesh Structure: Enhanced airflow for silent and efficient cooling

PCIE5.1 12V-2×6 CONNECTOR

In-house R&D Dual-color Design
Copper Alloy Soldered Terminals
Gold-Plated Contacts
0.25mm Thick Copper Terminals
Low Resistance (≤1.5mΩ after 50 cycles)
Includes Additional Dual 8-Pin to 12V-2×6 Cable

INDUSTRIAL GRADE COMPONENTS

German EPCOS or equivalent Japanese capacitors
High tolerance and durability under harsh conditions

PROTECTIONS

OCP / OVP / OTP / OPP / SCP / UVP / SIP / NLO / Inrush Current Limiter

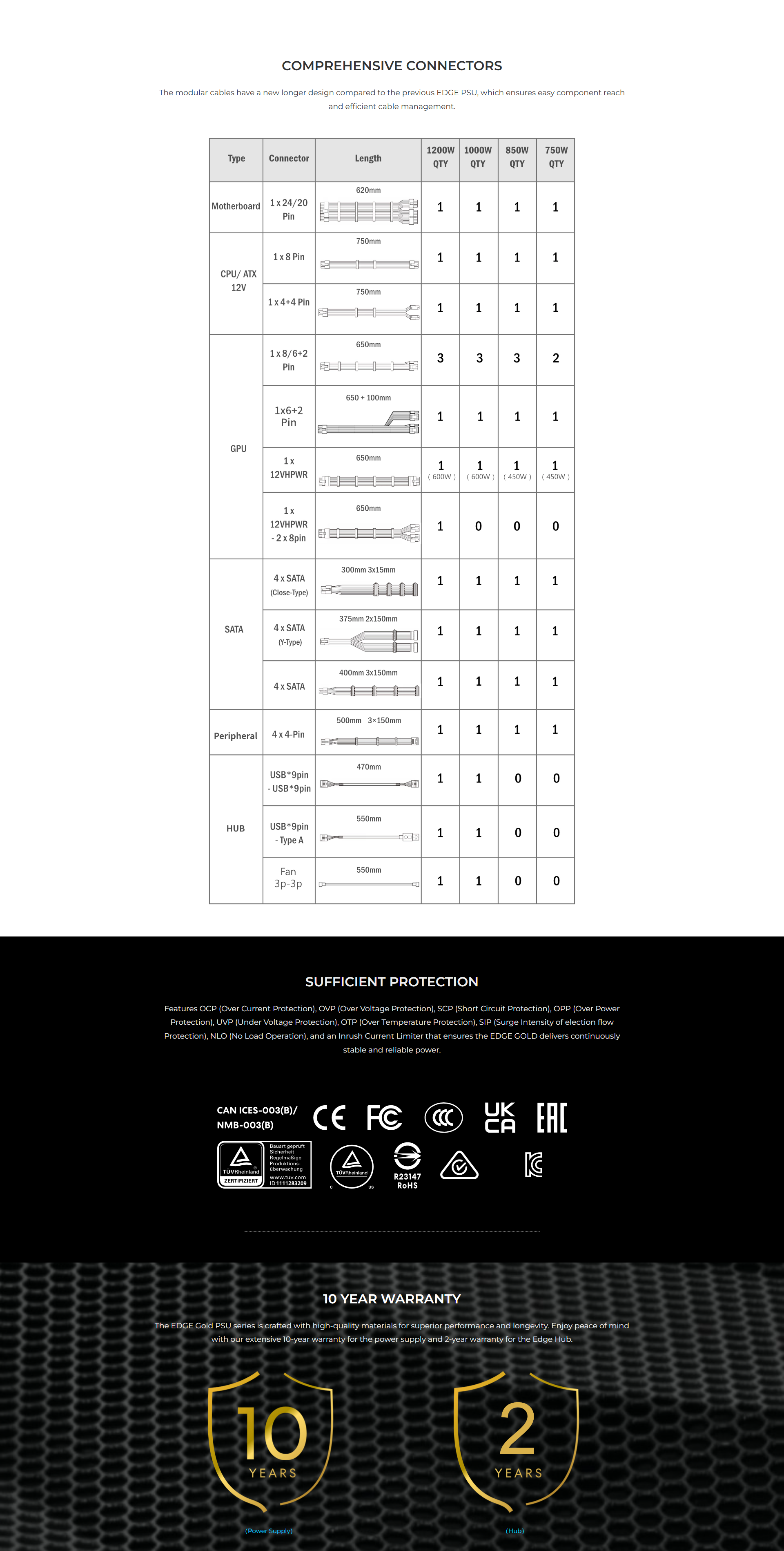

CONNECTORS (Edge Gold 1000W White)

1 x 24/20-Pin Motherboard Connector (620mm)
1 x 8/4+4 Pin CPU/ATX 12V Connector (750mm)
1 x 4+4 Pin CPU/ATX 12V Connector (750mm)
1 x 6+2 Pin PCIe Connector (650mm + 100mm)
4 x SATA Connector (300mm-15mm-15mm-15mm)
4 x Y Type SATA Connector (375mm-150mm-150mm-150mm)
4 x SATA Connector (400mm-150mm-150mm-150mm)
4 x 4-Pin Peripheral Connector (500mm-150mm-150mm-150mm)
1 x 12V–2X6 600W Connector (650mm)
USB9pin – USB9pin Connector (470mm)
USB*9pin – Type A Connector (550mm)

TECHNICAL SPECIFICATIONS

Model: EG1000G
Color: White
Form Factor: ATX 3.1
Material: Steel
Dimensions: 182 x 86 x 150 mm
Max. DC Output: 1000W
Combined +3.3V & +5V: 120W
Combined +12V: 996W
Input Voltage: 100–240Vac
Input Frequency Range: 50–60Hz
Current Draw: 12–6A
PFC: Active PFC (PF > 0.90 @ full load)
