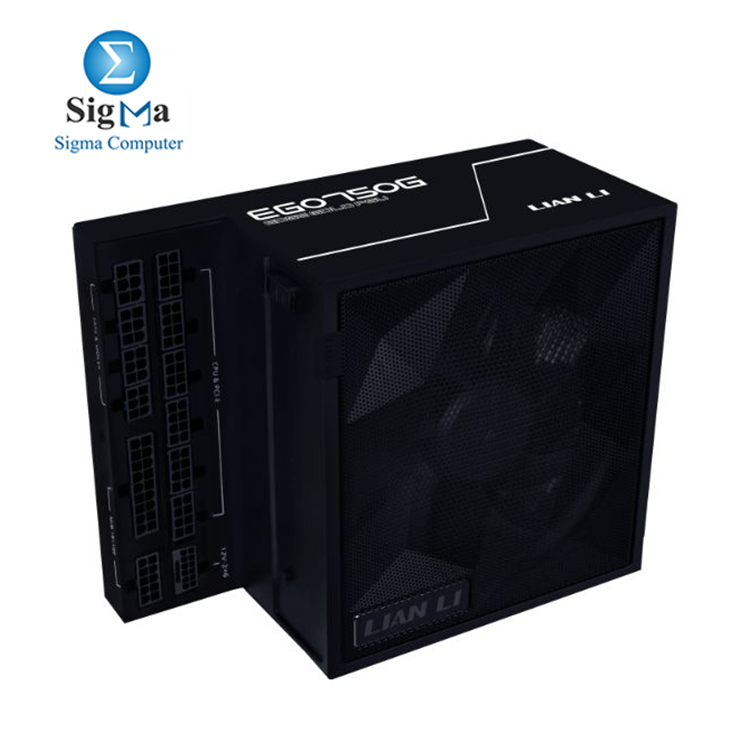

Lian Li EDGE GOLD 750W
-
L-shape design tailored for dual chamber cases
-
80 PLUS Gold efficiency
-
PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
-
Detachable USB hub with 4 internal USB 2.0 headers and 6 PWM headers (Note: USB hub not included in 750W version)
-
Removable magnetic fan dust filter
-
Built with German top-end, industrial-grade EPCOS capacitors
-
Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
Category: Power supply
Tags: ATX PSU, braided-texture cables, Dual Chamber Cases, fan hub, LIAN LI PSU, pcie gen5 connector, pwm hub, removable dust filter, USB Hub
Available Wattage:
750W / 850W / 1000W / 1200W
THE “POWER” FOR DUAL CHAMBER CASES
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.
80 PLUS GOLD certified.

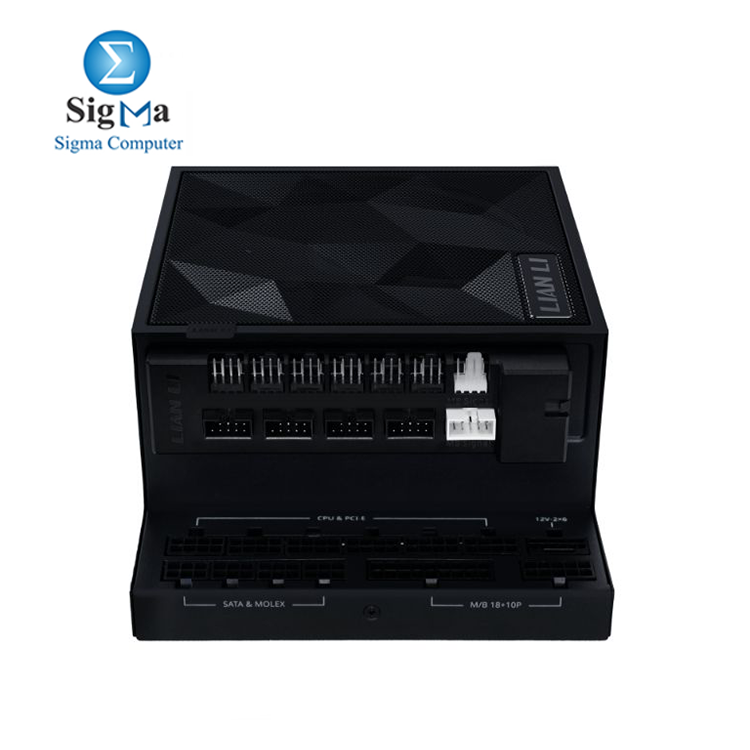

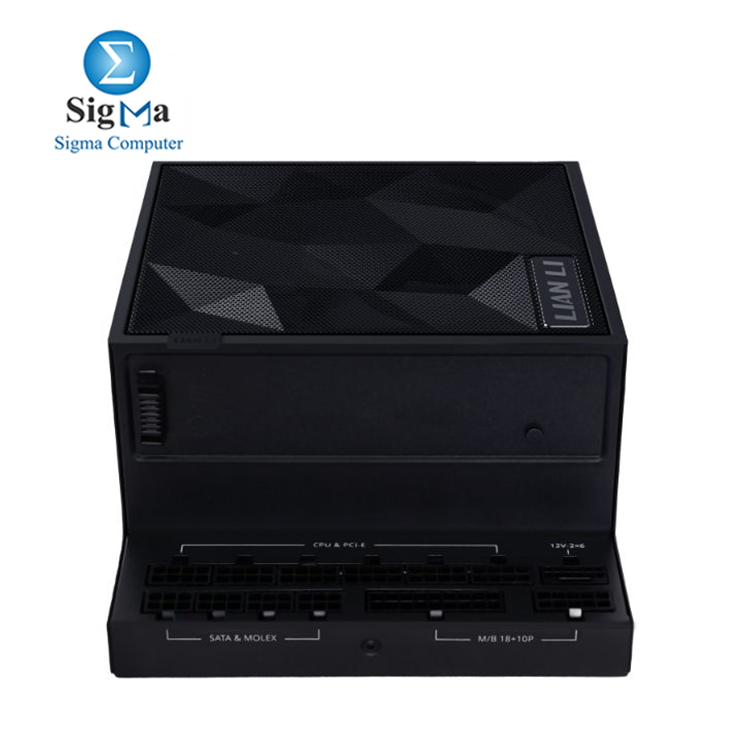

L-SHAPE DESIGN
Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
CONVENIENT CABLE MANAGEMENT
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
LONGER CABLE REACH FOR VERSATILE BUILDS
The EDGE Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.
EFFICIENCY LEVEL CERTIFIED
Achieving the 80 PLUS Gold, Cybenetics Gold, and PPLP Gold certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. The 120 mm PWM fan operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI’s in-house R&D designed a high-quality 12V-2×6 dual-color connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
-
Dual-color shell for confirming secure connections
-
Added gold plating to prevent short circuits
-
Soldered wire and terminal connection for current stability
-
Increased copper thickness to 0.25mm for lower contact resistance
-
Terminal maintains contact resistance below 1.5mΩ after 50 plug/pull cycles, enhancing long-term reliability.
BRAIDED-TEXTURE SLEEVED CABLES FOR A CLEAN BUILD
The PSU comes equipped with all cables featuring a braided texture. The 20+4 pin, CPU, PCIe 6+2 pin, and 12V-2×6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
INDUSTRIAL GRADE CAPACITORS
The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity Protection), NLO (No Load Operation), and an Inrush Current Limiter that ensures the EDGE GOLD delivers continuously stable and reliable power.
10 YEAR WARRANTY
The EDGE Gold PSU series is crafted with high-quality materials for superior performance and longevity. Enjoy peace of mind with our extensive 10-year warranty for the power supply.
SPECIFICATIONS – EDGE GOLD 750W (EG0750G)
-
Dimensions: 182 mm (D) x 86 mm (W) x 150 mm (H)
-
Power Supply Design: Fully modular
-
Color: Black
-
Material: Steel
-
Form Factor: ATX 3.1
-
Certification: 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
-
Max. DC Output: 750W
-
Combined +3.3V & +5V: 120W
-
Combined +12V: 744W
-
Input Voltage: 100-240Vac
-
Input Frequency Range: 9-4.5A 50-60Hz
-
PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
-
Efficiency: 90.52% MAX
-
Protective Circuits: OCP / OVP / OTP / OPP / SCP / UVP
-

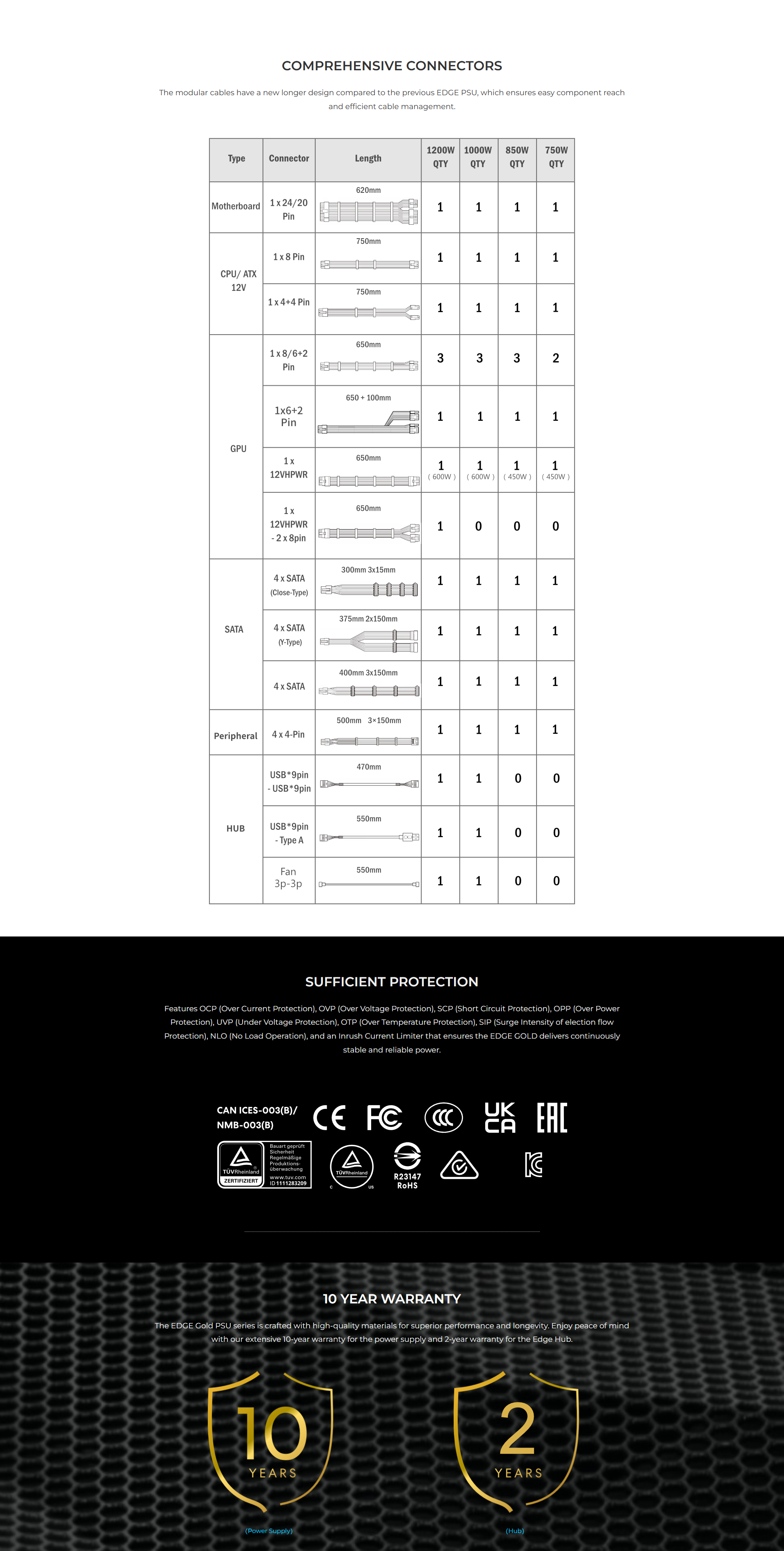

Connectors:
-
1 x 24/20-Pin motherboard connector (620mm)
-
1 x 8 pin CPU/ATX 12V connector (750mm)
-
1 x 4+4 Pin CPU connector (750mm)
-
1 x 6+2 Pin GPU connector (650mm + 100mm)
-
1 x SATA connector (300mm-15mm-15mm-15mm)
-
1 x SATA-Y connector (375mm-150mm-150mm)
-
1 x SATA connector (400mm-150mm-150mm-150mm)
-
4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm)
-
1 x 12V – 2X6 450W connector (650mm)
-
2 x 6+2 Pin GPU connector (650mm)
-
Fan Type: 120mm FDB Fan
-
Fan Speed: 2000 RPM
-
Fan Noise Level: 30.9 dBA
-
Warranty: 10 Years
