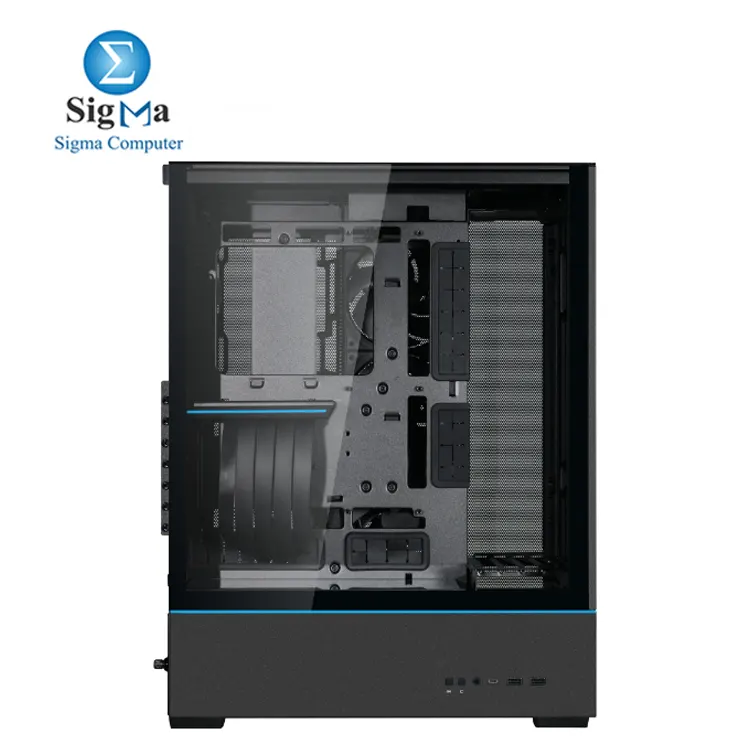

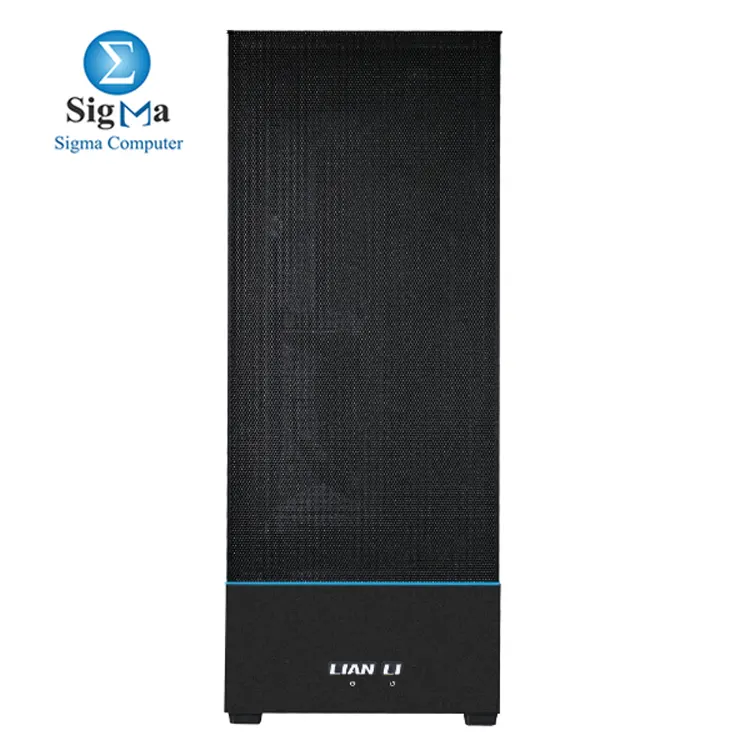

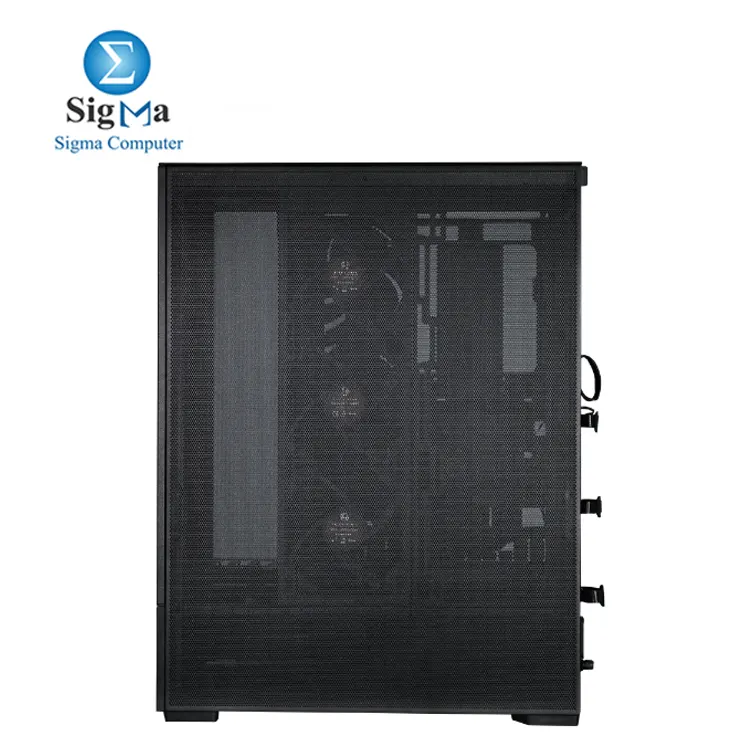

Lian Li SUP01: 45L compact stand-up case with front-facing GPU, PCIe 4.0 riser, ARGB lighting, supports ATX motherboards, up to 360mm AIO, and includes 3x120mm fans | 7500 EGP

Lian Li SUP01 45L compact stand-up case with front-facing GPU PCIe 4.0 riser ARGB lighting supports ATX motherboards up to 360mm AIO and includes 3x120mm fans

7500 LE
Availability: In Stock only 2 item left
shipped by (sigma)
Point: 30

Brand : LIAN LI brand

Model : SUP01X BLACK

Seller : sigma

Viewed : 68 items

Lian Li SUP01 – Key Features

  • 45L compact stand-up platform design for minimal footprint

  • Front-facing GPU mount with adjustable brackets

  • Dual-chamber layout for optimal airflow and thermal performance

  • Includes 510mm PCIe 4.0 riser cable with ARGB lighting cover

  • 3 x 120mm side fans pre-installed for GPU exhaust

  • Supports up to 360mm/280mm AIO (max pump height: 88.2mm)

  • Supports ATX / M-ATX / ITX and ATX back-connect motherboards

  • Max GPU length: 400mm | Max PSU length: 220mm

  • Fan support: Up to 6 x 120mm side fans + 1 x 120mm rear fan

  • Drive support: Up to 4 x 2.5” SSDs or 2 x 3.5” HDDs

  • I/O: 2 x USB 3.0, 1 x USB-C, Mic, Light control buttons

  • Tempered glass side panel, magnetic dust filters

  • Dimensions: 403.45 x 212 x 534 mm

  • 1-Year Warranty


Lian Li SUP01

  • 45-liter stand-up platform case for a minimal footprint

  • Front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach

  • Independent chambered direct cooling design that brings the most effective heat dissipation for all core components

  • Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip

  • Includes an exterior 120mm fan mounting bracket at the rear to push fresh air into the chassis

  • Includes 3 x 120mm performance fans at the side for GPU exhaust

  • Supports 360mm/280mm AIO with a maximum pump height of 88.2mm

  • Supports standard motherboards up to ATX size and back-connect ATX motherboards

CASE TYPE: Small Tower Case
DIMENSION: (D) 403.45mm x (W) 212mm x (H) 534mm
(D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet)
CAPACITY: 44.8L
MATERIAL: Steel, 4.0mm Tempered Glass
RISER CABLE TYPE: PCIE 4.0
MOTHERBOARD SUPPORT: ATX / M-ATX / ITX, ATX Back Connect
PSU SUPPORT: ATX (Max 220mm)
INCLUDED FAN: 3 x 120mm PWM
FAN SUPPORT:
Side 1: 3 x 120mm
Side 2: 3 x 120mm or 2 x 140mm
Rear exterior: 1 x 120mm
RADIATOR SUPPORT:
Side 2: 360mm or 280mm
DRIVE SUPPORT:
Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD
Above PSU shroud: 2 × 2.5” SSD
GPU LENGTH CLEARANCE: Max 400mm
CPU HEIGHT CLEARANCE: Max 88.2mm
EXPANSION SLOTS:
7 (for low profile card)
4 (for standard profile card with extension cable)
I/O PORTS:
1 x Power Button
1 x Reset Button
2 x USB 3.0 TYPE-A
1 x USB 3.1 TYPE-C
1 x Mic
1 x Light Color Button (C)
1 x Light Mode Button (M)
DUST FILTER:
1 x bottom tray
1 x front magnetic
1 x top magnetic
WARRANTY: 1 year

CategoryDesktop
SubcategoryComputer Case
BrandLIAN LI
ModelSUP01X BLACK
