Lian Li EDGE 1300W PSU L-shape design 80 PLUS Platinum built-in USB hub PCIe 5.1 full modular cables German capacitors 10-year warranty.

reviews | Write a review

12200 LE

Availability: In Stock only 1 item left

shipped by (sff4$vjs2hf5kg)

Point: 15

Brand : LIAN LI

Viewed : 161 items

Lian Li EDGE 1300W PSU features an L-shape design for dual-chamber cases, 80 PLUS Platinum efficiency, built-in USB hub with 4 internal USB 2.0 headers, full modular sleeved cables, PCIe 5.1 support, German EPCOS capacitors, and a quiet 120mm PWM fan with 10-year warranty.

Seller note

001058836000008

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

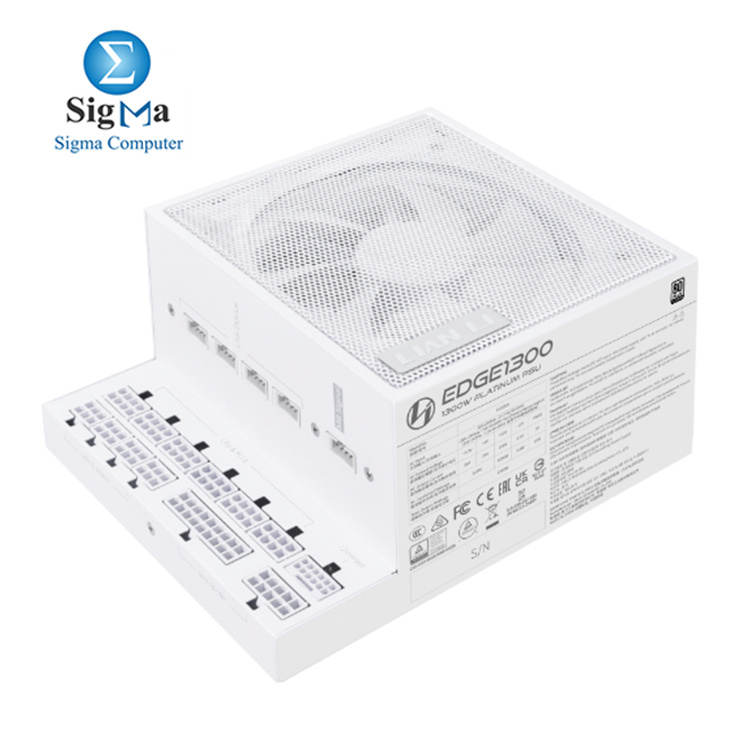

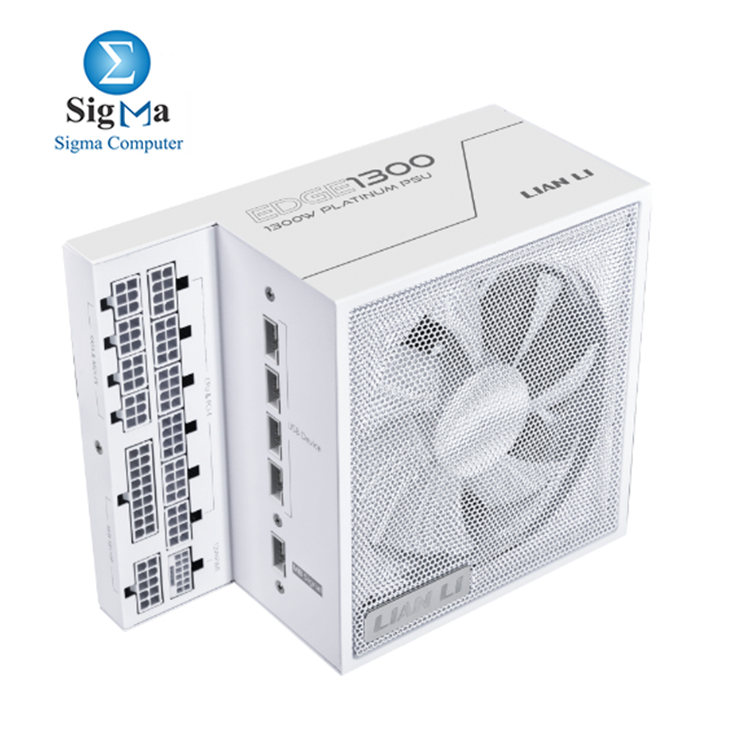

LIAN LI EDGE 1300W Power Supply

THE “POWER” FOR DUAL CHAMBER CASES
The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.

L-SHAPE DESIGN FOR DUAL CHAMBER CASES
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU’s L-shape design is ideal for vertical installation in the second chamber. Connectors are reoriented outward for easier cable management and a clean build.

BUILT-IN USB EXPANSION HUB
Includes 4 × 9-pin internal USB headers functioning as a 1-to-7 USB hub. Offers uninterruptible power for connected devices even when the PC is off. Each port supports 500mA current.

CONNECT TO USB DEVICES
Port #1 provides 1 USB signal, ports #2/3/4 provide 2 USB signals each. Supports up to 7 USB devices when using 1-to-2 splitters. TL LCD and TL devices recommended on ports #2/3/4.

CONNECT TO MOTHERBOARD
Two signal connection options:

Standard 9-pin USB to main chamber
USB Type-A to rear I/O of motherboard

EFFICIENCY & CERTIFICATION
Certified 80 PLUS Platinum, Cybenetics Platinum, and PPLP Platinum. Ensures high efficiency, lower heat output, and reliable performance.

ATX 3.0 & 3.1 COMPLIANT
Fully compatible with the latest ATX standards for next-gen hardware support.

PCIE 5.1 SUPPORT
In-house developed 12V-2×6 alloy copper soldered terminals. Gold-plated dual-color connectors with low contact resistance and secure locking.

CAPACITORS & POWER DELIVERY
Features German EPCOS industrial-grade capacitors, LLC topology, and Active PFC for stable and clean power delivery.

COOLING PERFORMANCE
120mm PWM fan with open mesh design ensures efficient airflow with minimal noise. Supports semi-fanless mode at low loads.

SLEEVED MODULAR CABLES
Full modular design with high-quality sleeved cables including combs for clean routing.
Included cables:

1 × 24/20-pin (500mm)
2 × 8/4+4 CPU (550mm)
4 × 8/6+2 PCIe (550mm)
1 × 12V-2×6 (550mm)
1 × 12V-2×6 to 2×8pin (550mm)
4 × Molex (500mm-150mm-150mm-150mm)
4 × SATA (400mm-150mm-150mm-150mm)
4 × SATA (300mm-15mm-15mm-15mm)
4 × Y-type SATA (400mm-125mm*2)
1 × USB 9pin to 9pin (350mm)
1 × USB 9pin to Type-A (550mm)

SATA POWER OPTIONS

Y-type SATA for flexibility
Close-type SATA for tidy layouts

SAFETY & PROTECTION FEATURES
Includes OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLP, and inrush current limiter for maximum stability and safety.

TECH SPECS (EDGE 1300W)

Power: 1300W
Input: 100–240Vac, 15–7.5A, 50–60Hz
Efficiency: 92.39% Max
Fan Speed: 2400 RPM
Fan Noise: 33.61 dBA
Warranty: 10 Years

Category	Desktop
Subcategory	Power Supply
Brand	LIAN LI
Model	EG1300 WHITE
